Connecting the processor fan heat sink cable, Removing the processor, Installing the processor fan heat sink – Intel D865GBF User Manual
Page 31: Installing a processor
Installing and Replacing Desktop Board Components
31
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the processor fan connector (see Figure 6).
OM15229

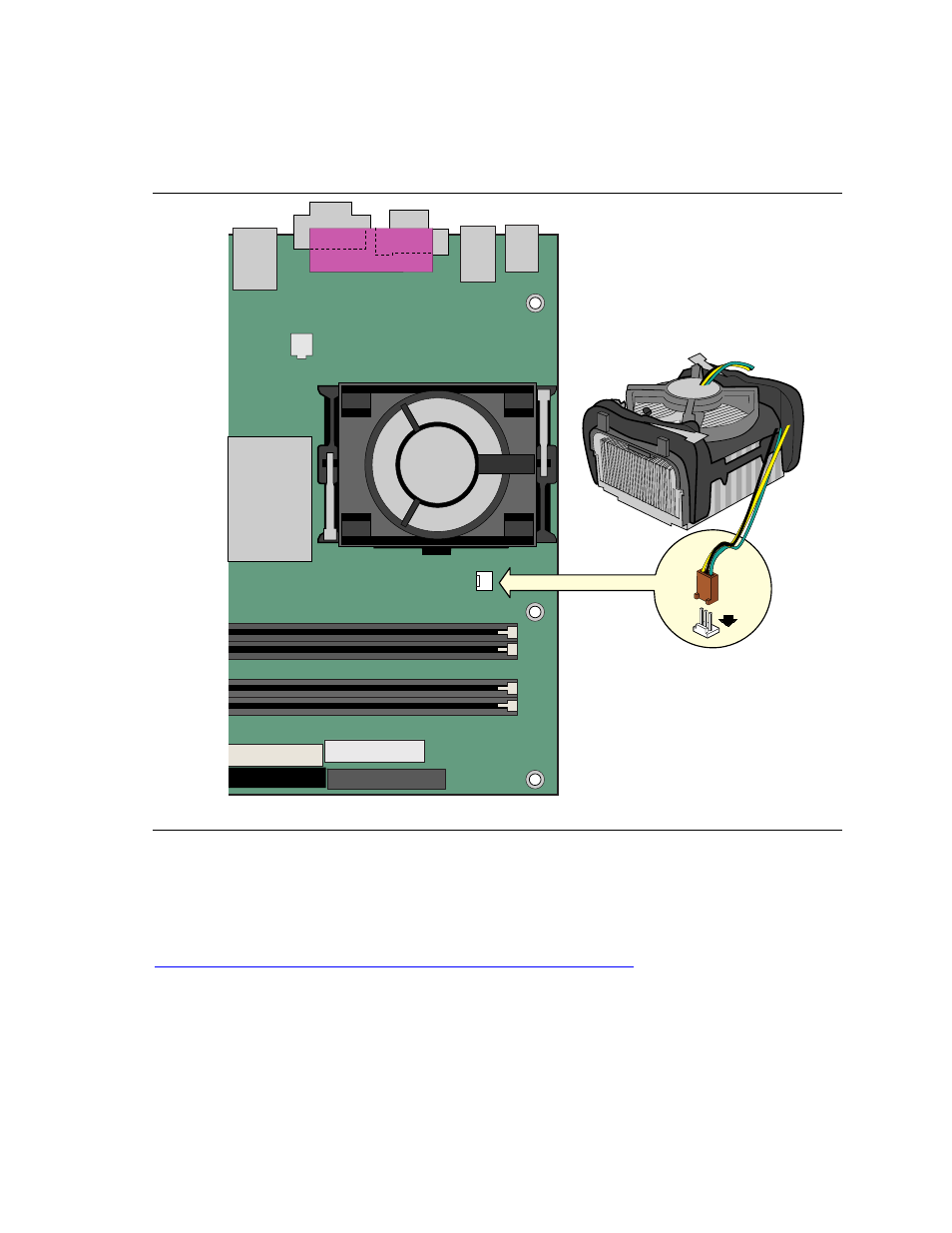

Figure 6. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector
Removing the Processor
For instruction on how to remove the processor fan heat sink and processor, refer to the processor
installation manual or the Intel World Wide Web site at:
