Diagram 10 – Impex MXM-5 User Manual

Page 22

STEP-10 (See Diagram 10)

A.) Attach the Leg Developer (#7) to the Leg Developer Holder (#2). Secure it with one M10 x

3 1/8” Allen Bolt (#90), two

∅

¾” Washers (#82), and one M10 Aircraft Nut (#99). Do not

over tighten the nut and bolt. Make sure the Leg Developer is able to swivel.

B.) Insert three Foam Tubes (#15) halfway through the holes on the Leg Developer Holder and

Leg Developer. Push six Foam Rolls (#53) onto the Tubes. Plug six Foam Roll End Caps
(#55) into the Tubes.

C.) Attach an Olympic Sleeve (#59) onto the weight post on the Leg Developer. Attach a

Spring Clip (#76) to the Sleeve.

D.) Attach a Curl Bar Holder Frame (#108) to the Leg Developer. Secure it with a L-shaped

Pin (#107).

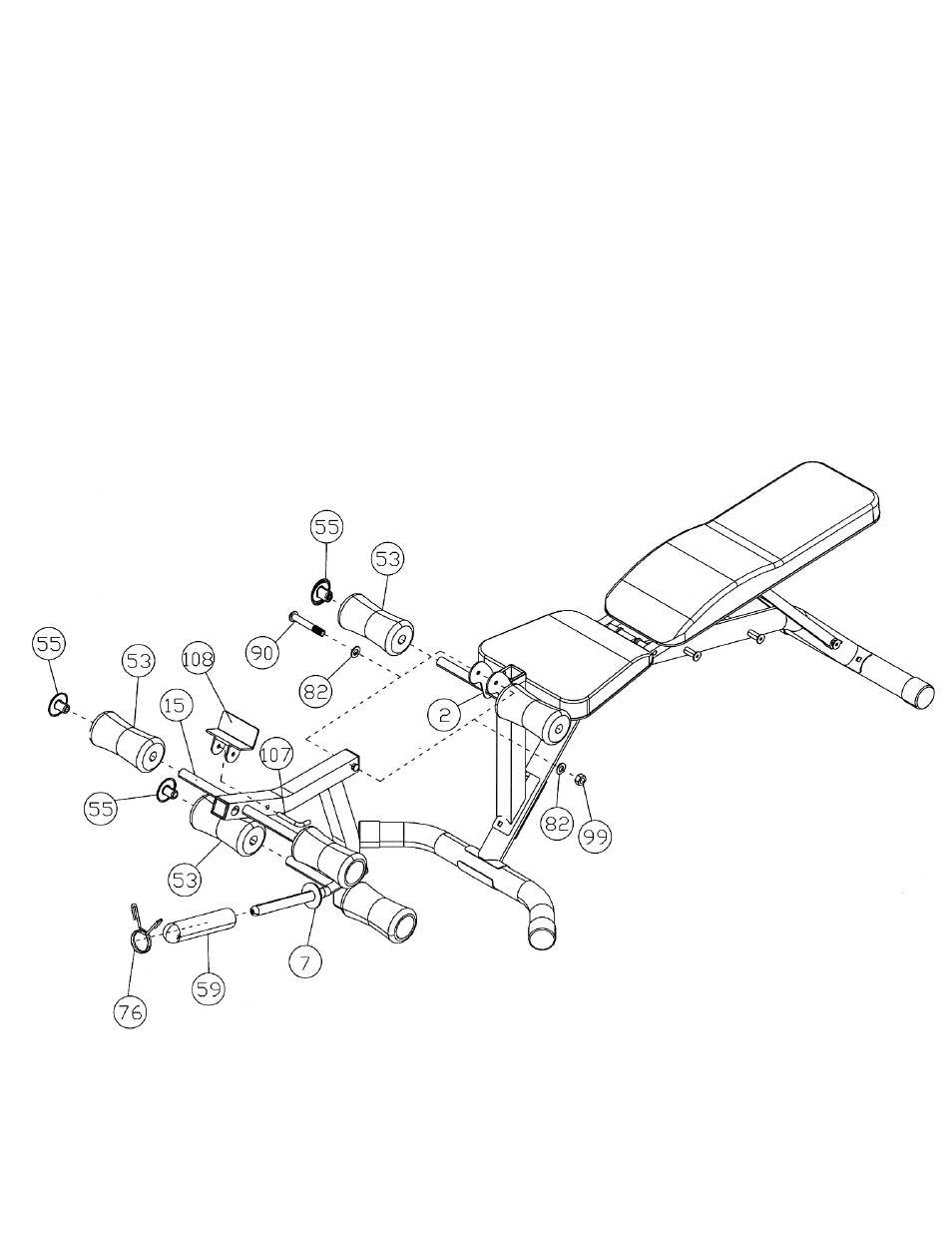

DIAGRAM 10
