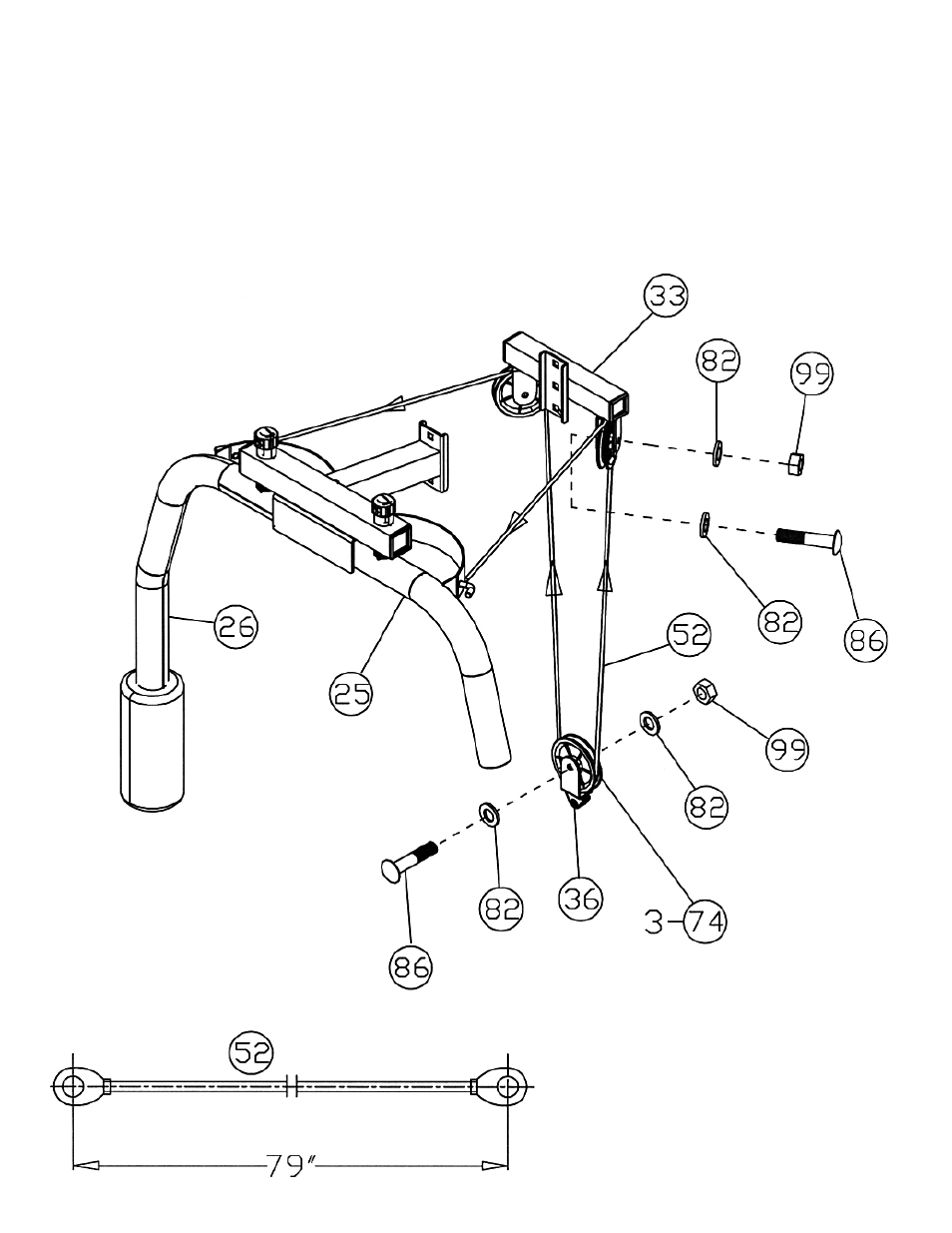

STEP 6 (See Diagram 6 & Cable Loop Diagram)
A.) Attach one end of the 79” Butterfly Cable (#52) to the clip on the Left Butterfly (#25). Draw the
Cable to the left Butterfly Pulley Bracket (#33).
B.) Attach a Pulley (#74) to the Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#86), two
∅
¾”
Washers (#82), and one M10 Aircraft Nut (#99).
C.) Draw the Cable around the Pulley then downward. Attach the Cable to a Single Floating Pulley
Bracket (#36). Install a Pulley to the Bracket. Let the Bracket hanging for now.
D.) Draw the Cable around the Pulley then upward to the right Butterfly Pulley Bracket. Install
another Pulley. Draw the Cable around the Pulley then clip to Right Butterfly (#26).
DIRGARM 6
