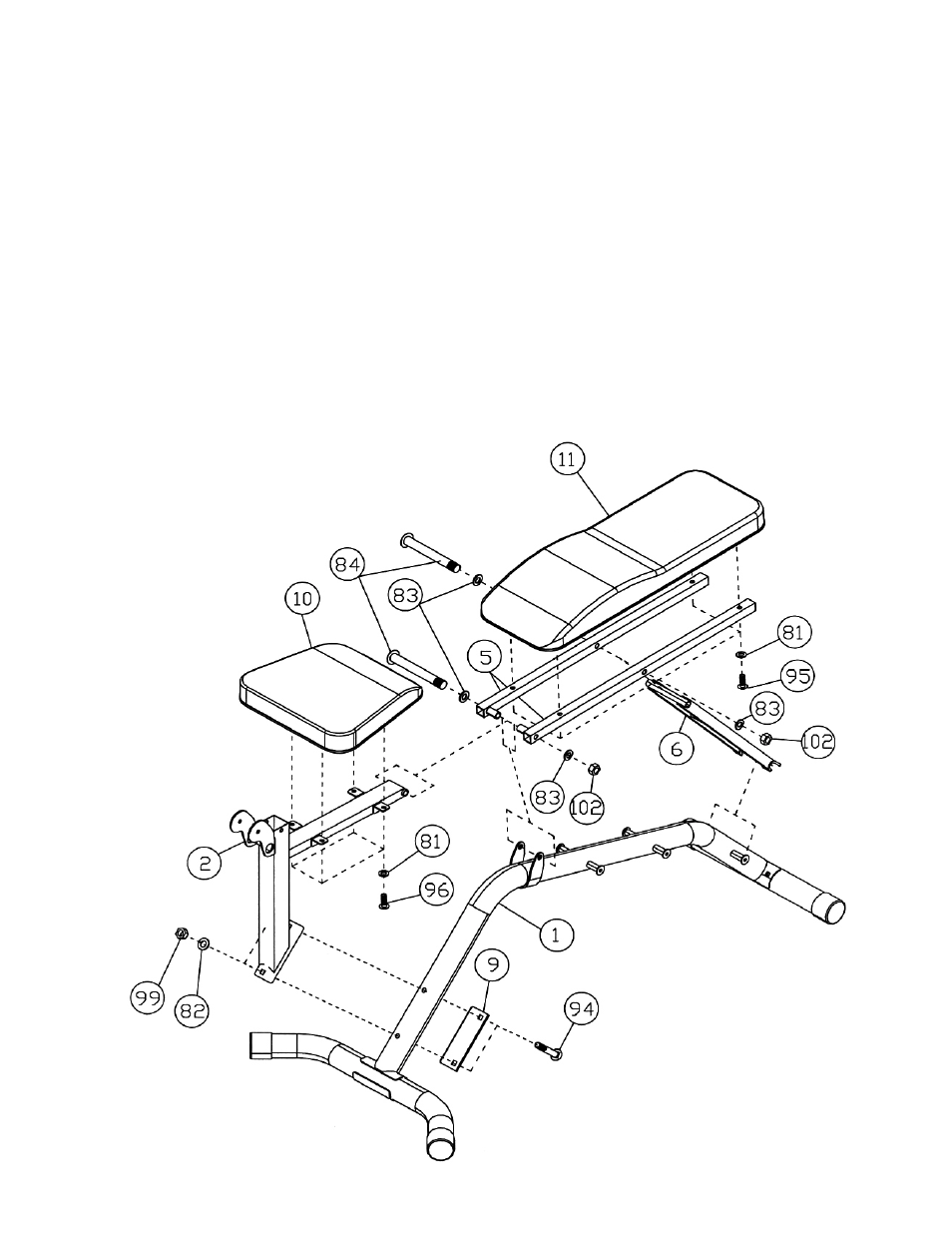

STEP 9 (See Diagram 9)
A.) Do not tighten all nuts and bolts until instructed to so.
B.) Attach the Leg Developer Holder (#2) to the Main Seat Support. Secure it with two M10 x 3
1/8” Carriage Bolts (#94), one 6 ¼” Curve Bracket (#9), two
∅
¾” Washers (#82), and two
M10 Aircraft Nuts (#99).
C.) Attach the Backrest Supports (#5) to the bracket on the Main Seat Support. Attach the seat
support on the Leg Developer Holder (#2) to the inside of the open bracket. Align the holes
and secure them together with a M12 x 8” Hex Bolt (#84), two
∅
1” Washers (#83), and one
M12 Aircraft Nut (#102).
D.) Attach the Backrest Incline Support (#6) to the Backrest Supports (#5). Align the holes and
secure them with one M12 x 8” Hex Bolt (#84), two
∅
1” Washers (#83), and one M12
Aircraft Nut (#102).
E.) Securely tighten all nuts and bolts previously installed. Make sure the Backrest Supports and
the Backrest Incline Support are able to swivel.
F.) Place the Backrest Board (#11) onto the Backrest Supports (#5). Secure it with four M8 x 1
5/8” Allen Bolts (#95) and Ø 5/8” Washers (#81).
G.) Place the Seat Pad (#10) onto the Leg Developer Holder (#2). Secure it with four M8 x ¾”
Allen Bolts (#96) and Ø 5/8” Washers (#81).
