D Controller

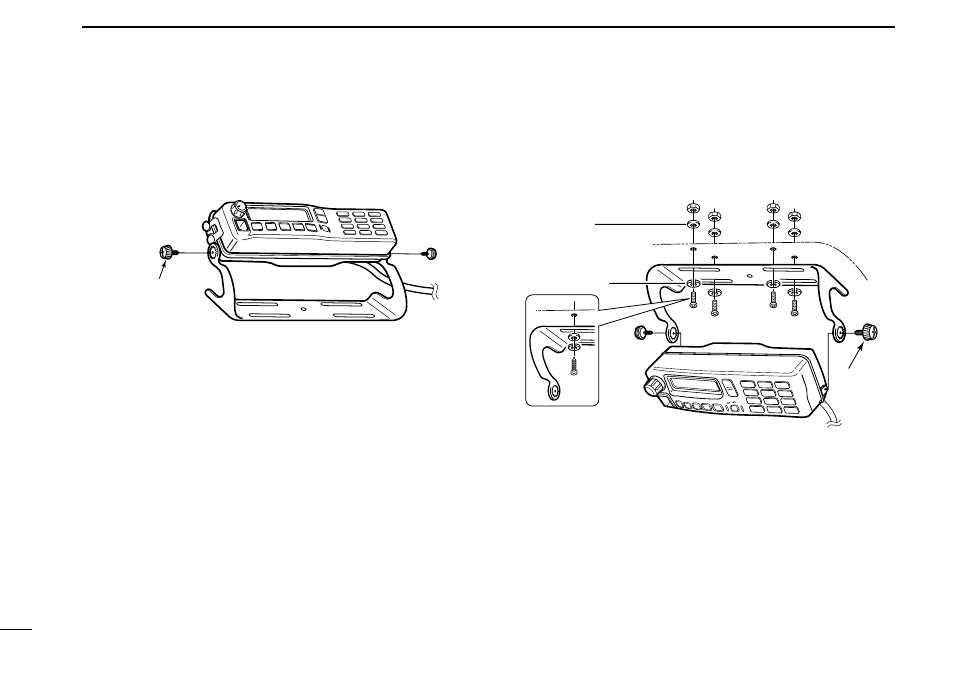

2 types of mounting styles are available— one is overhead
mounting, and other one is on-board mounting.
On-board mounting
Bracket screw
Overhead mounting
• Mount the controller securely with the 4 supplied screws to
a thick surface which can support more than 2 kg (4.40 lb).
(Overhead mounting)
When using
self-tapping screws
Flat washer
Spring washer
Bracket
screw
19
