16
3
CONNECTION AND MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
+ red
_ black
w ANTENNA CONNECTOR
Connects to an antenna.
Contact your dealer about an-
tenna selection and placement.
q D-SUB 25-PIN
Connect an
external unit.
e
q
w
r
t
Purchase separately
Connect the supplied micro-
phone hanger to the vehicle’s
ground for microphone on/off
hook functions when the op-
tional microphone (HM-152/T)
is used.
MICROPHONE HANGER
The supplied self ground microphone
can be used for microphone on/off
hook functions. (See p. 2)
EXTERNAL SPEAKER
CONNECTOR
Connect a 4–8 ø external speaker.
(See p. 21 for connector information.)
e
r
Crimp terminal
Crimp
t DC POWER RECEPTACLE
Connects to a 12 V DC battery.
Pay attention to polarities.
Solder
Crimp
NOTE: Use the terminals
as shown below for the
cable connections.
12V
Battery 12V
Battery
R WARNING! NEVER re-
move the fuse-holders from
the black and red cables.
When the optional micro-
phone (HM-152/T) is used:
Antenna
R WARNING! NEVER connect
to a 24 V batter y. This could
damage the transceiver.
n

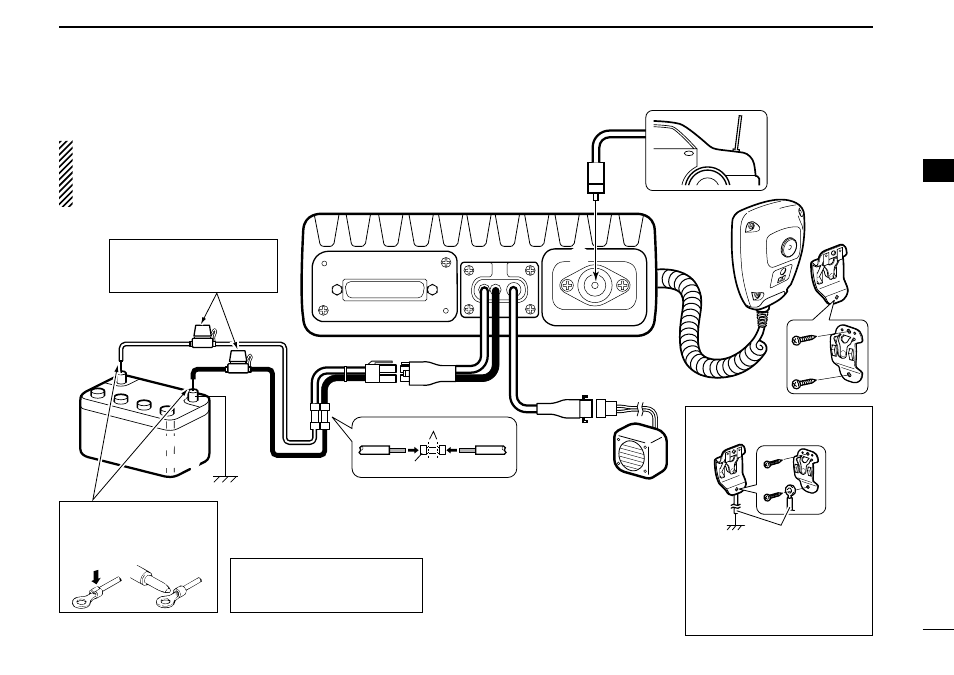

Rear panel connection
NOTE: The following
connections should be
performed by your Icom
dealer or distributor.
