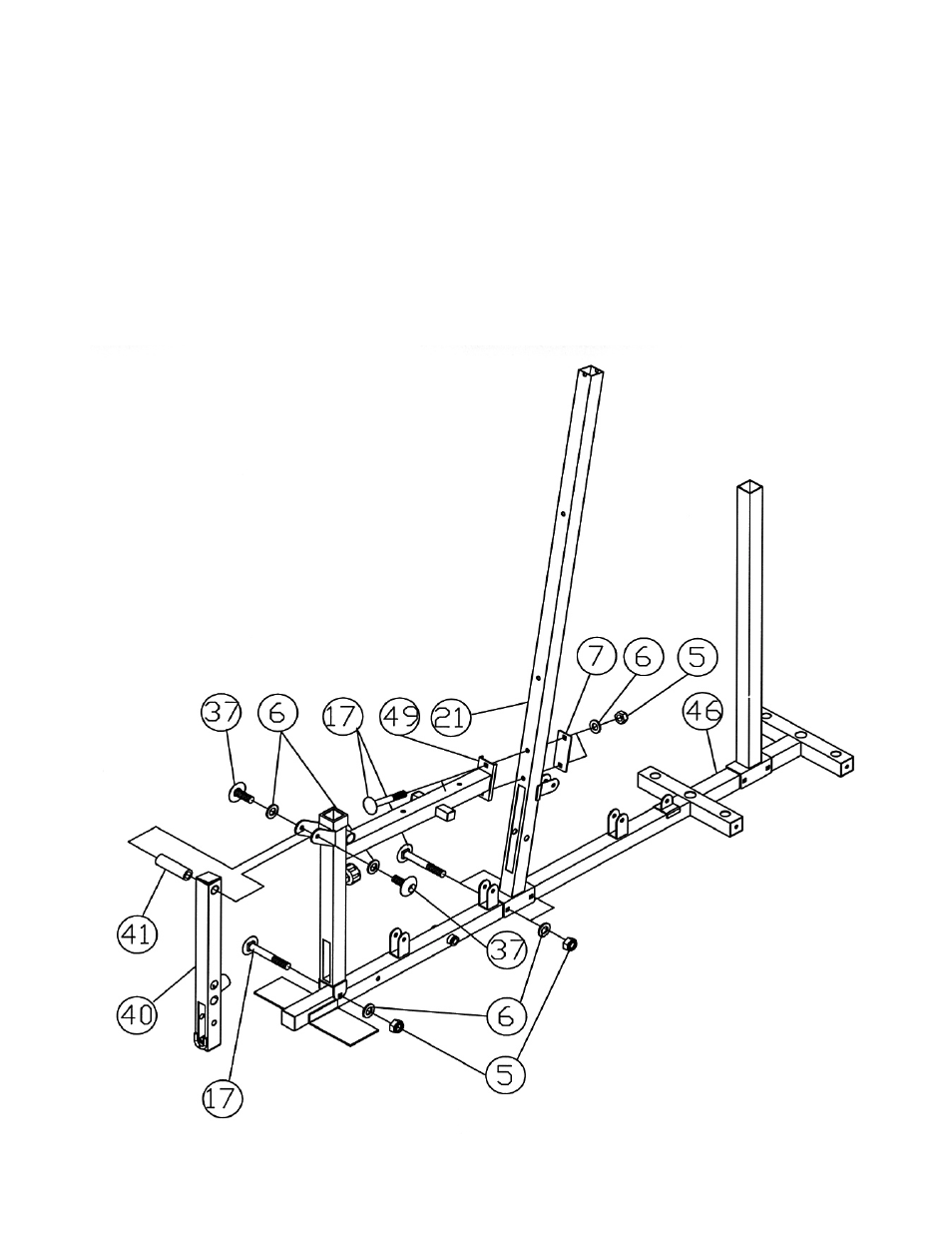

STEP 2 (See Diagram 2)

A.) Attach the Right Vertical Beam (#21) to the Right Base Frame (#46). Secure it with two M10 x

2 ¾” Carriage Bolts (#17),

¾” Washers (#6), and M10 Aircraft Nuts (#5).

B.) Attach the Right Seat Support (#49) to the Right Vertical Beam (#21). Secure it with one

Bracket (#7), two M10 x 2 ¾” Carriage Bolts (#17),

¾” Washers (#6), and M10 Aircraft Nuts

(#5).

C.) Attach the other end of Right Seat Support (#49) to the Right Base Frame (#46). Secure it with

one M10 x 2 ¾” Carriage Bolt (#17),

¾” Washer (#6), and M10 Aircraft Nut (#5).

D.) Attach the Leg Developer (#40) to the front open bracket on the Right Seat Support. Secure it

with a Leg Developer Axle (#41), two

¾” Washers (#6), and M10 x ¾” Allen Bolts (#37).

DIAGRAM 2

5
