ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended two or people assembling this machine to avoid
possible injury.
STEP 1 (See Diagram 1)
A.) Place the Right Base Frame (#46) and Left Base Frame (#87) on the floor, at a right angle to
each other. Attach the Rear Vertical Beam (#50) to the joint and align the holes. Secure the
holes with two M10 x 3” Carriage Bolts (#64),
∅
3/4” Washers (#6) and M10 Aircraft Nuts (#5).
DO NOT tighten all the nuts and bolts yet.

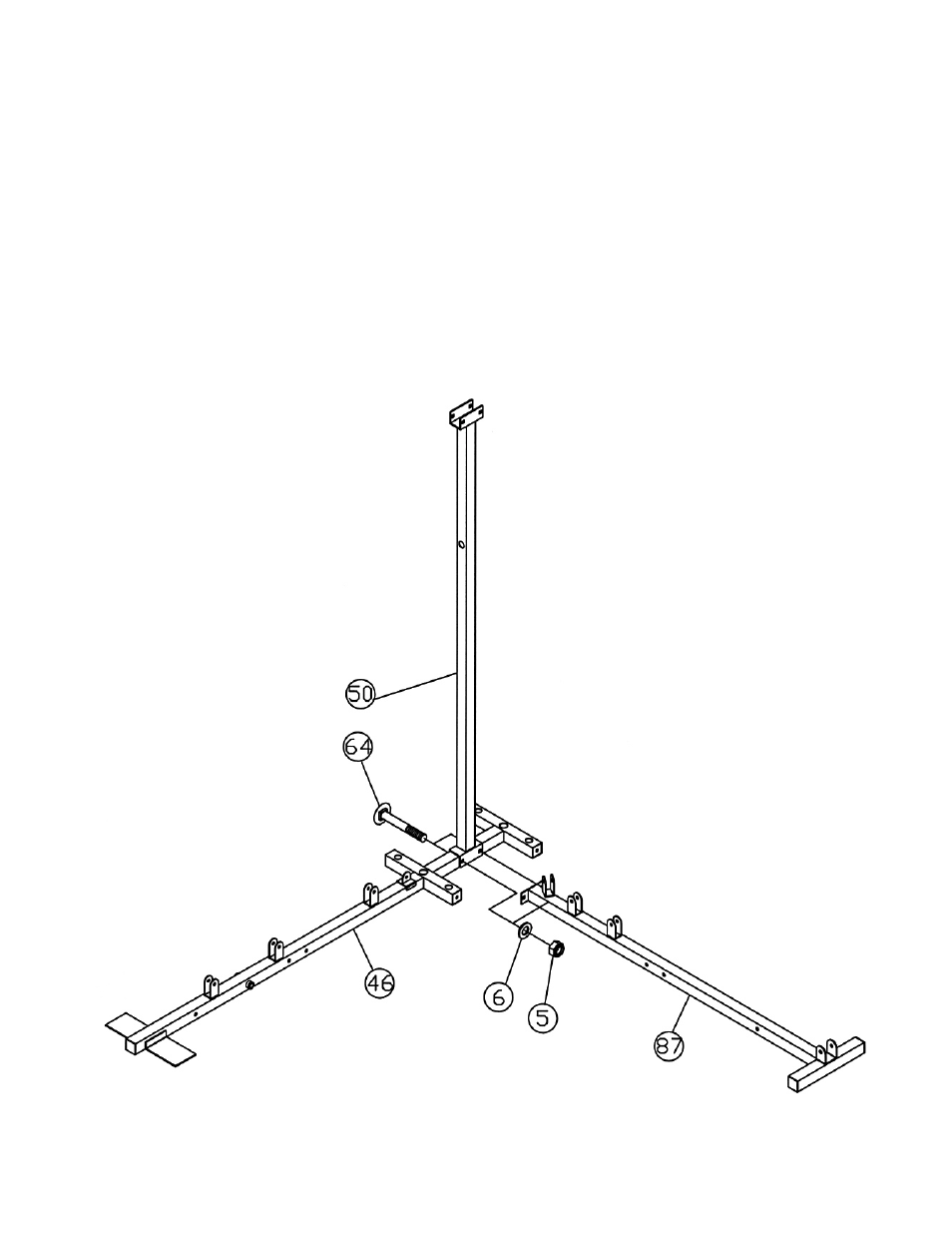

Diagram 1
