12

Intel

®

Xeon™ Processor, Intel

®

E7520 Chipset, Intel

®

6300ESB ICH Development Kit User’s Manual

Product Overview

1.5

Memory Population Rules and Configurations

The system supports two DDR2 400 DIMM slots for Channel A and two DDR2 400 DIMM slots
for Channel B. The four slots are interleaved and placed in a row in the following order: A1, B1,
A2, B2, with A1 being closest to the MCH. This design supports only registered ECC-enabled
DIMMs.

When populating both channels, always place identical DIMMs in sockets that have the same
position on Channel A and Channel B (i.e., DIMM A2 should be identical to DIMM B2).

In addition, single-rank DIMMs should be populated furthest when a combination of single-rank
and double-rank DIMMs are used. This recommendation is based on the signal integrity
requirements of the DDR2 interface.

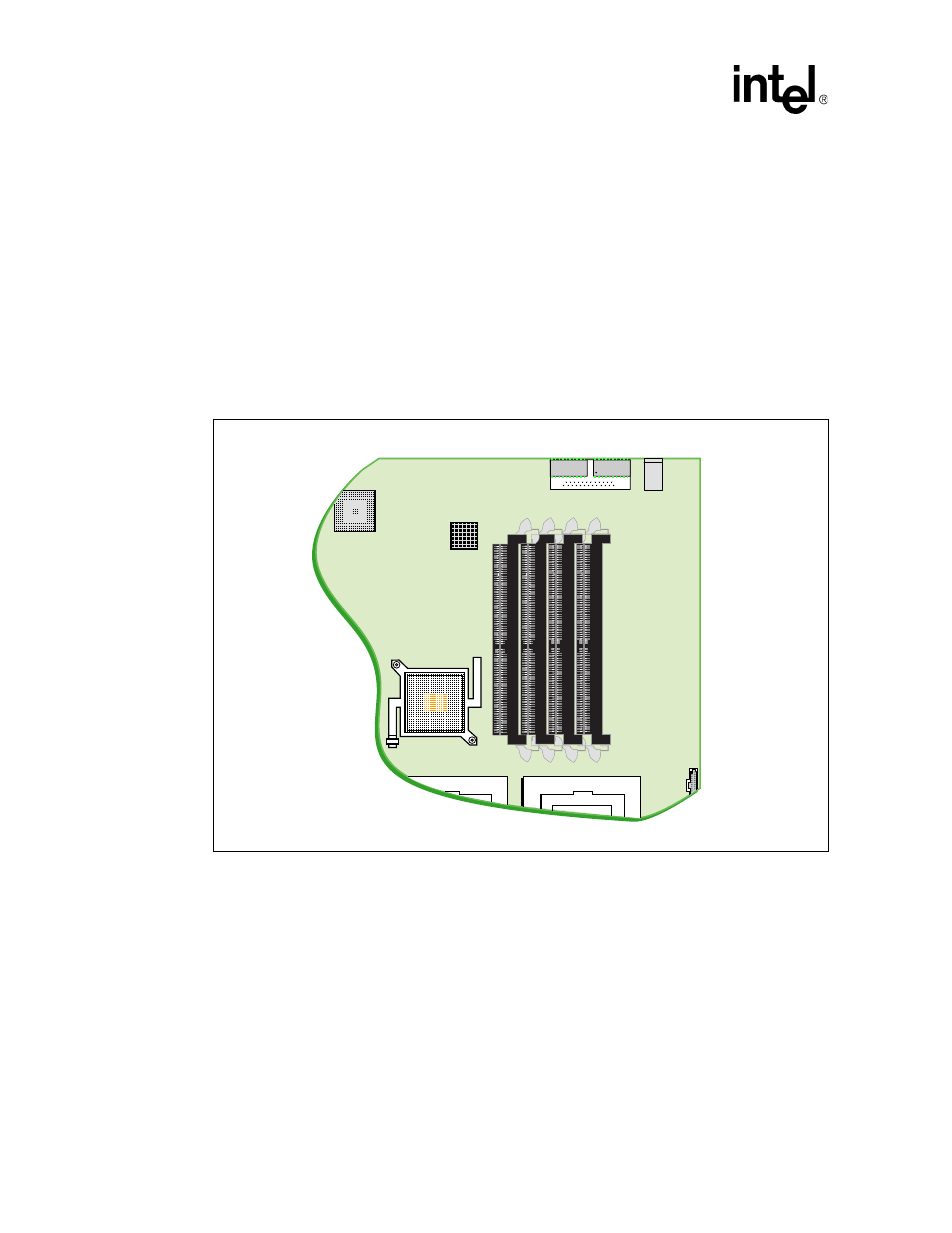

Figure 3.

DDR2 400 Memory - DIMM Ordering

B3519-01

+

+

+

DIMM B2

DIMM A2

DIMM B1

DIMM A1

MCH
