LEFT FENDER
BASE
PHILIP SCREW
ST4.2x16
RIGHT FENDER
Congratulations!
You have completed the assembly of your new Ironman LEGACY Treadmill!
Assembly
9

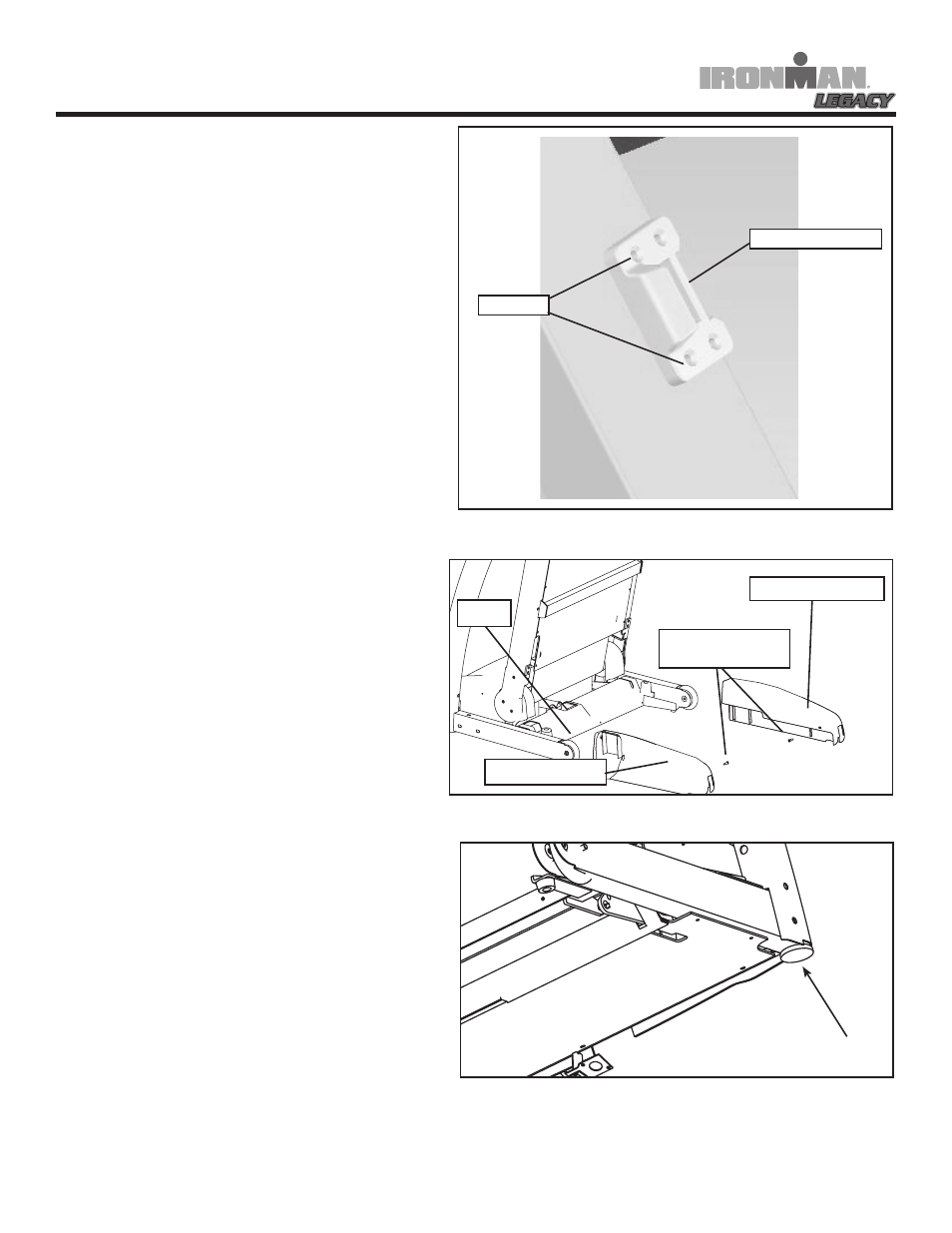

9. If Safety Latch Assembly will not secure
correctly, turn the four Screws counter-
clockwise a half turn.
NOTE: DO NOT REMOVE SCREWS FROM
LATCH HOUSING.
Next, slide the Safety Latch Housing up
or down to align the Safety Latch with
center of hole located on the left handle-
bar. Tighten the four Screws to secure the
assembly in place.
Figure : Safety Latch Adjustment
11. Assembly is complete. Move Treadmill
to permanent location. See Moving
Instructions. Before operating the tread-
mill, adjust Levelers so that Base of tread-
mill does not wobble. See Figure 9.
Note: Leveler is found underneath tread-
mill.
Figure 9: Adjust Levelers
10. Install the Left and Right Fenders to
Base using Philip Screw ST4.2X16 as shown
in Figure 8.
Figure 8: Left and Right Fender Installation
SCREWS
LATCH HOUSING
