Assembly
8
8. Fold the treadmill into the storage posi-
tion and lock into place as shown in Figure
6.
Figure 6: Storage Position Locking Method
7. Position the Left and Right Bottom
Handle Covers to underside of handle
assembly, then connect the EKG Harness
Wires to the Left and Right Bottom Handle
Pulse Plates as shown in Figure 5.
Tighten into place using Philip Screw
ST4.2X16 (Qty. 2) and Philip Flathead
Screw 4.2*16 (Qty 4).
Next, install the End Caps to the handle
assembly.
IMPORTANT, PLEASE NOTE:
Tighten all hardware installed in Step 1
through Step 7.

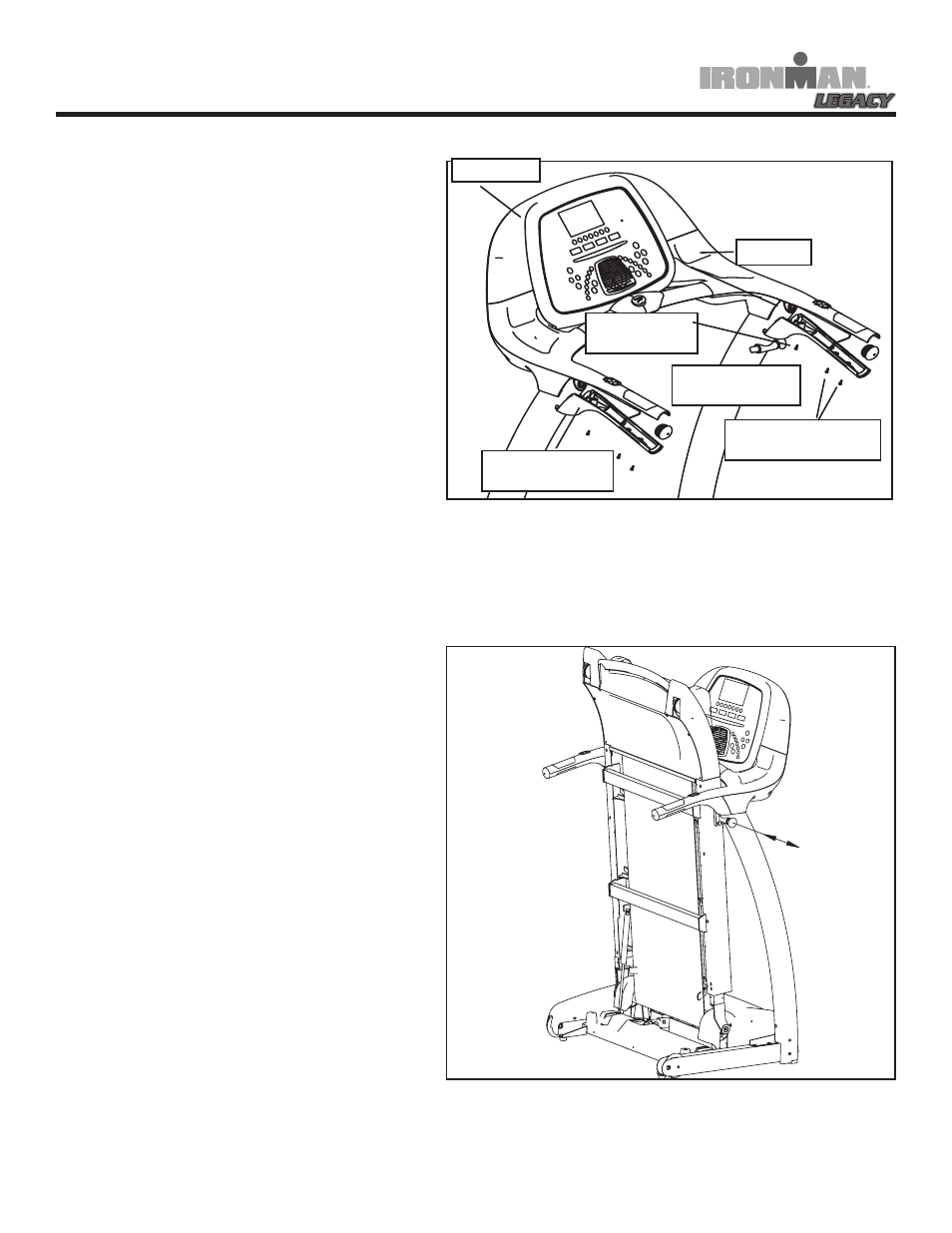

Figure 5: Left and Right Bottom Handle Cover Installation
CONSOLE
PHILIP SCREW
ST4.2x16
END CAP
LEFT BOTTOM
HANDLE COVER
RIGHT BOTTOM
HANDLE COVER
PHILIP FLATHEAD
SCREW ST4.2x16
