Ironman Fitness LEGACY - Manual (Page 7)

Assembly

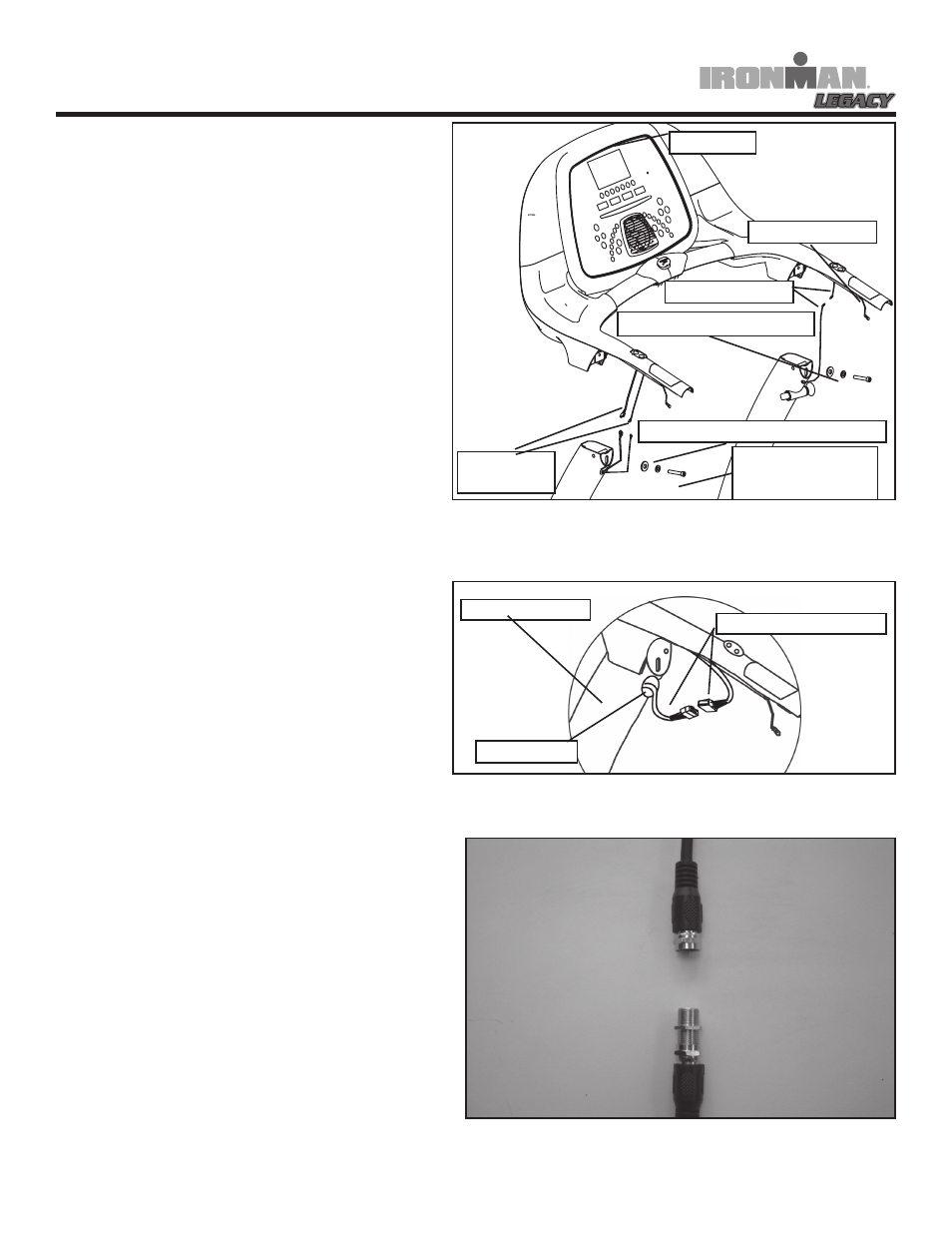

Figure 4: Console Installation
4. Connect the Console Harness together
as shown in Figure 4a. Note: The upright
console harness wire should be inserted
through grommet in left upright before con-
necting to harness from console assembly.
5. Connect the Coax cable from the Right
Upright to Coax cable from the Console as
shown in Figure 4b. Note: Make sure to
hand tighten coax connector only. Do Not
overtighten.
6. Connect the Console to the Left and
Right Uprights by sliding the Console con-
necting brackets into the end of the Left
and Right Uprights as shown in Figure
4. Tighten into place using 5/16”-18x45
Shoulder Allen Bolt (Qty. 2), Spring Washer
8 mm (Qty. 2), and Washer 9*16*1.6 mm
(Qty. 2).
SPRING WASHER 8 mm
CONSOLE
HARNESS
SMALL WASHER 9*16*1.6 mm
CONSOLE
EKG HARNESS
SHOULDER ALLEN
BOLT 5/16”-18x45
IMPORTANT, PLEASE NOTE:
While connecting the Console to the Left
and Right Uprights pay attention not to
pinch the wire harness.
LEFT UPRIGHT
CONSOLE HARNESS
GROMMET
Figure 4a: Console Installation
COAX CABLE
Figure 4b: Coax Connection
IMPORTANT, PLEASE NOTE:
While connecting the Console to the Left
and Right Uprights pay attention not to
pinch the wire harness. Do not overtighten
connector.
