STEP 4 (See Diagram 4)
A.) Attach the Leg Developer (#5) to the open bracket on the Front Post (#2). Secure it with one
M10 x 3” Allen Bolt (#29), two
 ¾” Washers (#35), and one M10 Aircraft Nut (#37).
B.) Insert the Leg Developer Weight Post (#6) into the hole on Leg Developer. Secure it with one
M10 x 2 3/8” Allen Bolt (#30), two Ø ¾” Washers (#35), and one M10 Aircraft Nut (#37). Cover
the end of the Post with one Ø 1” x Ø 3/8” Washer (#38) and one Ø 1 1/8” x 1 1/8” Rubber
Bumper (#20).
C.) Insert three Foam Tubes (#13) halfway through the holes on Front Post and Leg Developer.
Push six Foam rolls (#14) onto the Tubes from both ends. Plug six Foam Roll End Caps (#16)
into the Ends.
D.) Attach an Olympic Sleeve (#15) onto the Leg Developer Weight Post. Attach a Spring Clip (#21)
to the Olympic Sleeve.

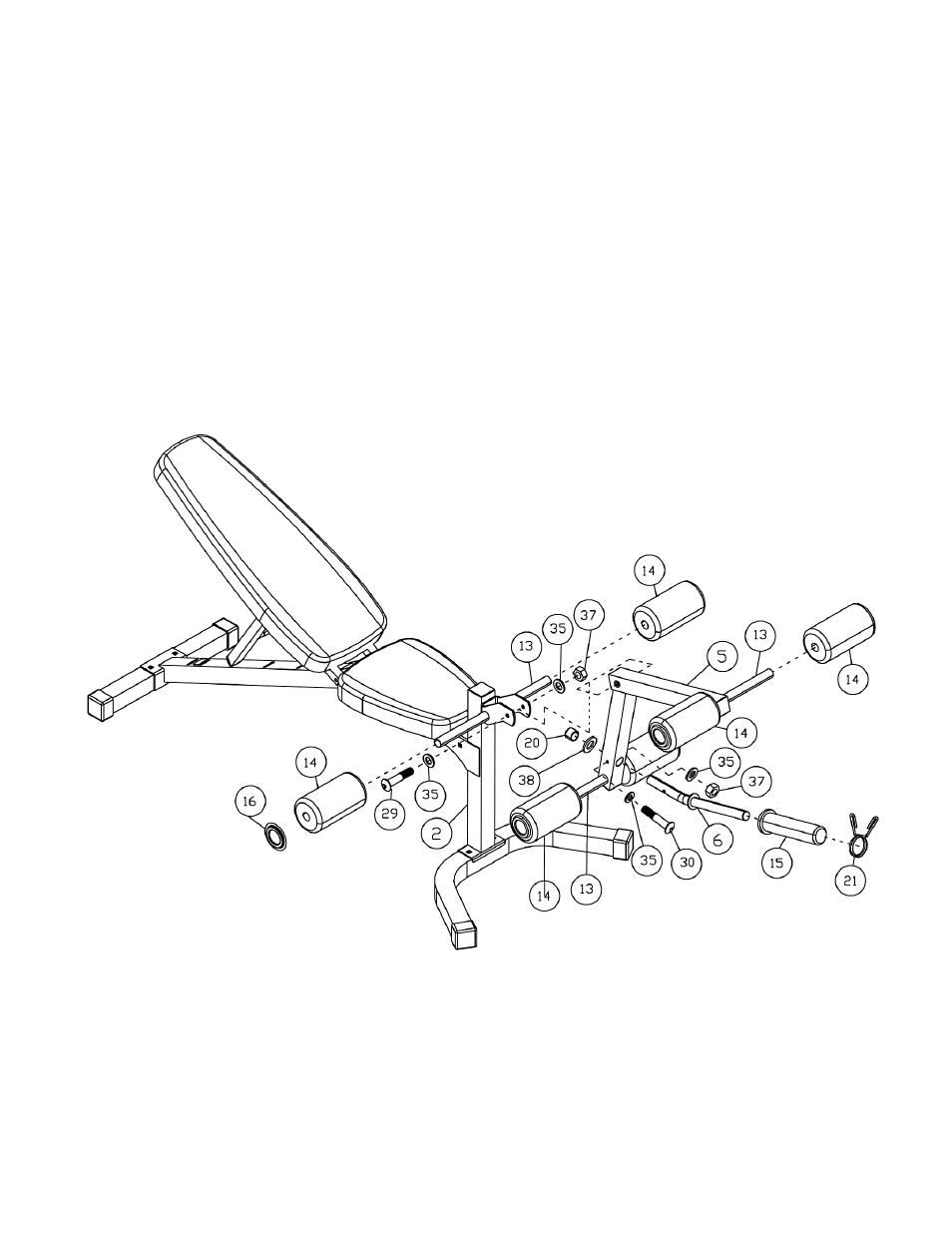

DIAGRAM 4
