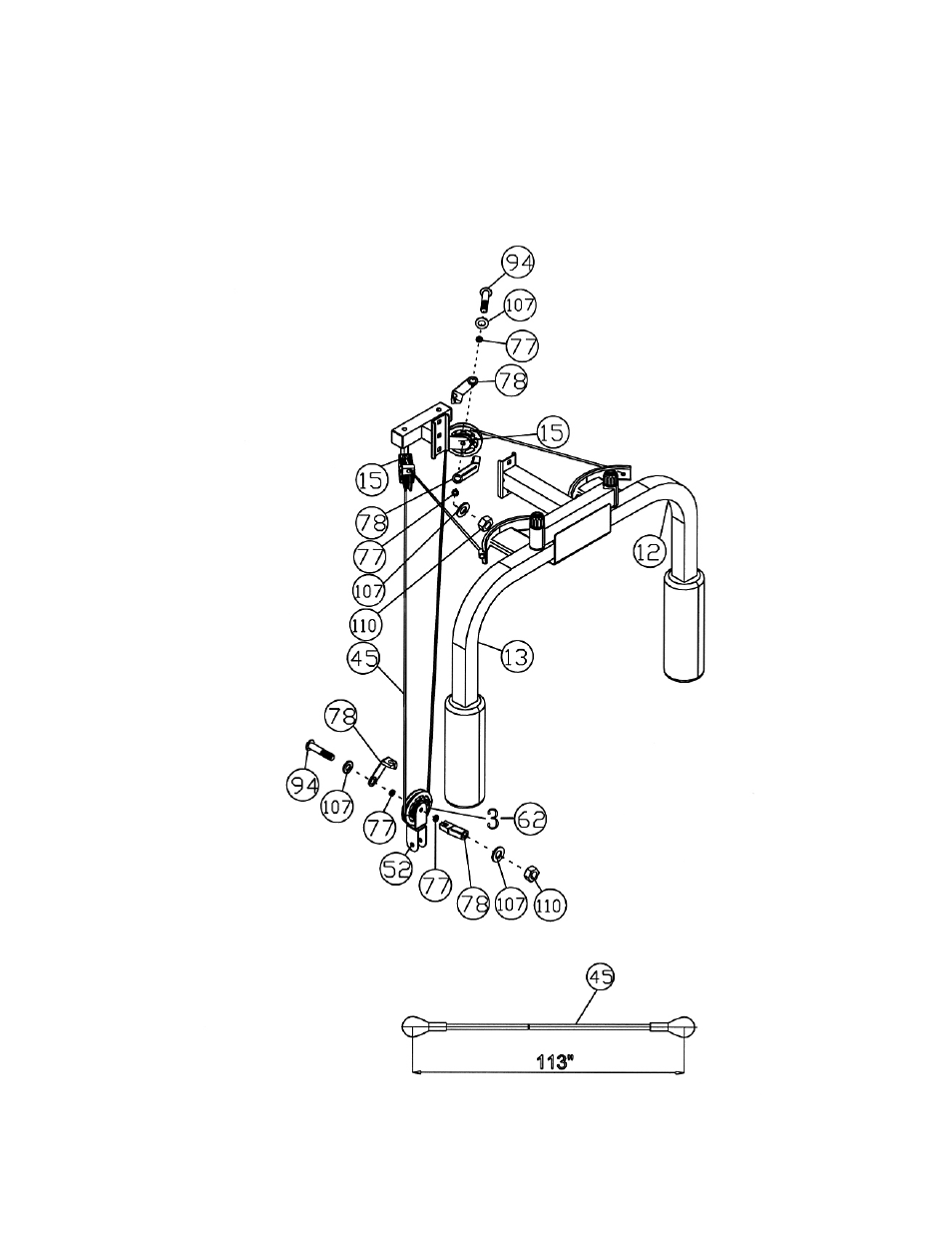

B.) Attach a Pulley (#62) and two Cable Retainers (#78) to the Bracket.
C.) Secure them with one M10 x 2” Allen Bolt (#94), two Ø ¾” Washers (#107), and one M10 Aircraft
Nut (#110).
D.) Draw the Cable around the Pulley then downward. Attach an Angled Floating Pulley Bracket (#52)
to the Cable. Repeat Procedure B above to install a Pulley with two Cable Retainers (#78). Draw
the Cable around the Pulley then upward to the right Swivel Pulley Bracket. Let the Bracket
hanging for now.
E.) Repeat Procedure C above to install a Pulley and Cable Retainers to the Bracket.
F.) Draw the Cable around the Pulley then clip to the Right Butterfly (#13).
16
STEP 7 (See Diagram 7-1, 7-2 & Upper Cable Loop Diagram)
