Page 15

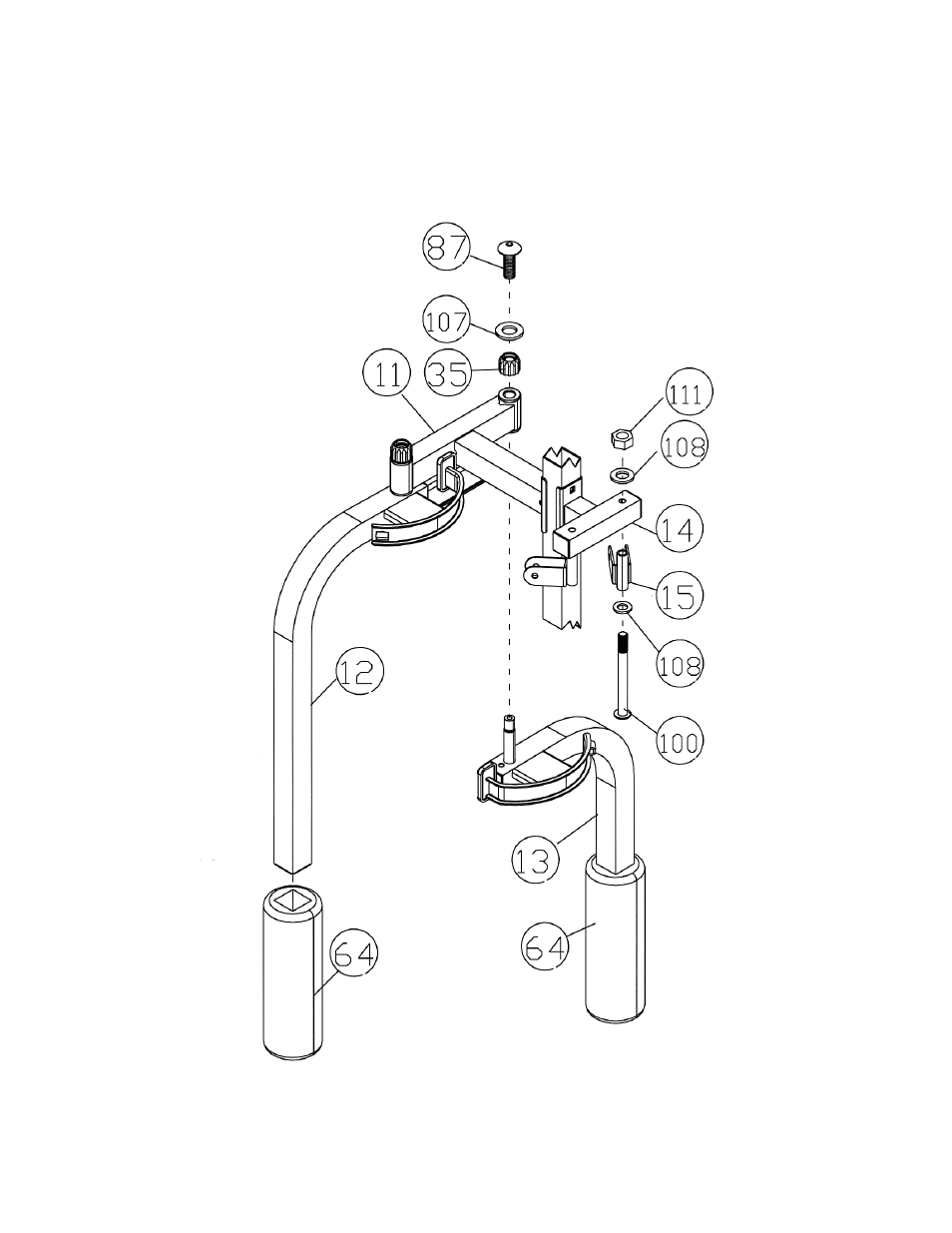

(#87). Push the Butterfly Arm Foam Roll (#64) to Right Butterfly. Repeat same step to install
the Left Butterfly (#12).
B.) Insert two Swivel Pulley Brackets (#15) into the holes on the Butterfly Pulley Bracket (#14).
Secure each Swivel Pulley Bracket with one M12 x 5” Hex Bolt (#100), two Ø 1” Washer
(#108), and one M12 Aircraft Nut (#111).
Do not over tighten the Nuts. Make sure the
Brackets are able to swivel.
DIAGRAM 5
14
CABLE LOOP DIAGRAM
