Integra DTM-5.3 - Manual (Page 14)

14
Connecting the remote zone (Zone 2)
The DTM-5.3 allows you to connect an additional set of speakers and place them in a different room or an area separated for listening to
music. This other room or area is referred to as the remote zone (Zone 2), while the room in which the DTM-5.3 is referred to as the main
zone. In addition, the IR IN/OUT allows you to control the DTM-5.3 from the remote zone (Zone 2) using the remote controller, even though

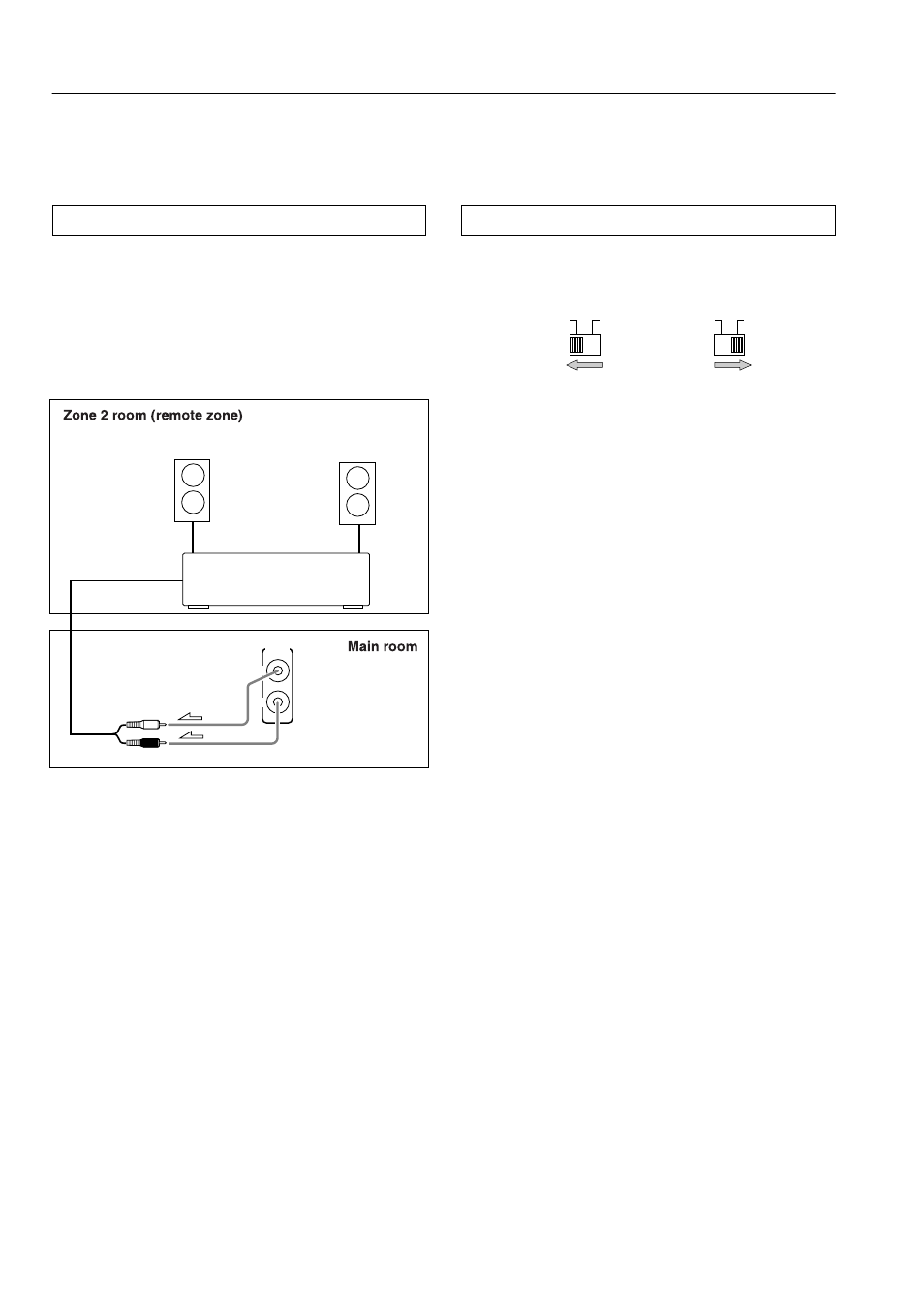

the remote zone may be physically separated. The diagram illustrates the proper connections for the remote zone.
Zone 2 connections
The ZONE 2 OUT terminal provides constant output. Connect to
the LINE input of the amplifier (CD, tape, etc.). Adjust the volume
with the amplifier connected to the ZONE 2 OUT terminal.
1 Connect the DTM-5.3 to the amplifier for the remote
zone.
2 Connect the remote zone speaker cables to the speaker
terminals on the amplifier.
Adjust the volume level at the amplifier.
Zone 2 Control Selector
When you use the A-BUS system, switch the ZONE 2 CONTROL
SELECTOR to A-BUS (left side). When you use an IR controller,
switch the Zone 2 CONTROL SELECTOR to IR (right side).
OUT
ZONE 2
R
L
DTM-5.3
Zone 2 Left speaker Zone 2 Right speaker
Right (red)
Left (white)
Zone 2 amplifier
A-BUS IR A-BUS IR
