MultiVOIP FXS User Guide
Mechanical Installation & Cabling
43
Unpacking Your MultiVOIP
When unpacking your MultiVOIP, check to see that all of the items shown are included in the box. If any
box contents are missing, contact MultiTech Tech Support at 1-800-972-2439.
Unpacking the MVPFXS-8/16/24
Cabling
Guide
Power
Boot
WAN
LNK
FDX
SPD
COL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
24
23
22
21
20
18
MultiVOIP
TM

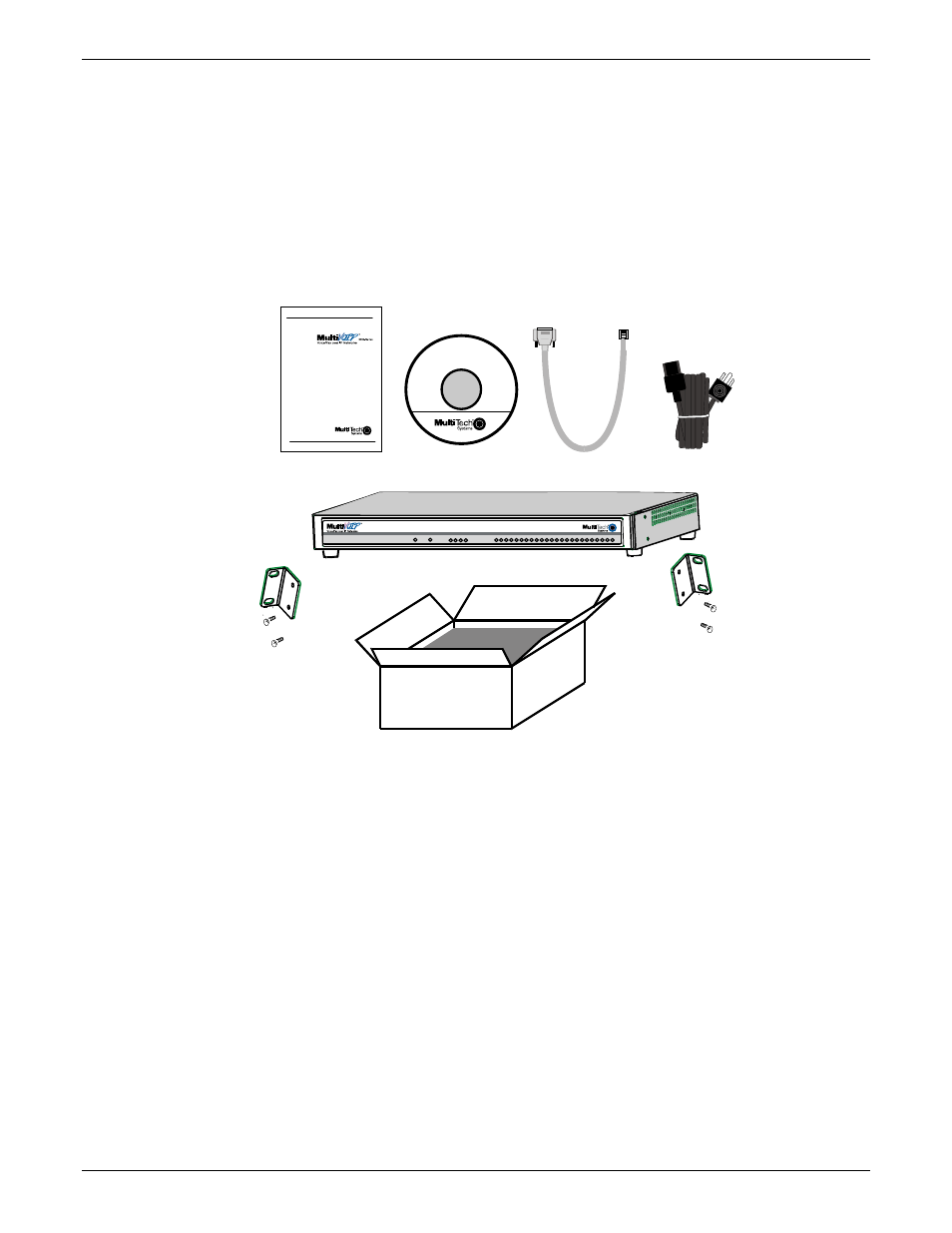

Figure 3-1: Unpacking the MVPFXS-8/16/24
