Receiver DCL
The Receiver DCL p/n 0VS50006 has the following features:
· Connects to 2 monitors with each having totally separate video, audio and
serial control
· Receiver DCL is cascadeable – it has a pass-through port for connecting
more Receivers/ Receivers L/ Receivers DCL
· Can be up to 300m/1,000ft from Transmitter/Broadcaster
· With a Line Splitter L can be up to 600m/2,000ft from
Transmitter/Broadcaster

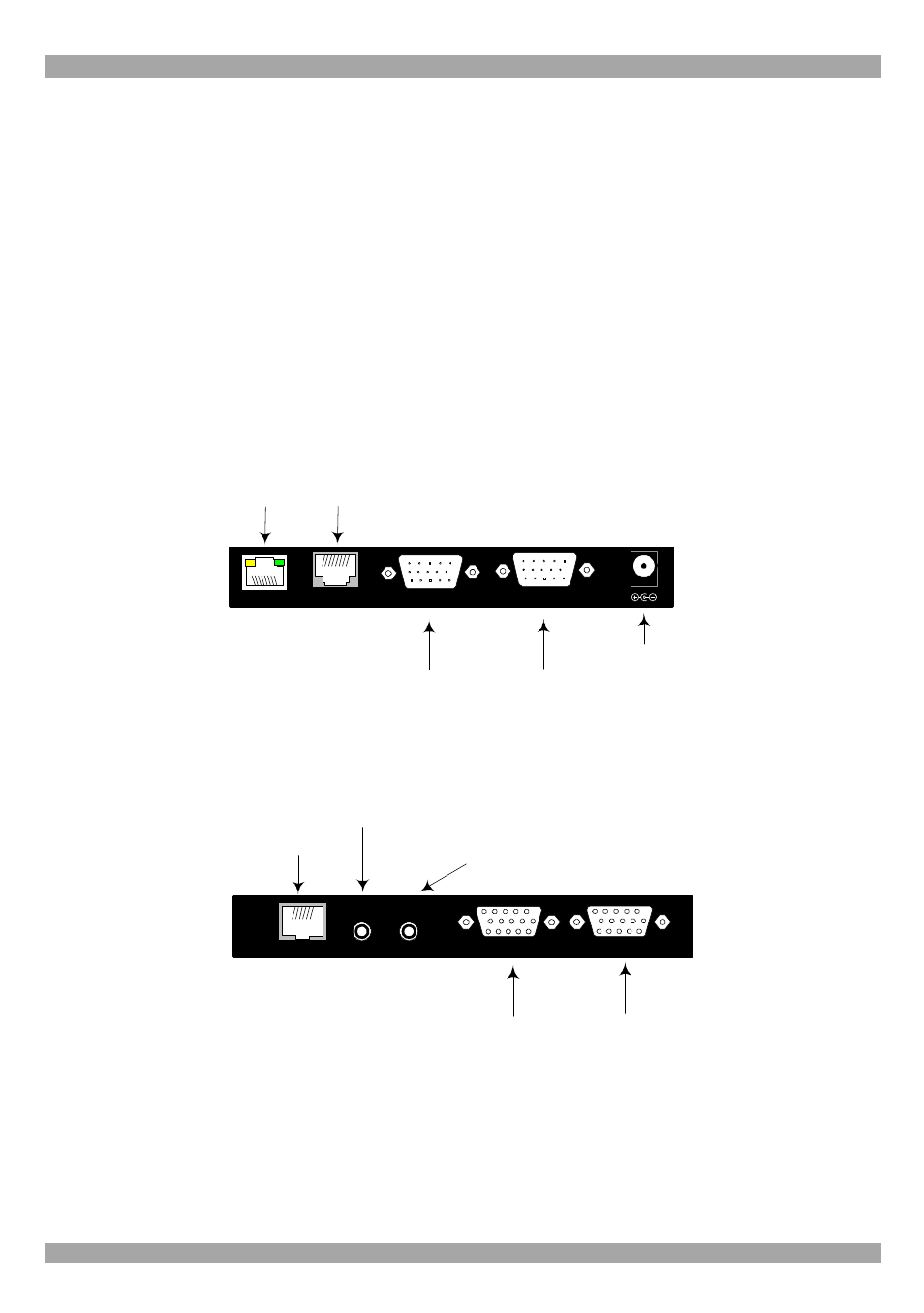

The figures below illustrates the Receiver DCL ports
SERIAL 1 5VDC
SYSTEM OUT
To Serial device/
connection 1
System
cable In
Power connector
SERIAL 2
SYSTEM IN
To Serial device/
connection 2
System
cable Out
Figure 6 Receiver DCL side 1
To stereo Audio
cable of screen 1
To Video
cable of
Screen 1
Serial Download
cable
To Video
cable of
screen 2
To stereo Audio
cable of screen 2
VIDEO 1
1 2
TUNING
VIDEO 2
AUDIO
Figure 7 Receiver DCL side 2
Mounting the Receivers
All Receiver types have VESA standard screw holes 75mm and 100mm apart, see
the figure below. Use the 2 screws supplied (or the screws you may find at the back
of the monitor) to connect the unit to the back of the monitor.
