Line Splitter Long
Receiver
Receiver
300m/1,000ft
100m/330ft
100m/330ft
Player
Transmitter/Broadcaster

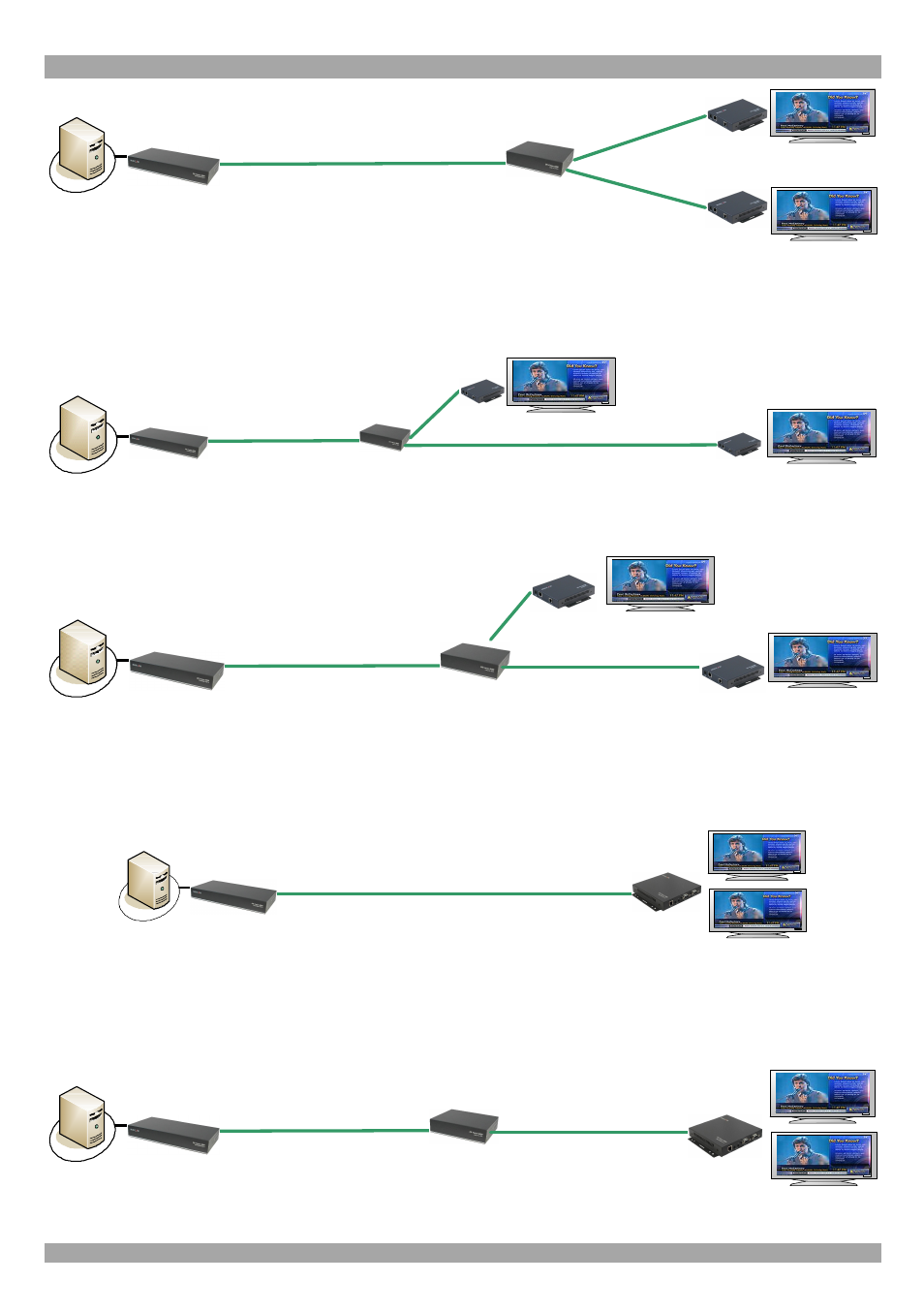

Figure 13 Long cluster
Figure 14 and Figure 15 show different mixed installations with different
combinations of Line Splitter and Line Splitter L and Receiver and Receiver L.
Receiver
Line Splitter
100m/330ft
10m/33ft
Player
Transmitter/Broadcaster
Receiver
Long
200m/660ft
Figure 14 Mixed installation 1
Line Splitter Long
300m/1,000ft
300m/1,000ft
Player
Transmitter/Broadcaster
Receiver Long
Receiver
100m/330ft
Figure 15 Mixed installation 2
Figure 16 shows a Receiver DCL 300m/1,000ft away from the player with 2
connected monitors.
Player
Transmitter/Broadcaster
Receiver DCL
300m/1,000ft
Figure 16
Receiver DCL
Figure 17 shows a Receiver DCL 600m/2,000ft away from the player connected via
a Line Splitter L.
Line Splitter Long
300m/1,000ft
300m/1,000ft
Receiver DCL
Player
Transmitter/Broadcaster
Figure 17 Line Splitter L + Receiver DCL
