USER GUIDE
18
9. Adjusting the picture quality
When the broadcasted picture needs adjusting:
For the Receiver turn the Tuning adjuster – see Figure 4, using a small screwdriver.
The Receiver L/Receiver DCL/Line Splitters can be tuned either via the Service
Utility, as explained on page 29, or by using the optional Tuning Unit as explained
below.

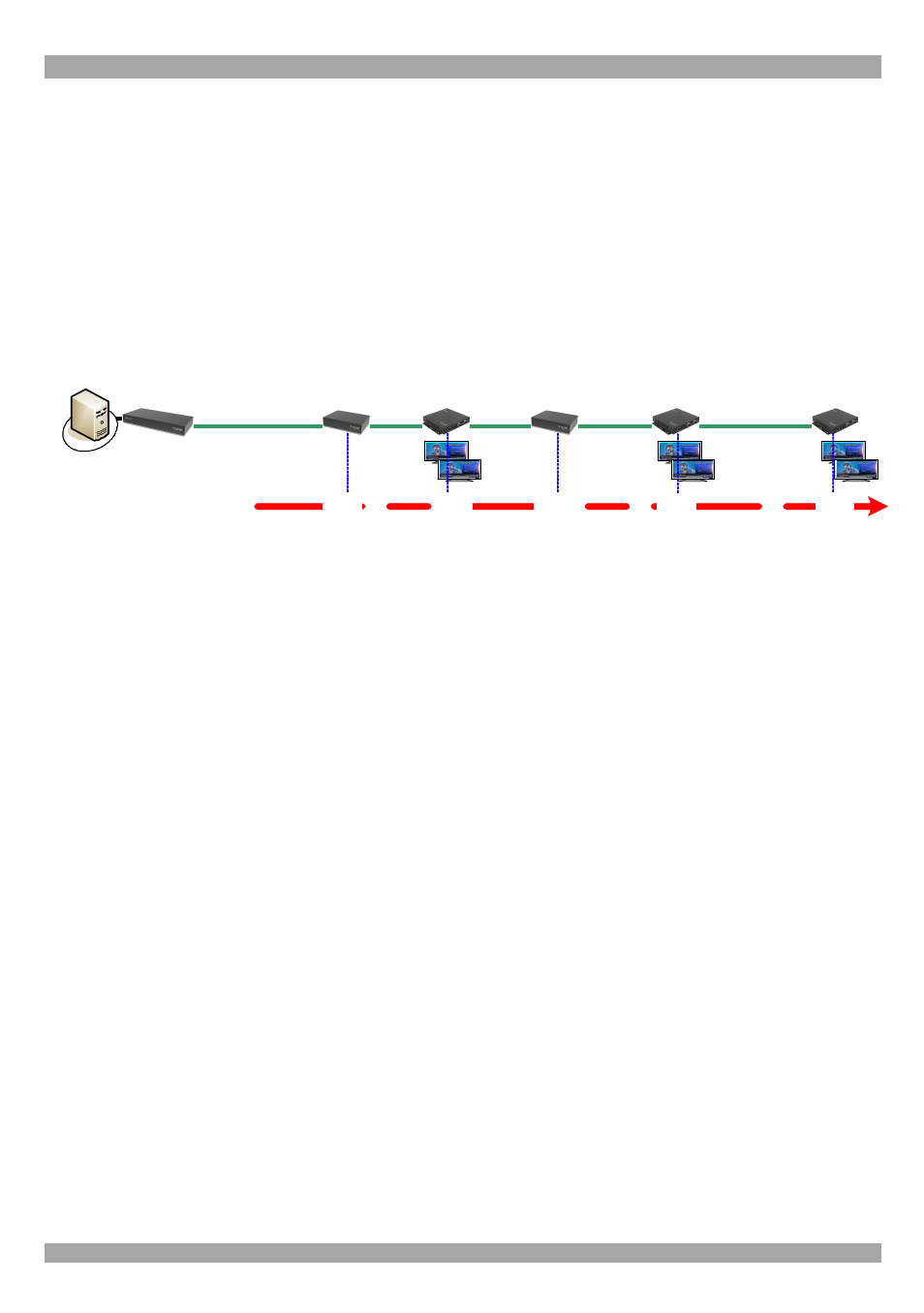

Note! Where there are cascaded Receiver DCL/Line Splitters you must tune them
from the unit nearest the Broadcaster/Transmitter onwards. See diagram below.
Line Splitter Receiver DCL
Player
Transmitter/Broadcaster Line Splitter Receiver DCL Receiver DCL
Tune units in the order shown by the arrow
1st 2nd 3rd 4th 5th
1. Connect the Video Tuning Unit cable (p/n 5CB40607) to the Tuning Unit and the
Receiver L/Receiver DCL/Line Splitter Tuning port. Once connected, Ready to
Tune appears in the LCD.
By pressing the Menu key you repeatedly scroll between the following functions:
· Tables
· Red
· Green
· Blue
· Brightness
· HF Emph
· Save / ESC
You adjust a function by pressing the up and down arrow keys.
Tables
The video tables contain preset tuning configurations for distances of between 1m
and 300m. Note! These presets were made using a test cable which may not be an
exact match for the cable that you are using.
