Minicom Advanced Systems 3000 - Manual (Page 16)

DS VISION 3000
15
8. Connecting the cables
The connections illustrated in Figure 21 are described below. The detailed
connection of the Receiver DCL is illustrated in Figure 22.
DS Vision 3000
Broadcaster
Player
computer CATx cables to
*
Receivers or
Line Splitters/L
To Audio Out
Stereo Audio cable
To Serial port
To
Serial
port
1 2 3 4 5 6 7 8
5VDC
CONTROL VIDEO IN
VIDEO OUT LOCAL
SERIAL
AUDIO OUT
AUDIO IN
To Audio In
VIDEO SERIAL
L L&R R
SYSTEM TUNING
Receiver side 1
Receiver side 2
Video cable
Serial Extender cable
To Serial port
Serial Download cable
SYSTEM IN
5VD C
SYSTEM OUT
TUNIN G
CATx cables to
* Receivers or Line
Splitters/L
Video
Speakers /
Audio
Serial port /
device
Line Splitter
To Line
Out port
To local Serial
device
5VDC SYSTEM TUNING
* Receivers refers to any
of the following:
Receivers
Receivers L
Receivers DCL
To
Video
In

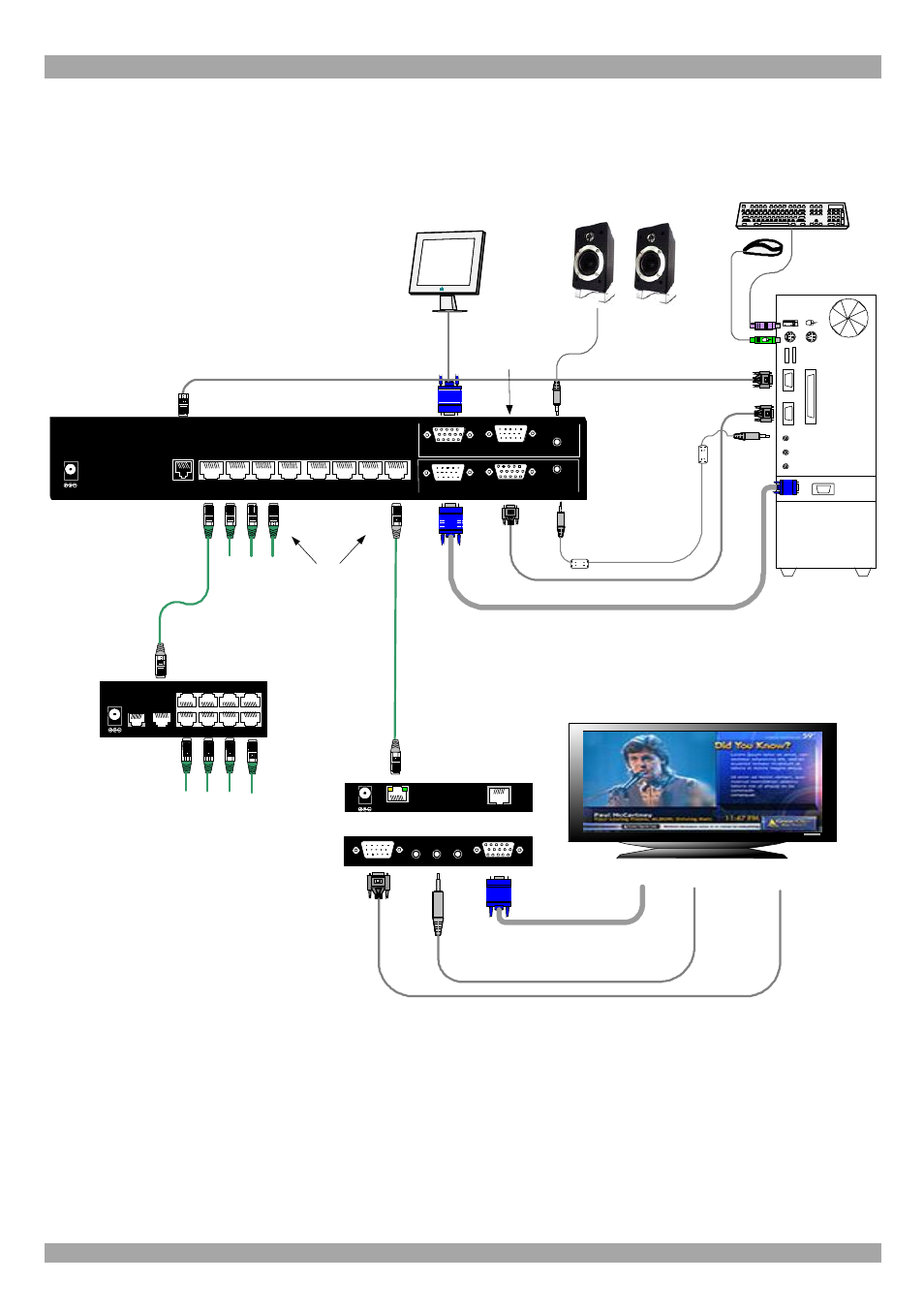

Figure 21 Connection diagram
Broadcaster/Transmitter connections
1. Connect the Video cable to the Broadcaster/Transmitter Video In port and the
Computer’s Video card.
2. Connect the Serial Extender cable to the Broadcaster/Transmitter Serial port and
the Computer’s Serial port.
