USER GUIDE
22
12. Topology
To utilize the Service Utility functions you must configure the system topology. To
configure the system topology, click the Topology tab* or select View/ Topology.
(*For some operating systems the tabs on the Service Utility need to be double-
clicked).
The following appears.
Title line
(Indicates if the
Utility is online
or offline)

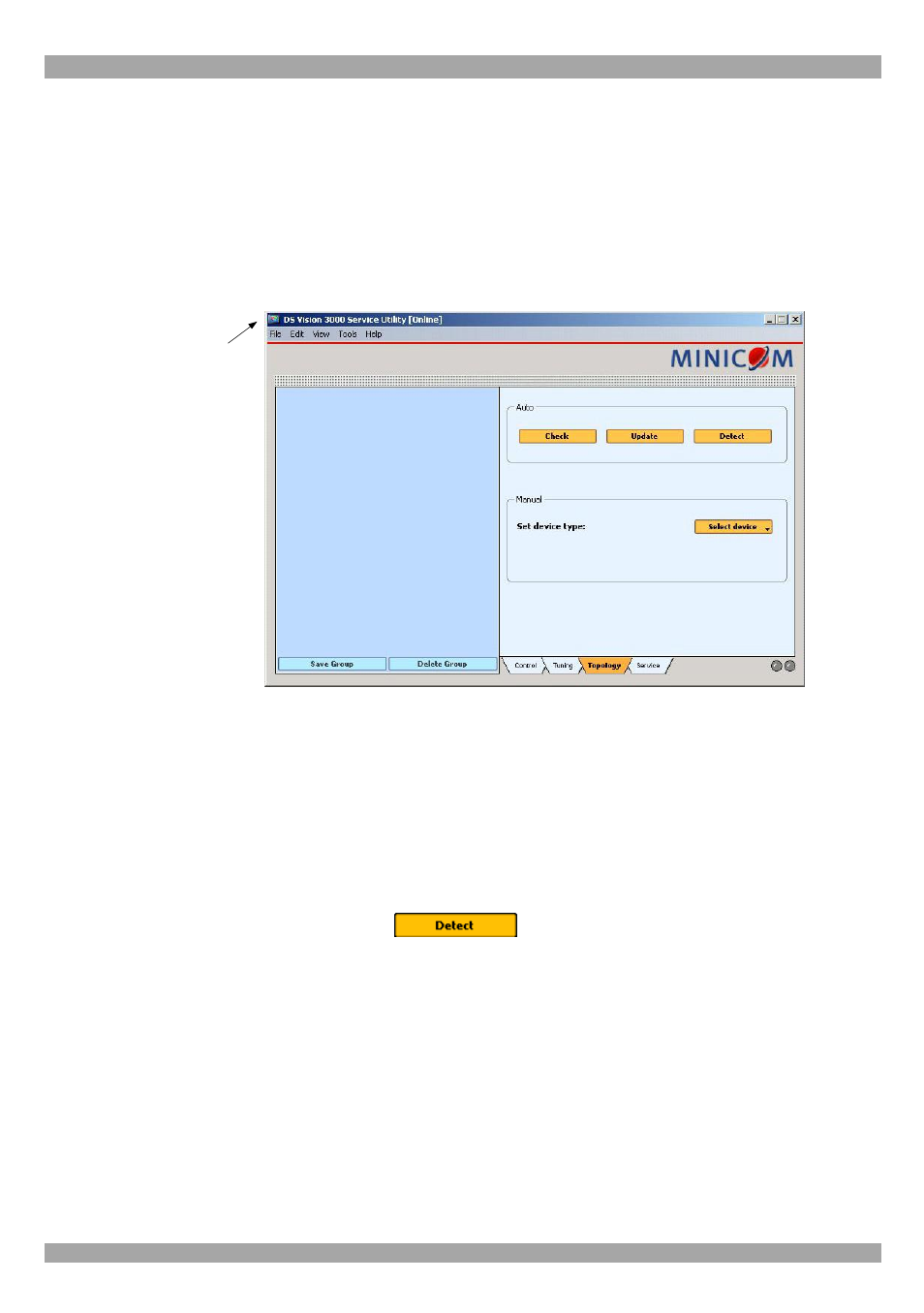

Figure 26 Topology tab
You can detect the topology automatically or configure it manually.
Auto-detect
Note! Auto-detection only works if the Service Utility is online. Check the Title
line of the Service Utility window, see Figure 26. When offline, connect to the
system by choosing File/Connect.
To auto-detect the topology, click and when prompted click Yes.
A detected topology appears on the left showing all connected DS Vision units, as
in the following figure.
