6

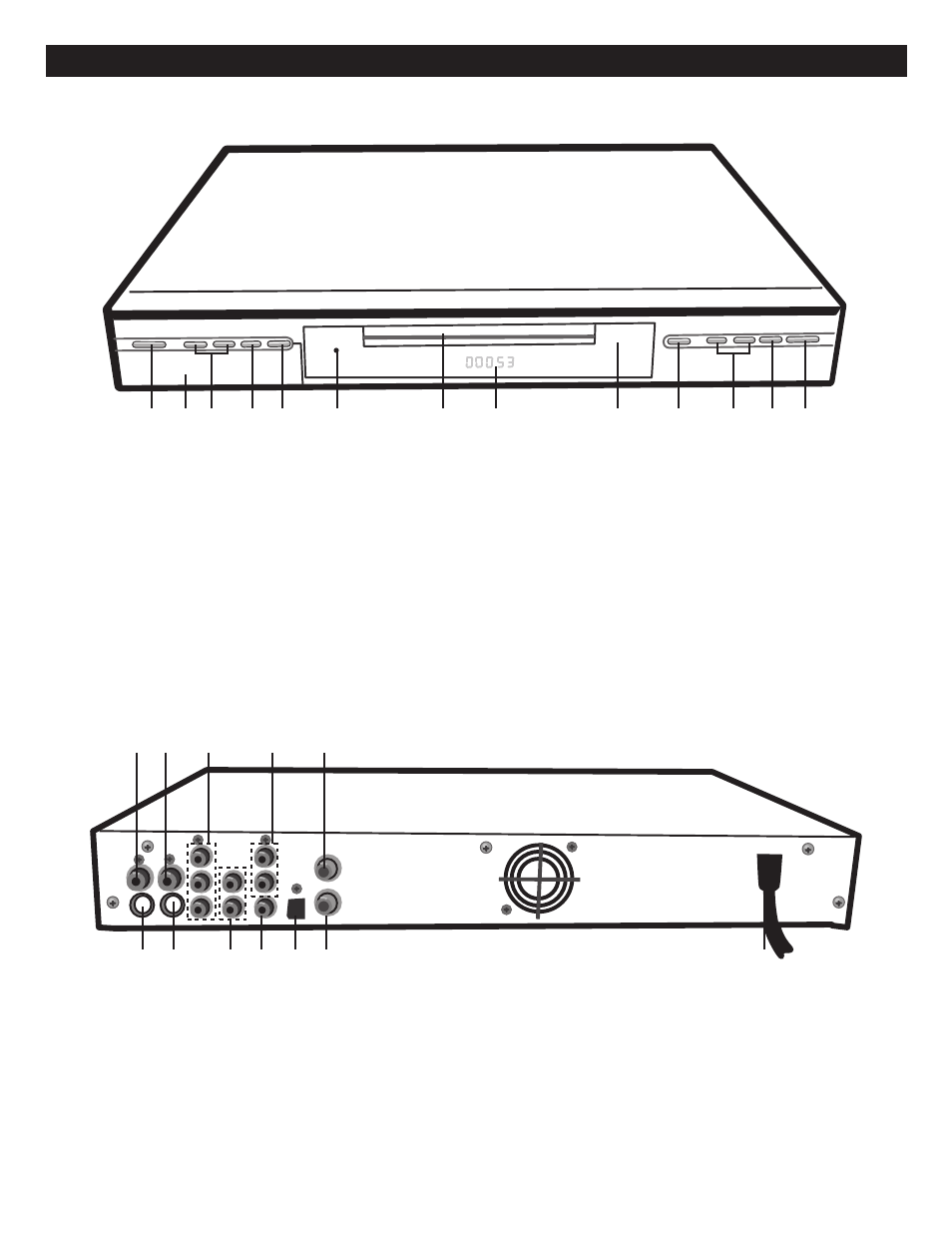

LOCATION OF CONTROLS
1. ON/STANDBY Button
2. DV IN Jack, S-Video IN Jack and A/V IN
Jacks (under door)
3. CHANNEL Up/Down Buttons
4. SOURCE Button
5. RECORD Button
6. STANDBY Indicator
7. Disc Tray
8. Display
9. Remote Sensor
10. OPEN/CLOSE Button
11. SKIP o / n Button
12. STOP ( ■ ) Button
13. PLAY/PAUSE ( ®p ) Button
FRONT
1 3 2 4 5 6 8 7 10 9 13 12 11
1. Video IN Jack
2. Video OUT Jack
3. Component Video (Y, U, V) Output Jacks
4. Stereo Audio Left/Right Input Jacks
5. RF IN Jack
6. S-Video IN Jack
7. S-Video OUT Jack
8. Stereo Audio Left/Right Output Jacks
9. Coaxial Digital Audio Output Jack
10. Optical Digital Audio Output Jack
11. RF OUT Jack
12. AC Power Cord
REAR
12 6 7 8 10 11 9
2 3 4 5 1
