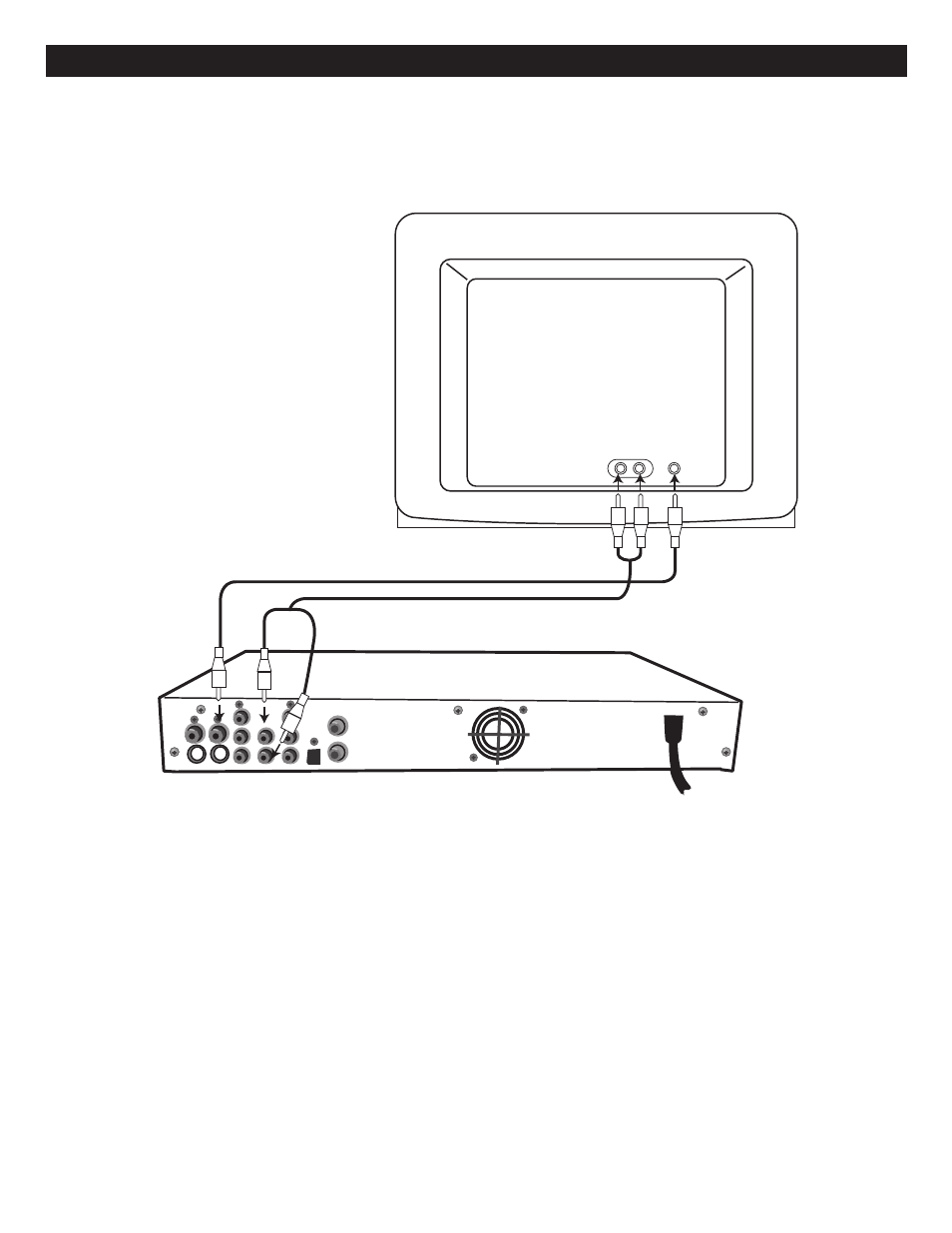

CONNECTING THE DVD TO A TV USING THE AUDIO/VIDEO OUTPUT JACKS
Audio Cable (Included)
Video Cable (Included)
From
Video Out From
Audio
Out
To
Audio In
To
Video In
NOTES FOR CONNECTING TO A TV:
• If your TV has a Component input, connect the DVD recorder with the component cable for best
results, otherwise use the S-Video or Video OUT jack(s) on the DVD recorder.
• Set the TV’s TV/VIDEO button or switch to the VIDEO setting.
• When connecting the DVD, refer to the owner’s manual of the TV, as well as this manual.
• When connecting the DVD to the TV, make sure the power is off and both units are unplugged
before making any connections.
• If your TV only has one audio input, the use of a “Y” connector may be necessary. Visit your local
electronics supply store.
• Connect the DVD recorder to your TV directly. If you connect the DVD recorder through a VCR, the
playback picture will be distorted because DVD video discs are copy protected.
• Connect a cable, etc. signal as described on the top of page 9 to use the tuner capabilities of this
unit and one of the OUT video connections on the CONNECTION pages to play a disc.
