15
ENGLISH
OUT
IN
OUT
IN
NOTE: If a VHF or UHF antenna is
used, set the TV/CATV
MENU option to "TV"
mode.
NOTE: If a VHF or UHF antenna is
used, set the TV/CATV
MENU option to "TV"
mode.
NOTE: If a VHF or UHF antenna is
used, set the TV/CATV
MENU option to "TV"
mode.

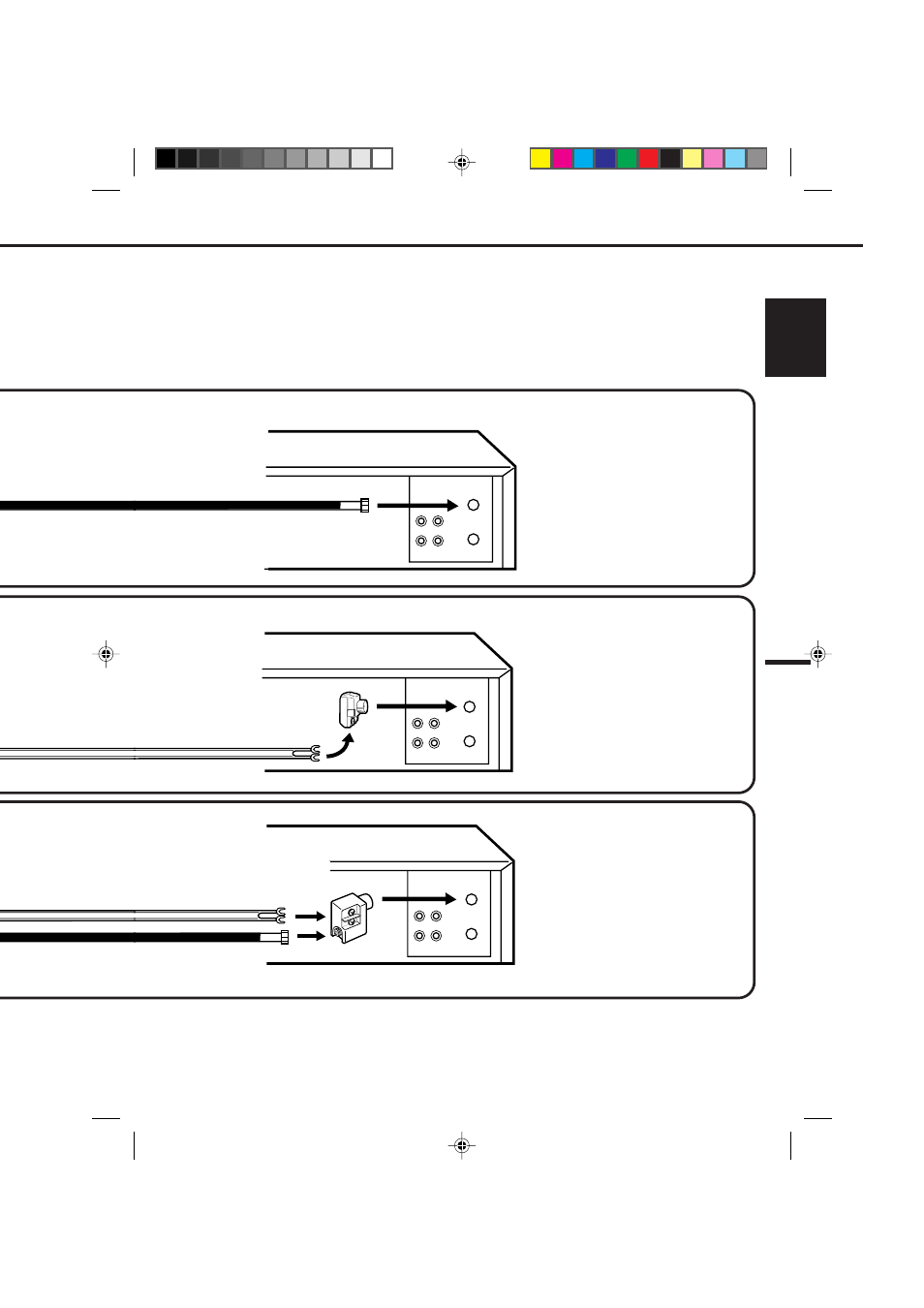

This VCR has a single 75 ohm antenna input for connection to an antenna (VHF/UHF) or cable (CATV) system.
If you have separate VHF and UHF antennas (number 3 below), use a combiner to connect the antennas to the VCR.
COMBINER
75/300 OHM INPUTS
75 OHM OUTPUT
(NOT SUPPLIED)
VCR
MATCHING TRANSFORMER
300 OHM INPUT
75 OHM OUTPUT
(NOT SUPPLIED)
VCR
VCR
OUT
IN
