CHANNEL
STOP/EJECT
PLAY
POWER
REC/OTR
VIDEDO
AUDIO
IN
FRONT
STOP/EJECT button - Press once to stop the tape
in any mode. Press again (on the VCR) to eject the
tape.
CHANNEL
▲
/
▼
buttons - Used to select a
channel for viewing or recording.
Remote Sensor - Signals from the Remote
Control are received here.
AUDIO/VIDEO IN jacks - Audio and video signal
cables from an external source can be connected
here.

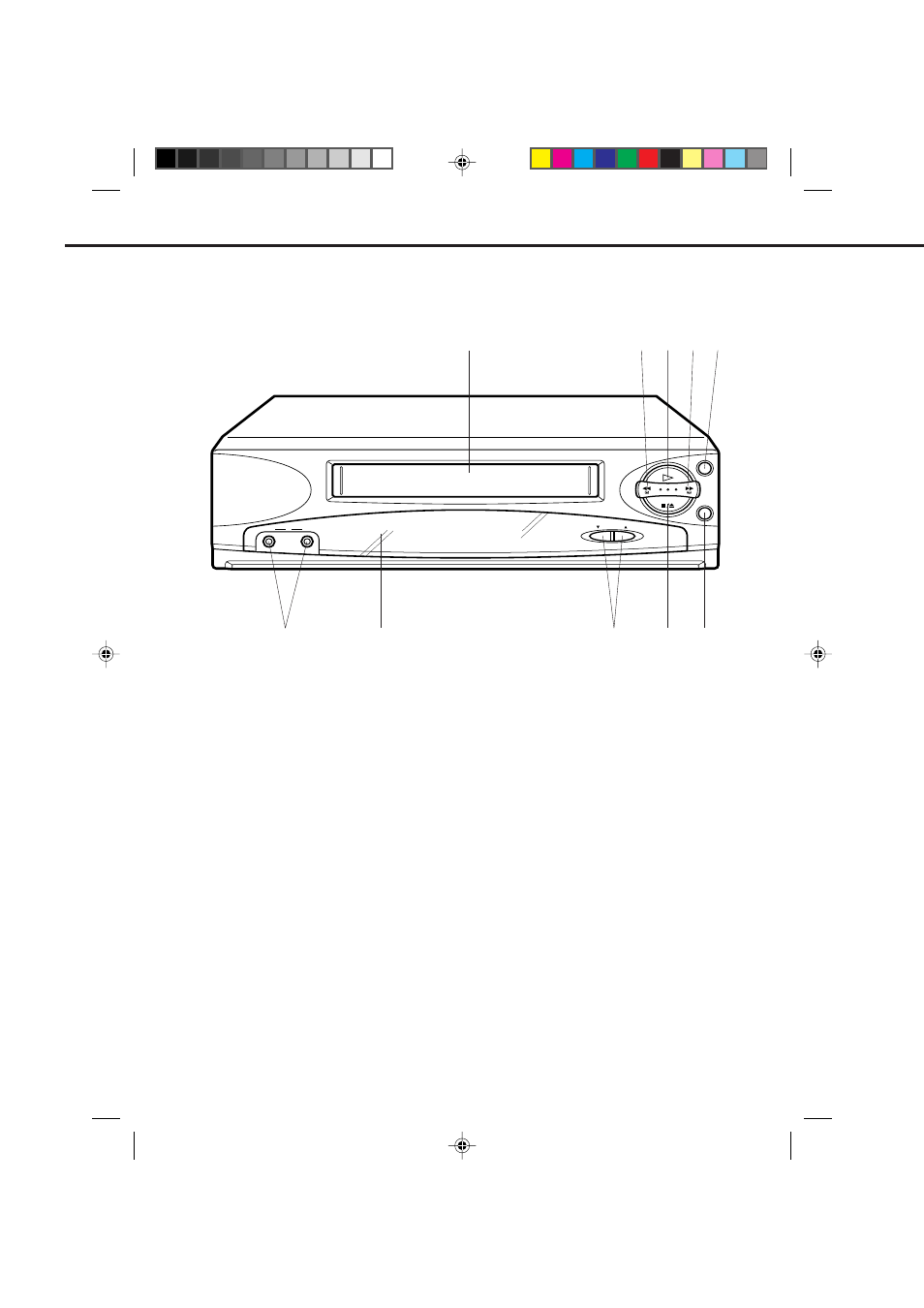

LOCATION OF CONTROLS
7.
8.
9.
10.
8
DESCRIPTION OF CONTROLS
10
1
3
2
5
4
7
6
9
1.
2.
3.
4.
5.
6.
Cassette Loading Slot - To insert or remove a
video tape.
(Rewind) button - In the STOP mode, this
button rapidly winds the tape backwards. In the
PLAY mode, this button activates Reverse Search.
PLAY button - Press to play a prerecorded tape.
(Fast Forward) button - In the STOP mode,
this button rapidly winds the tape forward. In the
PLAY mode, this button activates Forward Search.
POWER button - Turns the VCR power on and off.
REC/OTR button - Press once to start normal
recording. Additional presses activate One Touch
Recording.
▲ ▲
▲
▲
