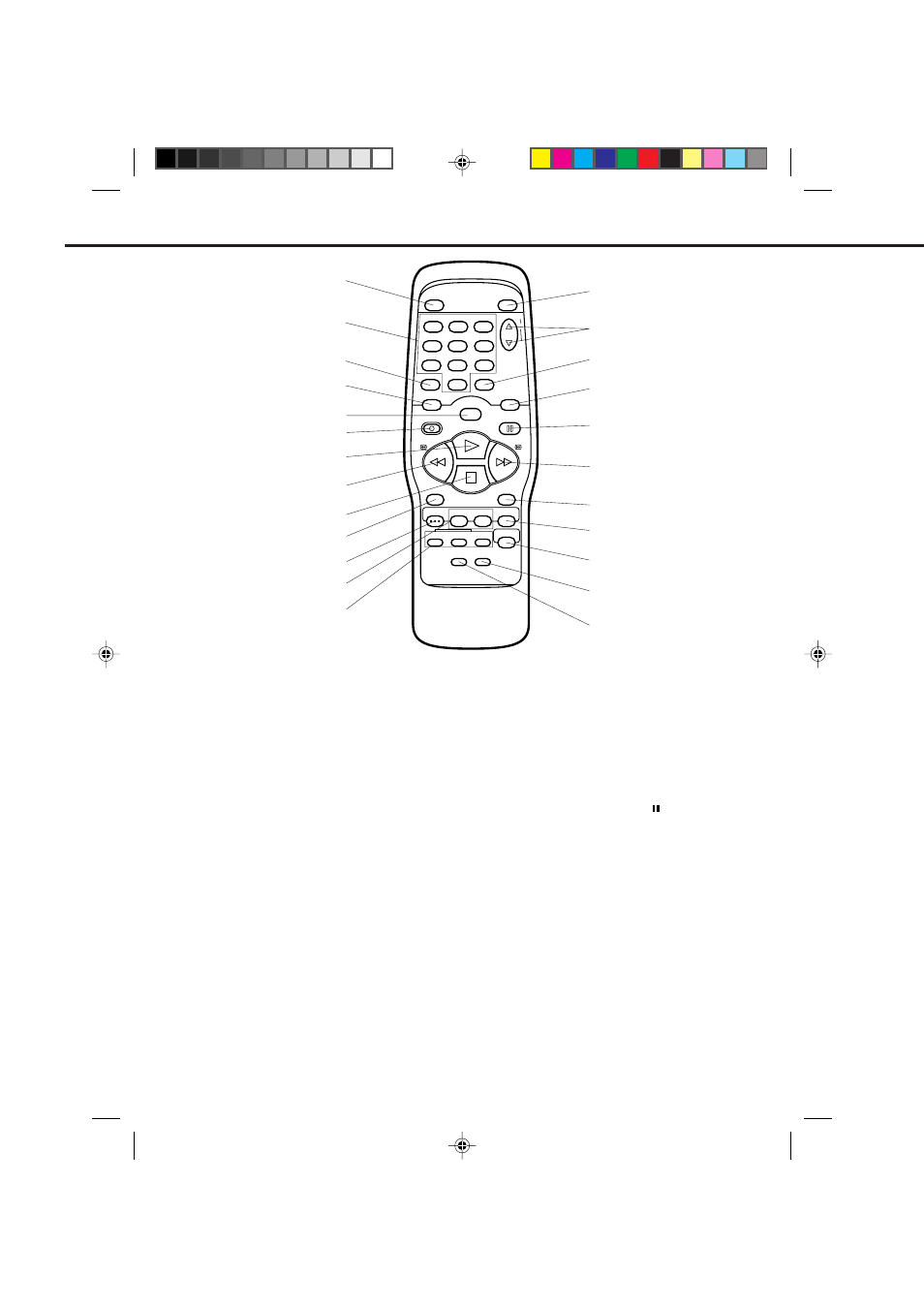

DESCRIPTION OF BUTTONS
13
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
POWER button - Turns the VCR power on and off.
Direct Channel Selection buttons (0-9) - Allow direct
access to any channel.
CALL button - Displays the present time/day of the week,
channel, counter, speed selection and VCR mode on
the TV screen.
INPUT SELECT button - Switches the program for
viewing between the VCR and an external input source.
SLOW button - Press to play back a tape in slow
motion or to advance the tape one frame at a time
during still playback.
REC/OTR button - Press once to start normal recording.
Additional presses activate One-touch Timer Recording
PLAY button - Press to play a prerecorded tape.
REW button - In the STOP mode, this button rapidly
winds the tape backwards. In the PLAY mode, this button
activates Reverse Search.
STOP button - Press once to stop the tape.
SPEED (SP/LP/SLP) selector button - Sets the tape
speed for recording.
MENU button - Press to display the on-screen menu
function.
SET +/– buttons - Used to set the clock, timer recording,
auto repeat, language and noise mute.
AUTO/Manual TRACKING buttons - Allow automatic
or manual adjustment of tracking to minimize picture
noise during playback.
24
23
22
20
19
18
15
16
17
14
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
EJECT button - Press to eject the tape.
CHANNEL
▲ / ▼ buttons - Used to select a channel
for viewing or recording.
TV/VCR selector button - Switches between TV
and VCR.
COUNTER RESET button - Resets the Real Time
Counter to 00:00:00.
PAUSE/STILL button - During recording, this button
temporarily stops the tape. The "
" will appear on the
screen. During playback, it stops the tape and displays
a still image on the TV screen.
F. FWD button - In the STOP mode, this button rapidly
winds the tape forward. In the PLAY mode, this button
activates Forward Search.
ENTER button - Used to enter information for timer
recording, auto repeat, language and clock setting.
CANCEL button - Used to clear the selected timer
recording program.
TIMER REC button - Used to set the VCR to start
recording at a preset time.
CLOCK/COUNTER selector button - Switches
beyween the clock and the Real time tape counter.
SKIP SEARCH button - Press in playback mode to search
forward trough approximately 60 seconds of tape.
