24 3. TV Connections
Composite Video Connection
Required: Analog stereo audio and composite video
cables supplied with the camcorder.
1. Connect a composite video cable from
VIDEO OUT
on the camcorder to INPUT 3/VIDEO or VIDEO/Y on
the TV.
2. Connect left (white) and right (red) audio cables
from AUDIO OUT on the camcorder to INPUT 3/
AUDIO L and AUDIO R on the TV.
I
N P
U T L-AUDIO-R VIDEO/Y Pb Pr 3
USB L-AUDIO-R VIDEO/Y

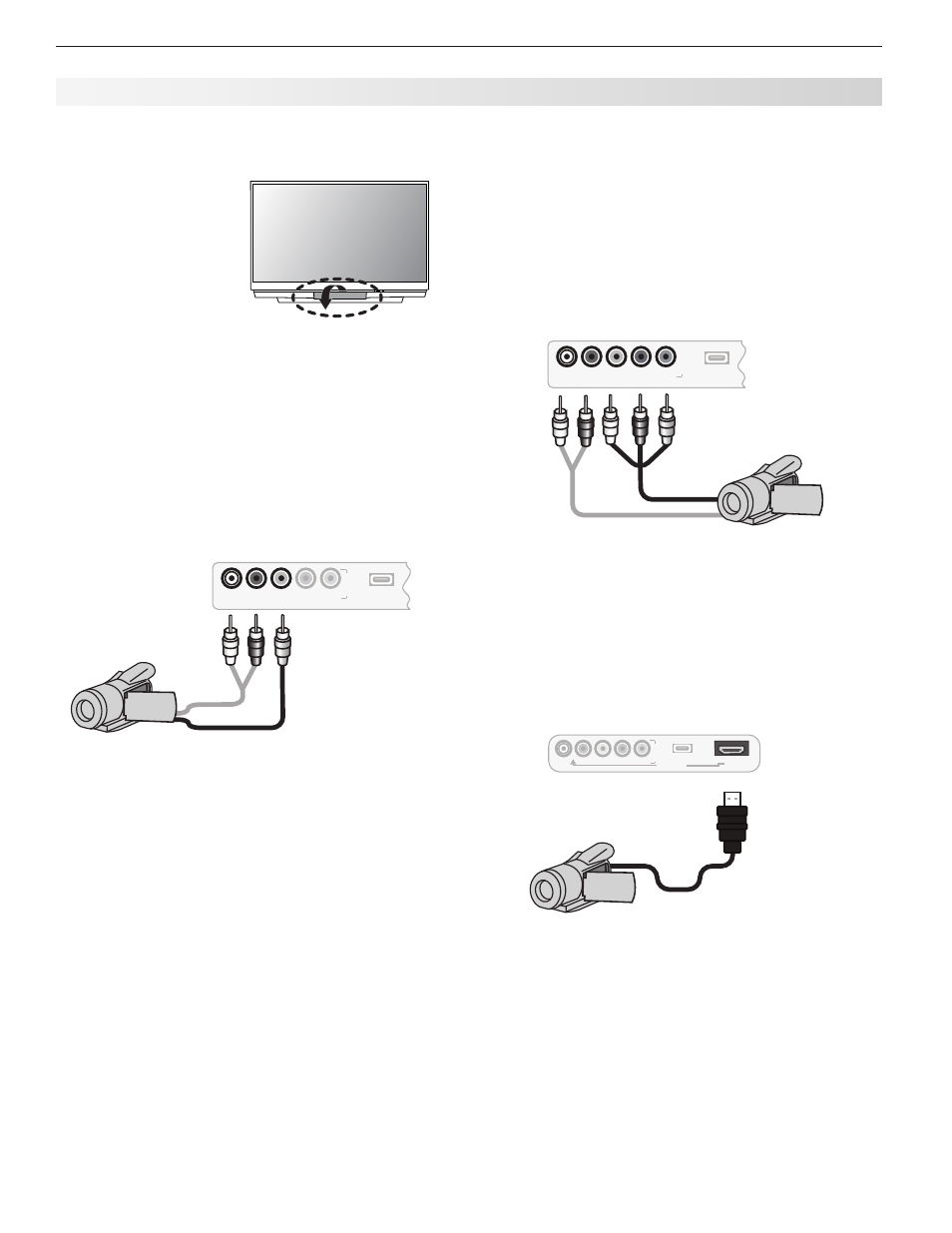

Figure 13. Composite video connections for a camcorder
HDMI Connection
Required: HDMI cable supplied with the camcorder.
Connect the camcorder to the TV’s HDMI 4 jack on the
front panel.
I N P U T L-AUDIO-R VIDEO/Y Pb Pr 3 USB
HDMI 4 DVI AUDIO HDMI 4
Figure 15. HDMI connection for a camcorder.
Component Y Pb Pr Video Connection
Required: Analog stereo audio and component video
cables supplied with the camcorder.
1. Connect component video cables from
VIDEO OUT
on the camcorder to the TV’s INPUT 3 COMPONENT
jacks on the front panel.
2. Connect left (white) and right (red) audio cables
from AUDIO OUT on the camcorder to AUDIO L and
AUDIO R on the TV.
I
N P
U T L-AUDIO-R VIDEO/Y Pb Pr 3
USB L-AUDIO-R VIDEO/Y Pb Pr L-AUDIO-R VIDEO/Y
Figure 14. Component video connections for a camcorder
Camcorder
Inputs on the front of the TV offer the most convenient
way to connect a camcorder.
Use jacks on the TV
front panel to connect a
camcorder
