22 3. TV Connections

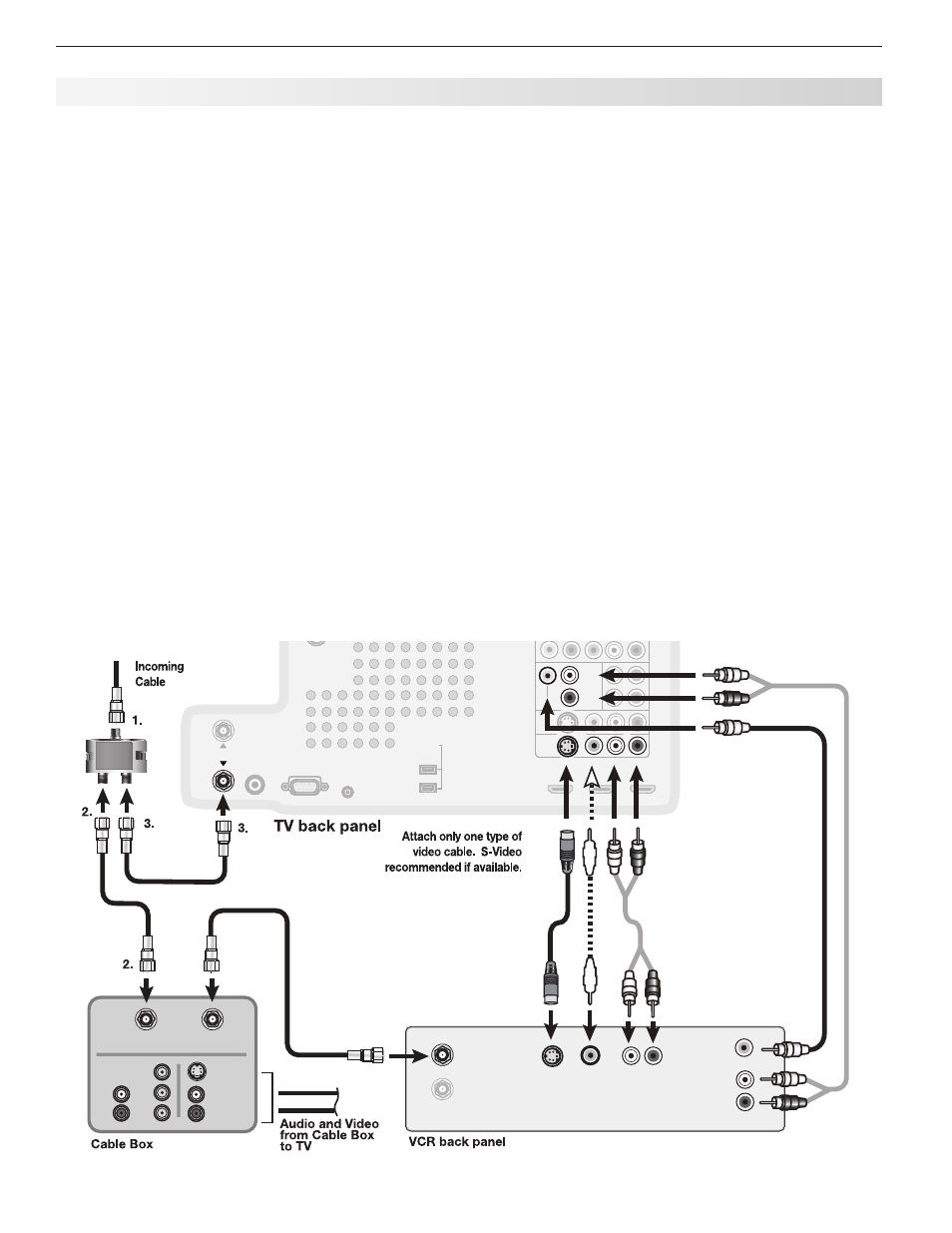

Figure 10. Connecting a VCR to a cable box
065
7*%&0
065
7*%&0
*/
*ODPNJOH
$BCMF
"6%*0
065
"6%*0
*/
*/
"/5&//"
-
-
3
3
3
-
$"#-&
065 */
:
1C
1S 3
-
3
-
"6%*0
47*%&0
COMPONENT 1
Y Pb Pr (480i/480p/720p/1080i)
COMPONENT 2
RECORD
OUTPUT
OUTPUT
DIGITAL
IR EMITTER
NetCommand
RS-232C
AUDIO
INPUT 1
INPUT 2
HDMI
VIDEO: 480i / 480p / 720p /
1080i / 1080p
W-SVGA, XGA, W-XGA,
AUDIO: LINEAR PCM
PC: VGA, W-VGA, SVGA,
1 (LEFT) , , 2 (MIDDLE) 3 (RIGHT)
DVI / PC
VIDEO
AUDIO-
AUDIO-
RIGHT
LEFT
L (MONO)
INPUT
AVR
AUDIO
AUDIO
OUTPUT
S-VIDEO VIDEO - AUDIO - R
L (MONO)- AUDIO - R Y Pb Pr
EMITTER
3D GLASSES
SXGA / 720p / 1080p
IEEE 1394
ANT 2 / AUX
ANT 1 / MAIN
RECORD
OUTPUT
AUDIO-
AUDIO-
RIGHT
INPUT 2
L (MONO) S-VIDEO VIDEO - AUDIO - R
LEFT
ANT 1 / MAIN
*/
065 065
B
B
C
C
VCR to a Cable Box (Audio & Video)
Required: Two-way RF splitter, three coaxial cables, right
and left audio cables, S-Video or composite video cable,
plus component or S-Video cables and audio cables
required to connect the TV to the cable box.
1. Connect the incoming cable to IN on the RF splitter.
2. Connect one coaxial cable from OUT on the RF split-
ter to CABLE IN on the cable box.
3. Connect one coaxial cable from OUT on the RF
splitter to ANT 1/MAIN on the TV back panel. This
connection also allows you to use the TV Guide On
Screen and Split Screen features.
4. Connect one coaxial cable from OUT on the cable
box to ANTENNA IN on the VCR back panel.
5. Connect the cable box outputs to the TV as shown
in one of the options listed below. This connection
allows the TV to receive the best available signal
directly from the cable box. See the referenced
figures in this chapter, “TV Connections.”
• Figure 1: Component video output to the TV’s
COMPONENT Y Pb Pr jacks; analog stereo audio
to the associated
AUDIO jacks.
• Figure 2: HDMI output to the TV’s HDMI jack.
• Figure 3: S-Video output to the TV’s
INPUT S-VIDEO jack; analog stereo audio to the
associated
AUDIO jacks.
6. To use the TV speakers with the VCR, connect left
(white) and right (red) audio cables from AUDIO OUT
on the VCR back panel to INPUT AUDIO L (MONO) and
R on the TV back panel. If your VCR is mono (non-
stereo), connect only the white (left) cable.
7. Connect either an S-Video or composite video cable
from VIDEO OUT on the VCR back panel to INPUT/
VIDEO or INPUT S-VIDEO on the TV back panel.
Connect only one type of video cable. S-Video is
recommended, if available.
Optional
8. To use the TV Guide On Screen recording feature to
record to the VCR from ANT 1 or ANT 2:
a. Connect left (white) and right (red) audio cables
from AUDIO IN on the VCR back panel to
RECORD OUTPUT/ AUDIO LEFT and AUDIO RIGHT
on the TV back panel.
b. Connect a video cable from VIDEO IN on the VCR
back panel to RECORD OUTPUT VIDEO on the TV
back panel.
Note: When using this connection configuration with the con-
nections used in step 5, it is possible to view live cable
programs through the VCR Device. For best picture
quality always view live cable programs directly from the
TV input connected to the cable box device.
