NET101 User’s Manual -23-
Appendix A: Methods to Update NET101 Firmware
Appendix A: Update NET101 Firmware
You can update NET101’s firmware using any of the following methods.
Method 1: Using Netility
(1) Use “Download Firmware” function under Netility to update it. (refer to
Section …)
Method 2: Using FTP
Windows FTP is another way to upload the latest firmware into NET101. You can
also use other FTP client software to do this. In the following example, NET101 IP
address is 192.168.50.179

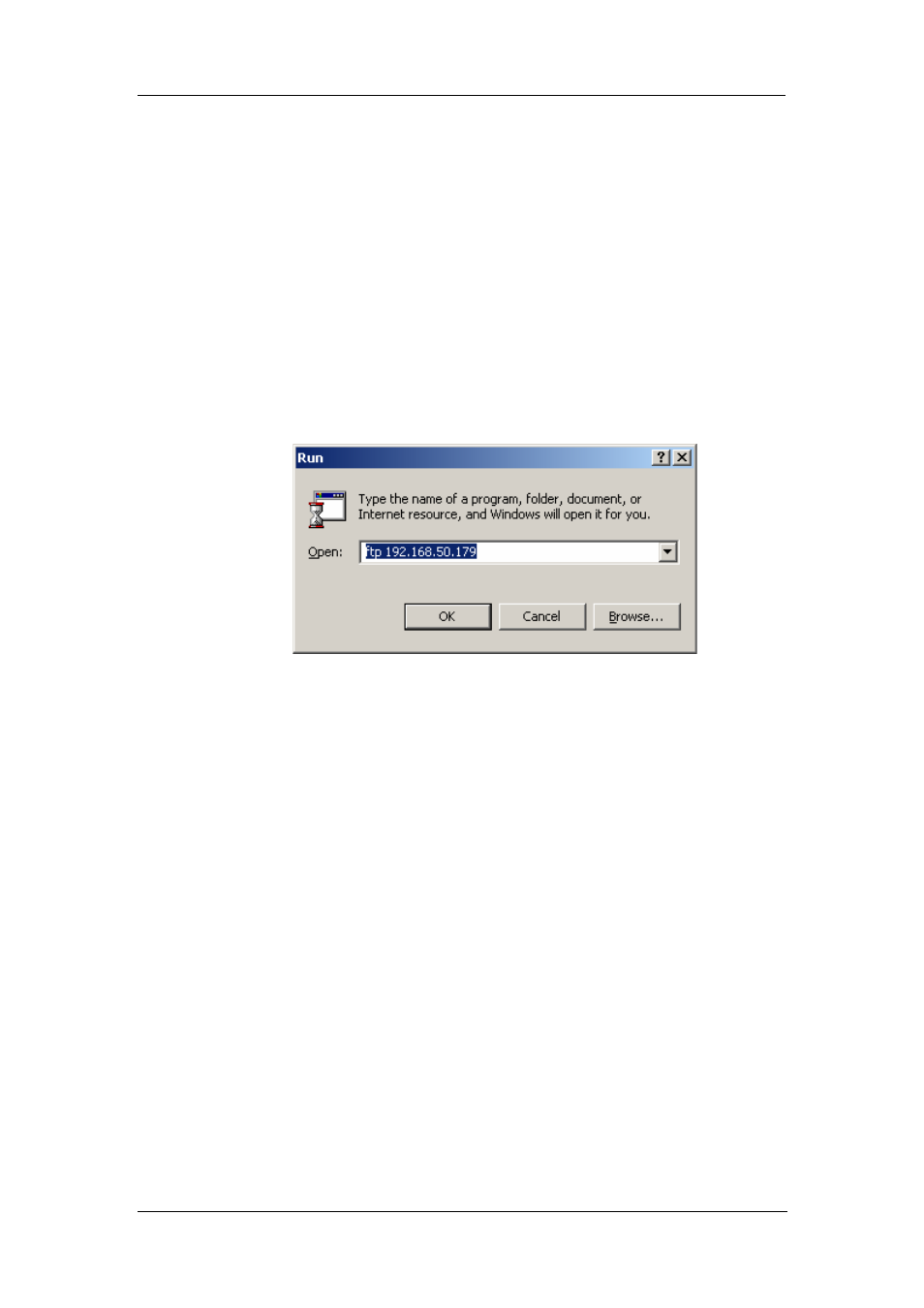

(1) Click “Start” on Windows taskbar, then “Run..”, type in “ftp 192.168.50.179”
(2) Click “OK”
(3) The systems will requests for your User Name and Password. Enter “admin”
for User Name and press “Enter”. The default password is left blank.
Once the User Name and Password is verified, the server will response with
“230 OK” to indicate that Login is successful.
If you enter the wrong Username or Password, the server will response with
“530 Not Logged in”.
(4) FTP commands:
ls : This command request the server to list all files and sub-file in the current
menu. User may finds out the firmware version of the NET101 of its IP.
put : This command ask the client to copy its specific file
route to the Server point. Use this to upload the latest firmware to your
NET101
quit : This command allow the user to logout and close the FTP connection.
Illustration: The picture shows, that the latest NET101 firmware file uploaded
from the local computer located in (c:\work\netagent\prjs\nag\2.32.DK520.bin)
to the NET101 with an IP address 192.168.50.179
