NET101 User’s Manual -10-
Chapter 4: Using Netility to Setup IP & Update Firmware

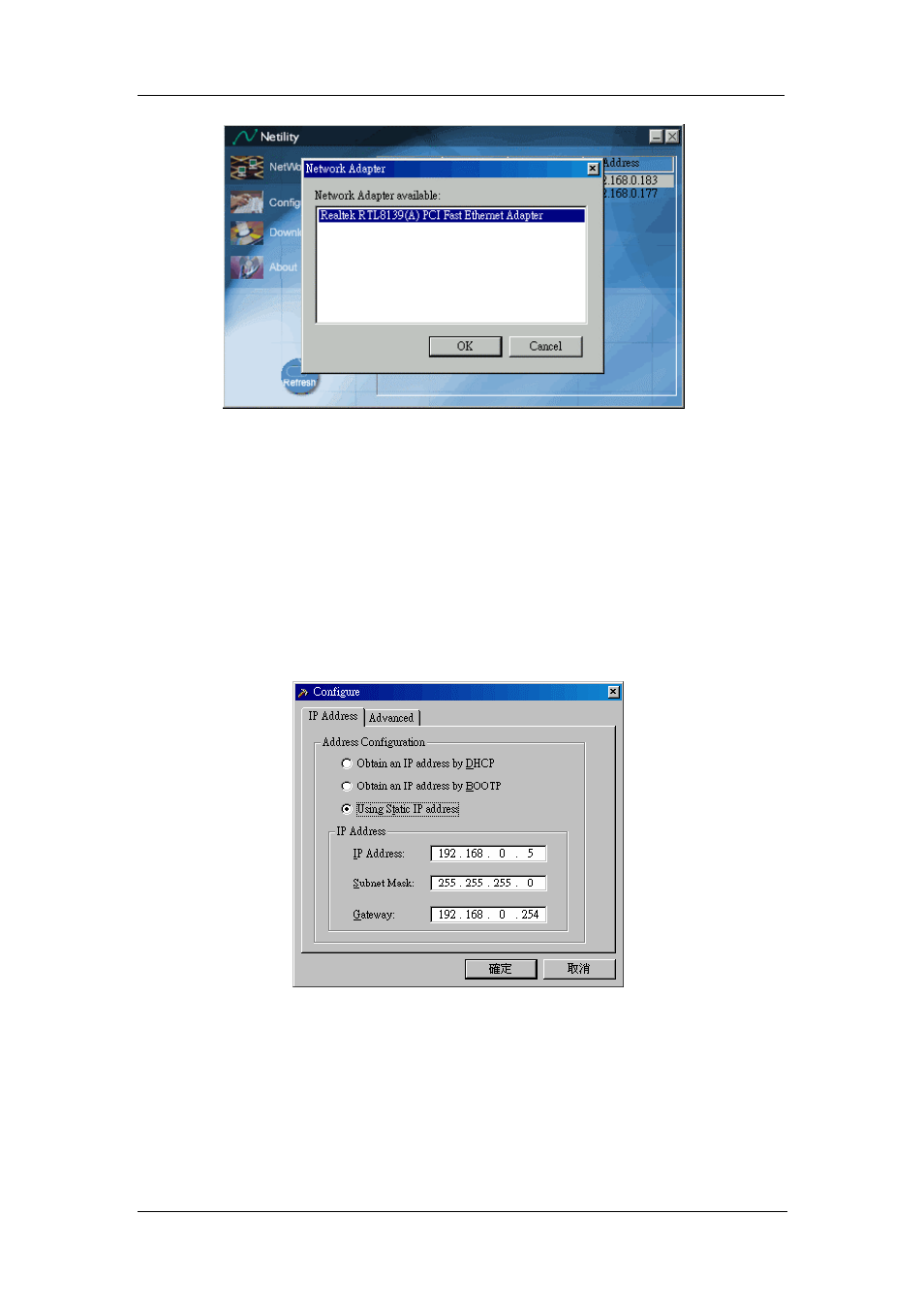

Fig.10 Netility: Network Selection
2.2 Configure
Select NET101 on the right display screen, and then click “Configure”. This will bring
up the IP Address Configuration window. Here, the user can set;
• IP
Address
• Advanced (for port setting configuration)
2.2.1 IP Address
This section sets an IP Address for NET101. Enter your IP Address if you have a
Static IP otherwise choose Obtain an IP address by DHCP.
Fig.11 Netility: Set an IP Address for NET101
Once the IP address is set, you will be able to connect to the NET101 webpage from a
standard browser.
Obtain an IP address by DHCP or BOOTTP – the IP address, Subnet Mask and
Gateway is acquired automatically by the system.
