Recording
Basic Setup
Connections
Playback
Editing
Introduction
Function Setup
Others
Español
external device
(camcorder, VCR etc.)
IN
IN
OUT
VIDEO
IN
AUDIO IN
(
L1
)
S-VIDEO
S-VIDEO AUDIO OUT
OUT
L
R
VIDEO
OUT
Y
ANTENNA
R
L
COAXIAL
AUDIO OUT
L
R
VIDEO
OUT
S-VIDEO
OUT
AUDIO OUT
DV-OUT
L
R
VIDEO
OUT
S-VIDEO
OUT
VIDEO
IN
AUDIO IN
(
L1
)
S-VIDEO
S-VIDEO AUDIO OUT
COMPONENT
VIDEO OUT
IN
OUT
L
R
L
R
Y
P
B
/C
B
P
R
/C
R
VIDEO
OUT
VIDEO
IN
AUDIO IN
(
L1
)
S-VIDEO
IN
L
R
to L1 IN
S-video
cable
or
L2
L1
RCA
video
cable
RCA
audio
cable
front of this unit
rear of this unit
S-video
cable
DV cable
(4-pin)
RCA
video
cable
RCA
audio
cable
to L2 & L3 IN
or
or
L3
H2160MW9
or
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Video”, then
press [OK].
Submenu will appear.
3
Use [K / L] to select “Video Input”,
then press [OK].
4
Use [K / L] to select desired external
input, then press [OK].
Video Input
L1 (Rear)
L2 (Front)
5
Use [K / L] to select the input jack
type to connect, then press [OK].
If you want to use VIDEO IN jack, select “Video In”.
If you want to use S-VIDEO IN jack, select
“S-Video In”.
L1 (Rear)
Video In
S-Video In
6
Press [SETUP] to exit.

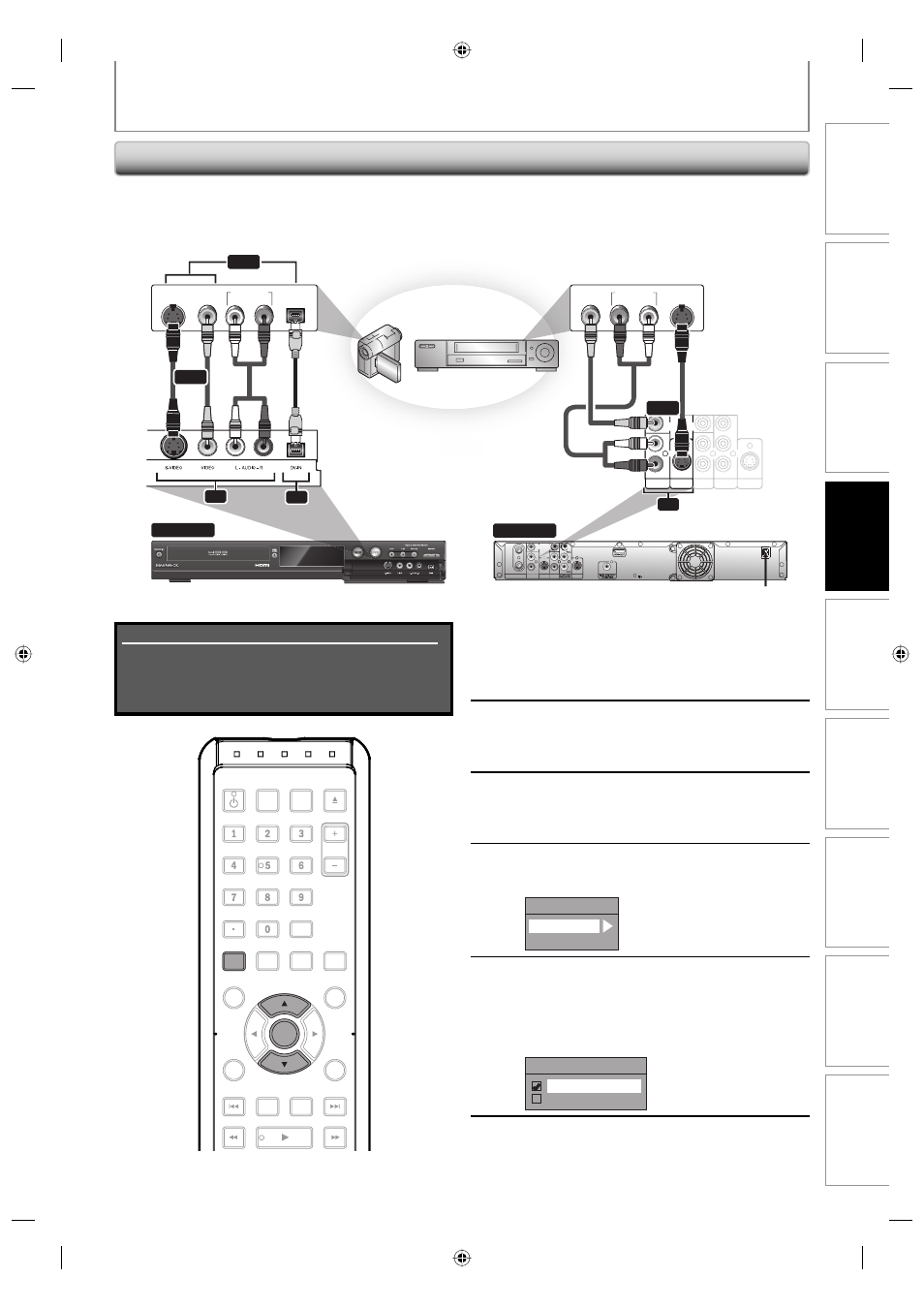

Connect the external device properly to the unit by using input jacks either L2 and L3 (Front) or L1 (Rear).
When connecting an external device of monaural output to this unit, use AUDIO L jack of L2 (Front) or L1 (Rear).
Use S-video or the RCA audio/video cables for this connection.
When connecting a DVC (digital video camcorder), use DV-IN jack of L3 (Front).
Settings for an External Device
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your
local store.
DUBBING
OPEN/
CLOSE
SOURCE
HDMI
.@/:
ABC
GHI
PQRS
TUV
SETUP
REPEAT
DISPLAY
AUDIO
DISC MENU
RETURN
TITLE
WXYZ
CLEAR
SPACE
JKL
MNO
DEF
OK
V.REPLAY
V.SKIP
DTV/TV
STANDBY-ON
CHANNEL
OK
SETUP
