Supplemental Restraint System Components
The supplemental restraint systems (SRS) have two basic subsystems:
l The air bag system with inflators and air bags.
l The electrical system with crash sensors and diagnostic module.
The air bags are mounted in the following locations:
l The steering wheel hub
l The front passenger dashboard
l The outboard sides of the front seatbacks
l The front and rear window pillars, and the roof edge along both sides
The air bags are out of sight until activated.

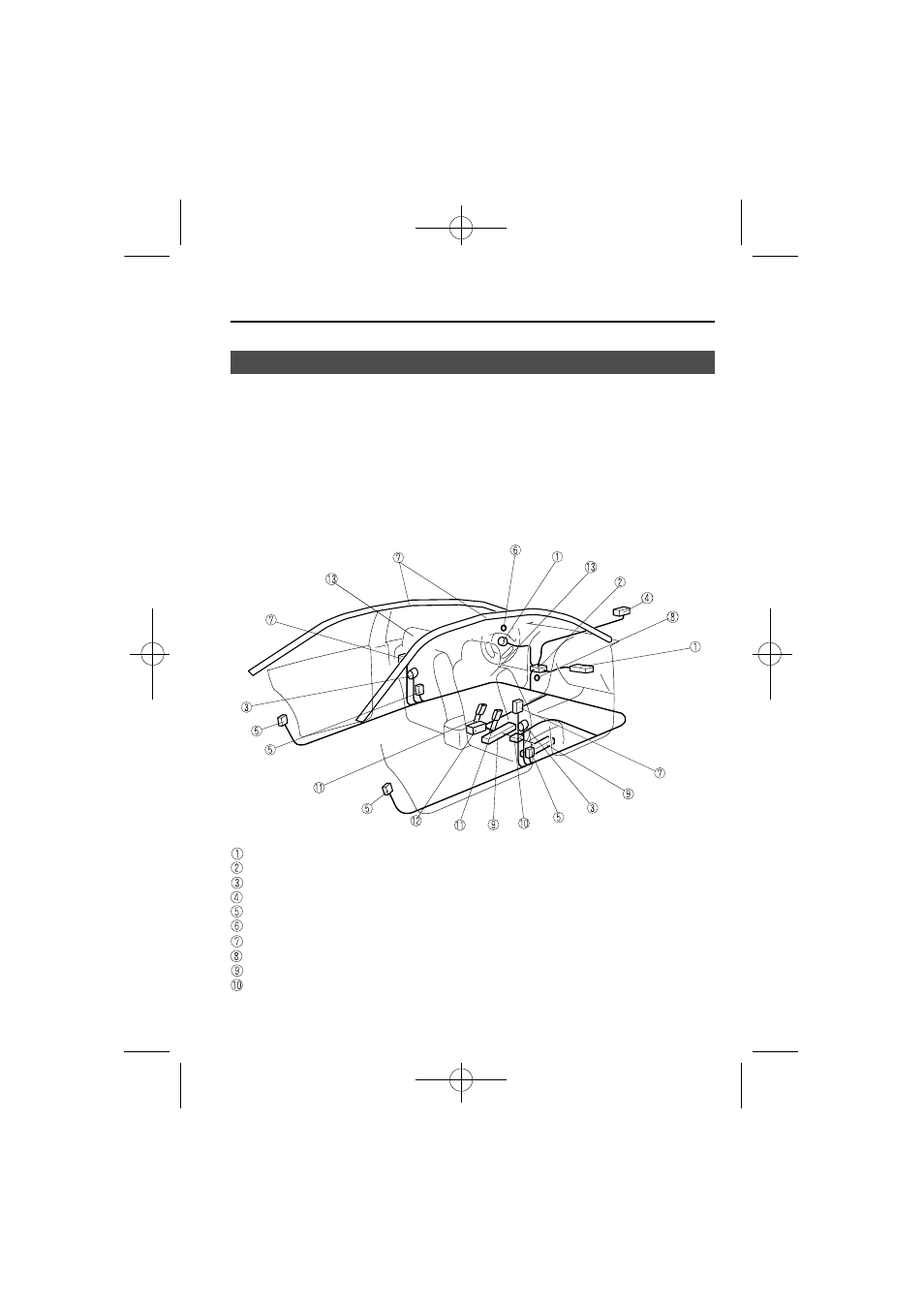

Driver/Front passenger inflators and air bags
Crash sensors, and diagnostic module (SAS unit)
Front seat belt pretensioners (page 2-21)
Front air bag sensor
Side crash sensors
Air bag/front seat belt pretensioner system warning light (page 2-55)
Side and curtain inflators and air bags
Front passenger air bag deactivation indicator light (page 2-47)
Front passenger seat weight sensors (page 2-47)
Front passenger seat weight sensor control module
