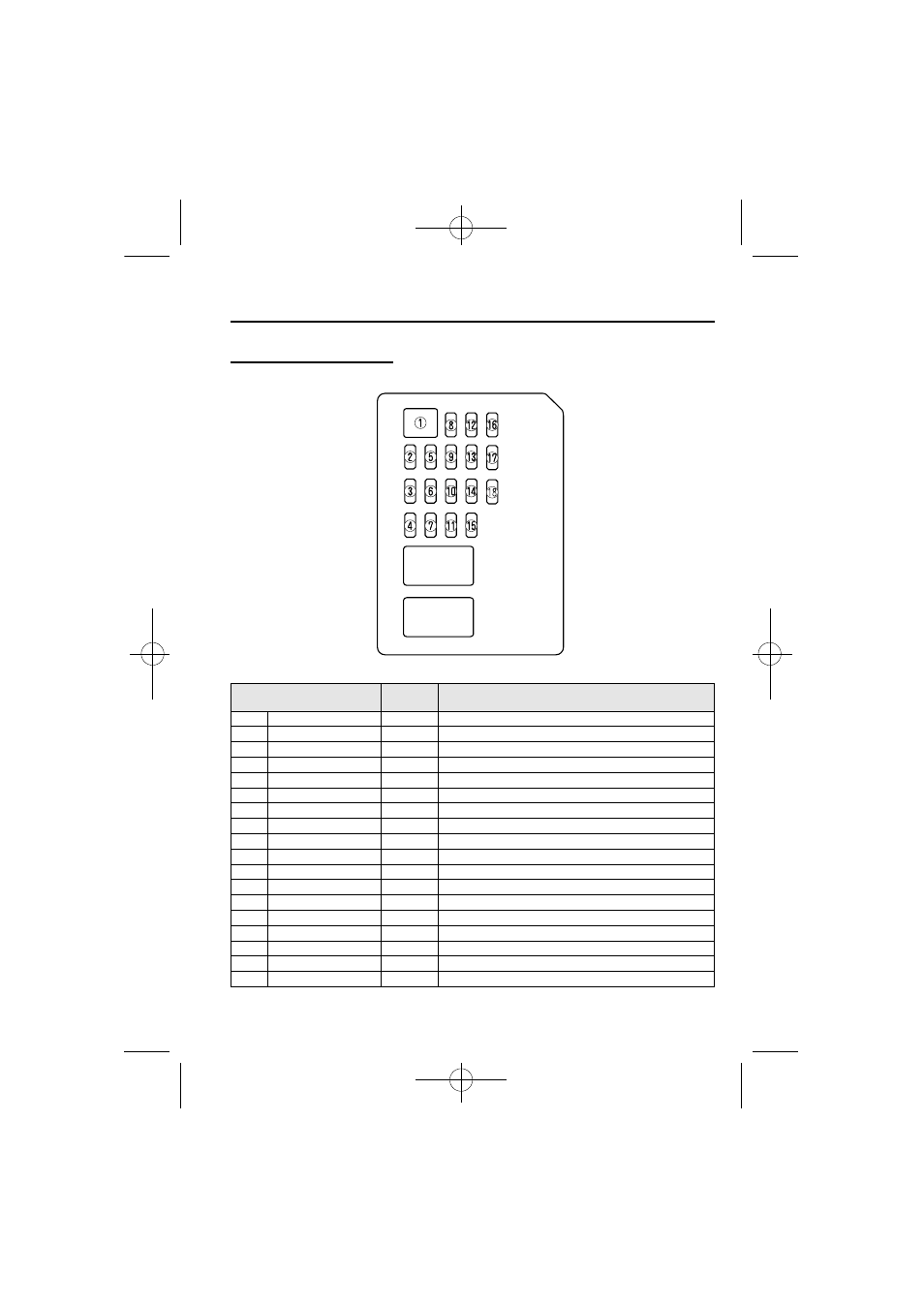

Fuse block (Passenger's side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 P.WIND 30 A Power window
2 METER IG 15 A For protection of various circuits
3 ILLUMI 7.5 A BCM, Illumination
4 MIRROR 5 A Power control mirror
5 SAS 5 A Air bag, ABS
6 ― ― ―
7 INT, LOCK/SHIFT 5 A AT shift
í
8 ― ― ―
9 HEGO 5 A Power control mirror
10 A/C 10 A Air conditioner
11 P.OUTLET/CIGAR 15 A Lighter
í
12 D.LOOK 25 A BCM, Door lock motor
13 ENGINE IG 15 A Engine control system
14 WIPER 25 A Windshield wiper and washer
15 ROOM 15 A Interior lights
16 SPARE ― ―
17 SPARE ― ―
18 SPARE ― ―
Maintenance and Care
Owner Maintenance
8-51 í
Some models.
