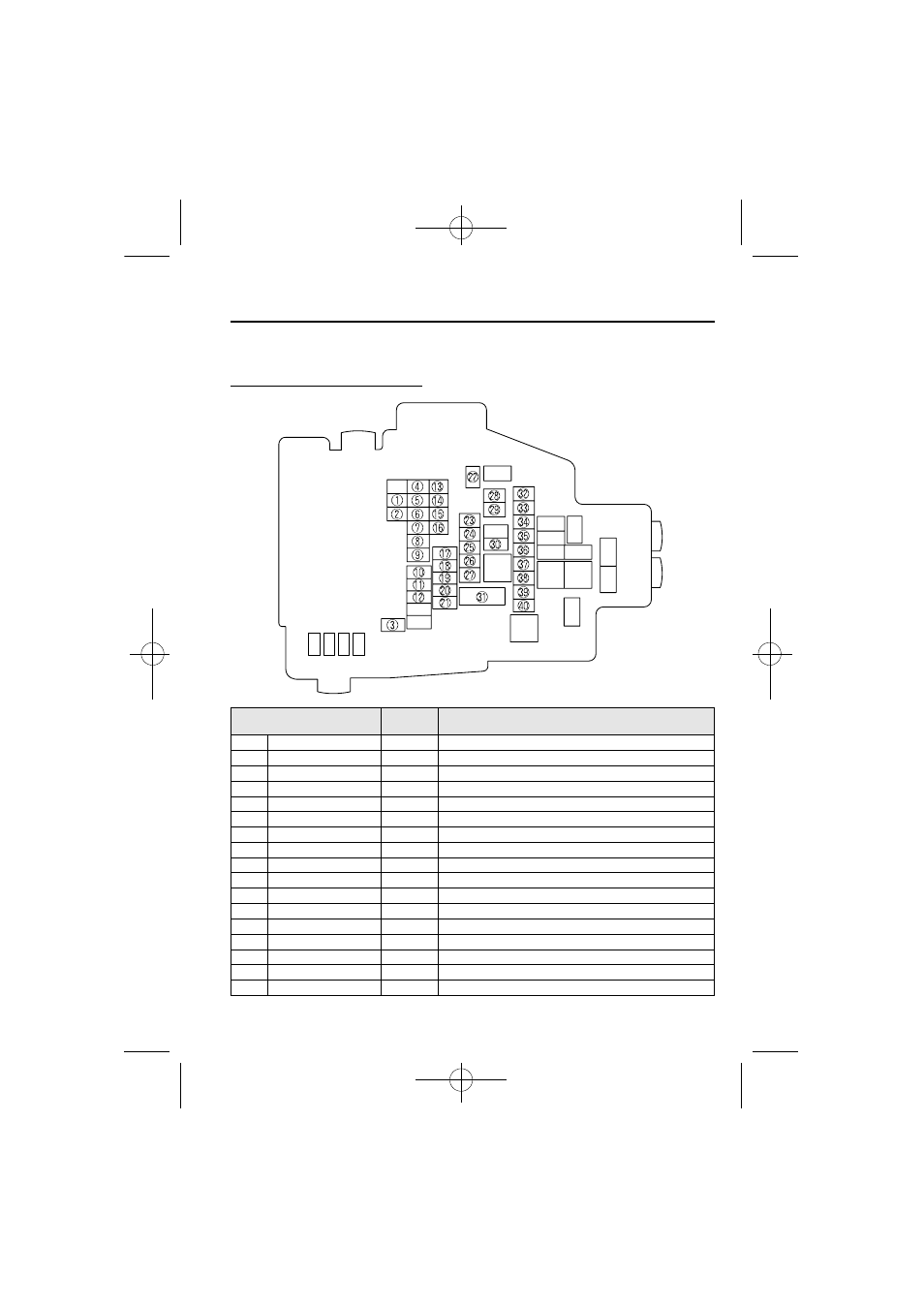

qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 M.DEF 10 A Mirror defroster
í
2 ST SIG 5 A Starter sig
3 ABS SOL 30 A ABS, DSC
í
4 P.WIND (P) 25 A Power window
5 P.SEAT (P) 30 A Power seat
í
6 SUN ROOF 15 A Moonroof
í
7 TAIL 15 A BCM, Tail lamp
8 P.OUTLET (R) 15 A Accessory sockets
9 AUDIO 30 A Audio system (Bose ® Sound System-equipped model)
10 ABS MOTOR 60 A ABS, DSC
í
11 P.WIND (D) 40 A Power window
12 DEFOG 40 A Rear window defroster
13 SEAT HEAT 20 A Seat heat
14 A/C 10 A Air conditioner
15 FOG 15 A Fog lights
í
16 BLOWER 2 15 A Blower motor
17 FAN 60 A Cooling fan
