qControl Switches

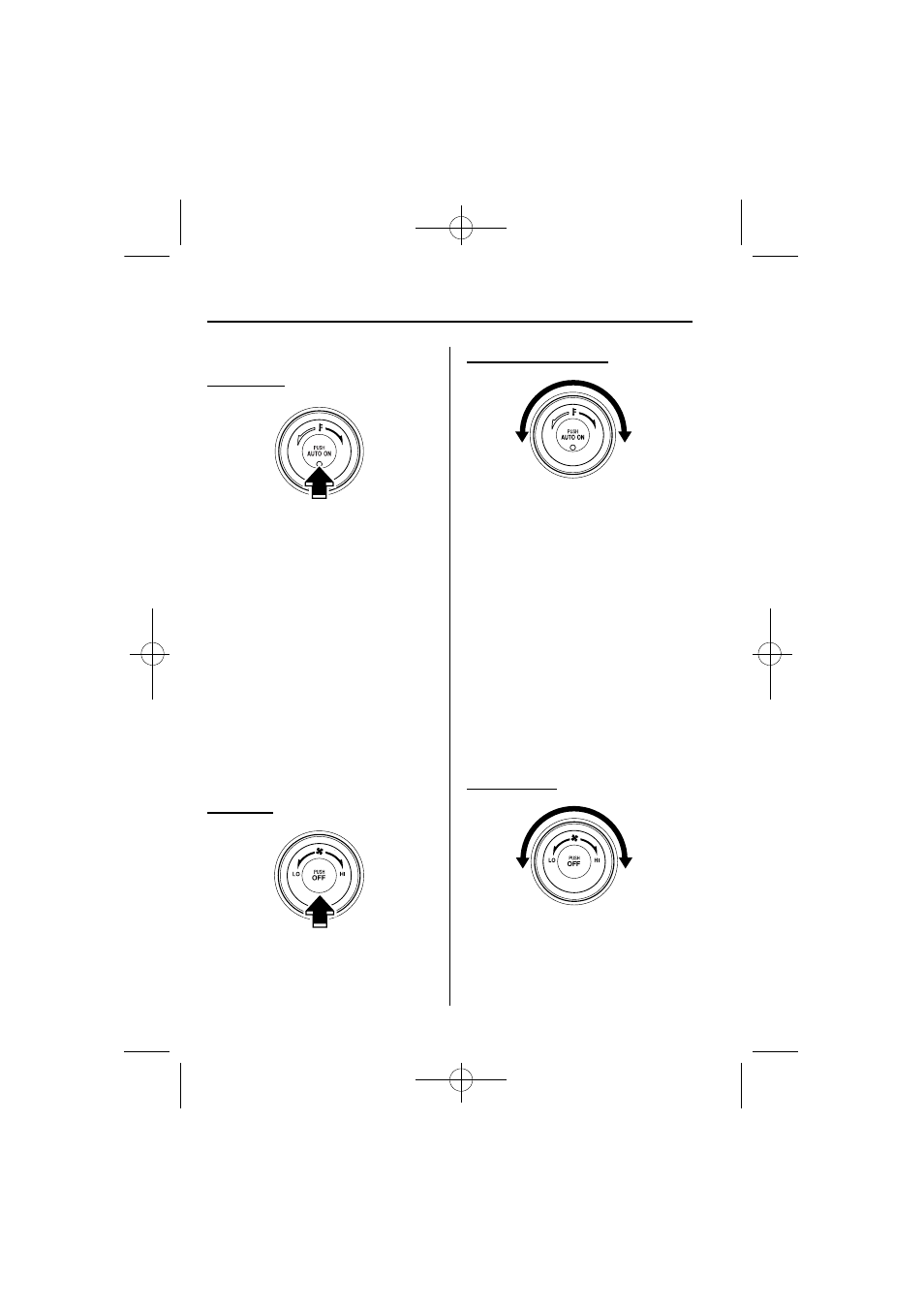

AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:
l Airflow temperature
l Amount of airflow
l Selection of airflow mode
l Outside/Recirculated air selection
l Air conditioner operation
NOTE
AUTO switch indicator light
l When on, it indicates AUTO operation, and
the system will function automatically.
l When off, it indicates the operation of other
switches such as the mode selector switch,
fan control dial and windshield defroster
switch. Other functions will continue to
operate automatically.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
l When the DUAL switch is off:
Turn the driver temperature control dial
to control the temperature.
l When the DUAL switch is on:
Turn the driver or front passenger
temperature control dial to control the
temperature.
NOTE
The system changes to the individual operation
mode (DUAL switch indicator light
illuminated) by turning the front passenger
temperature control dial even when the DUAL
switch is off, which allows individual control
of the set temperature for the driver and front
passenger.
Fan control dial
Slow Fast
The fan has seven speeds. The selected
speed will be displayed.
