7
ENGLISH
SECTION 2 - INSTALLATION

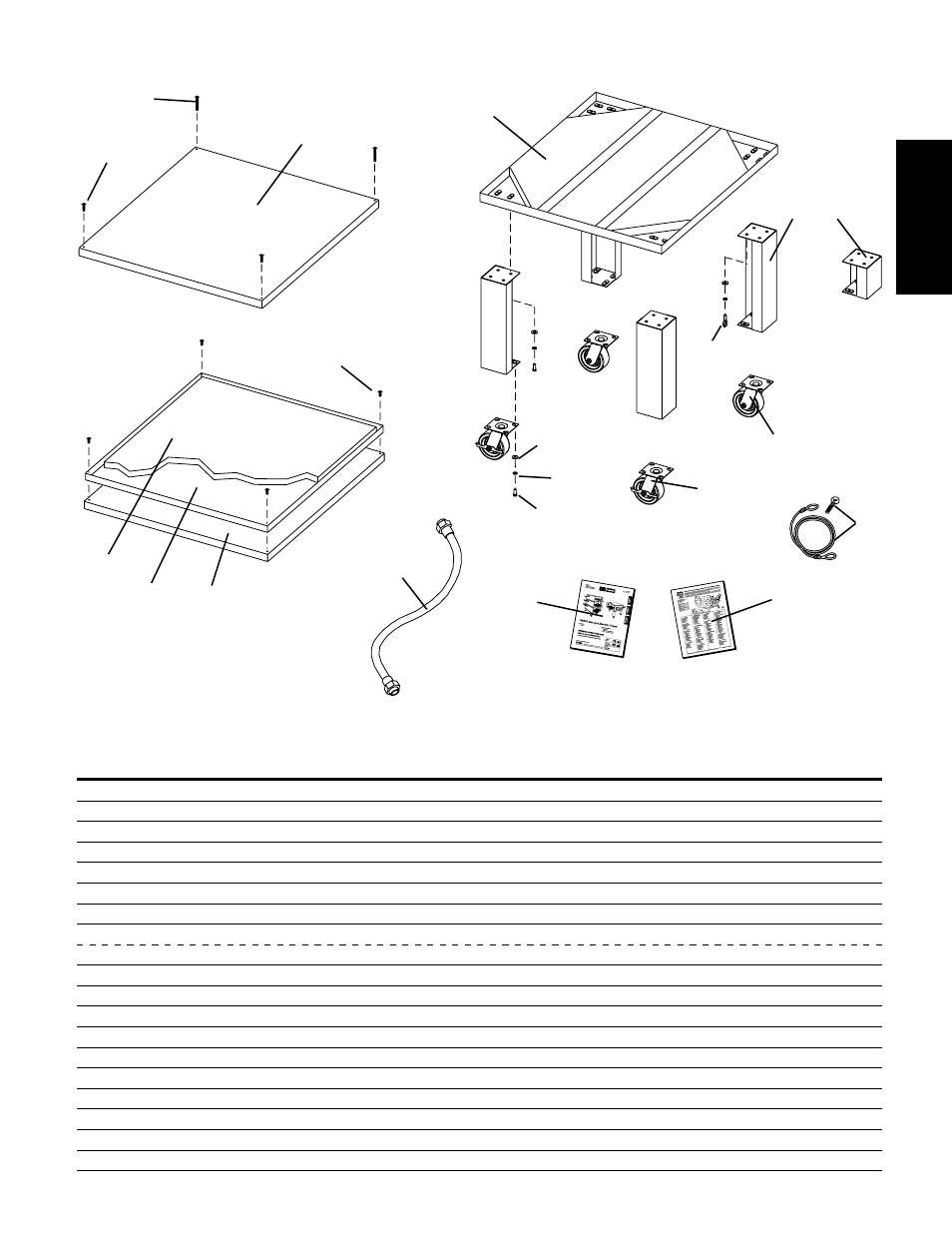

Figure 2-1 - Installation Kit
1
I. INSTALLATION KIT - see Figure 2-1
Qty. Qty. Qty.
Item Single Oven Double Oven Triple Oven Part No. Description
1 1 2 3 42882 Top panel
2 2 2 2 220352 Screw, pan head #10 x 1" (top panel - front)
3 2 2 2 3A80A8801 Screw, pan head #10 x 2" (top panel - rear)
4 -- 1 2 44837 Stacking panel
5 -- 1 2 44918 Insulation, stacking panel, pre-cut
6 -- 4 8 4111A8815 Screw, hex head #10-32 x 1/2" (stacking panels)
7 1 1 1 42893 Base pad
8a 4 4 -- 42890 17-1/2" (445mm) leg extension, for single and double ovens
8b -- -- 4 44799 6" (152mm) leg extension, for triple ovens
9 2 2 2 22290-0009 Caster, with flat plate and brake
10 2 2 2 22290-0010 Caster, with flat plate (no brake)
11 1 1 1 21392-0004 Eyebolt, 3/4"
12 31 31 31 220373 Hex bolt, 3/8"-16 x 1"
13 32 32 32 21416-0001 Flat washer, 3/8"
14 32 32 32 21422-0001 Lockwasher, 3/8"
15 1 1 1 22450-0228 Restraint cable assembly
16 1 2 3 22361-0001 Gas hose
16 1 1 1 44727 Owner's Operating Manual, PS536 Gas and Electric Ovens
17 1 1 1 1002040 Middleby Marshall Authorized Service Agency Listing
3
2
4 1
5
6
7
8a 8b
9
10
12
14
13
11
15
17 18
16
