12
ENGLISH
SECTION 2 - INSTALLATION

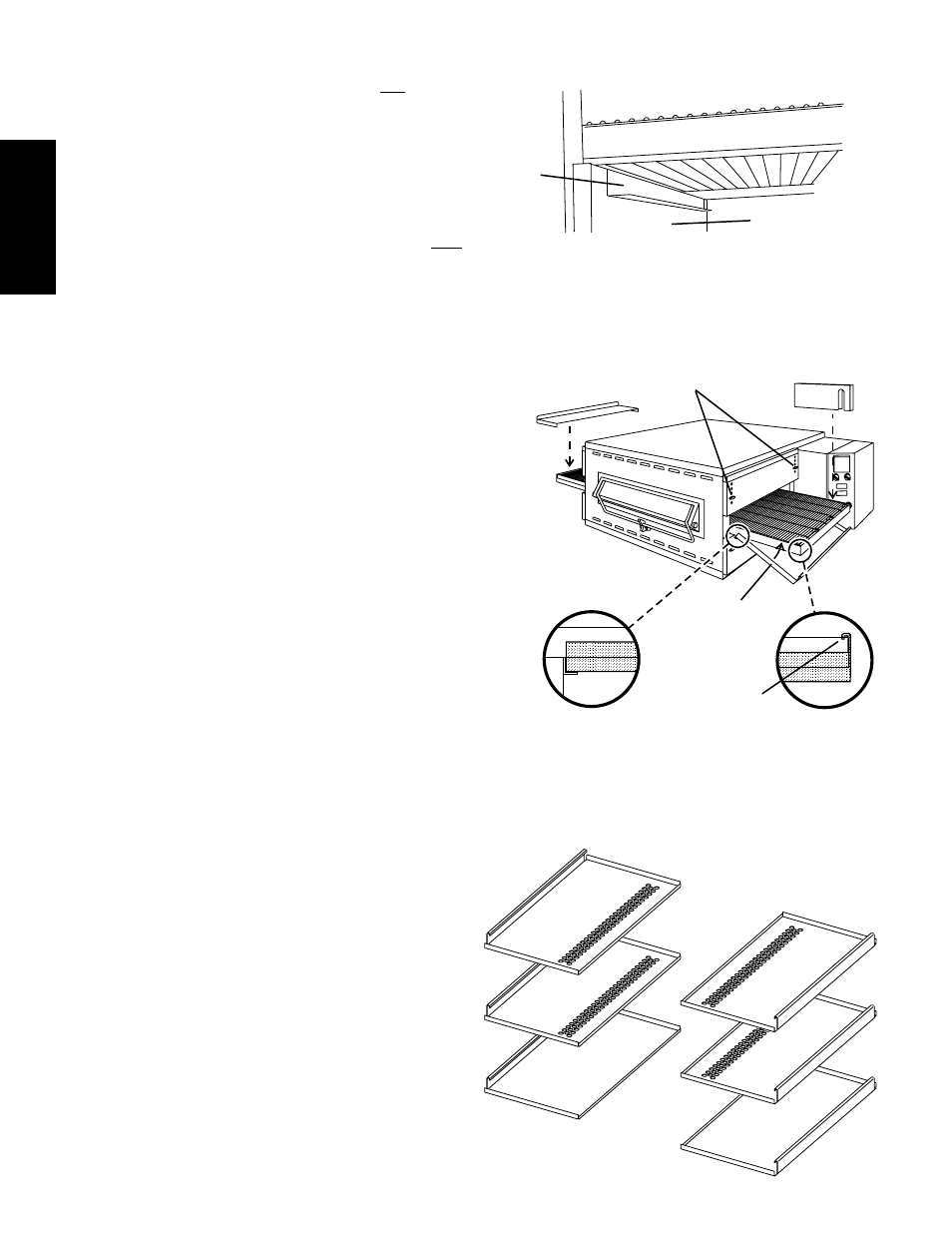

Figure 2-11 - Final assembly
Chain cover:
Place down over
conveyor sprocket
Figure 2-10 - Conveyor placement
Crumb tray
support
bracket
Figure 2-12 - Crumb trays
End plug
Crumb trays
WITH openings -
all upper ovens
Crumb trays
WITHOUT openings -
lower oven only
2. Hook outside
edge over
conveyor frame
Crumb trays (2):
Conveyor
exit tray:
Press down
over end of
conveyor
Wing screws
2 per end plug
1. Place inside
edge on support
bracket
6. Lift the conveyor and position it in the oven. The conveyor
can only be installed from the end of the oven with the drive
motor.
7. Continue moving the conveyor into the oven until the con-
veyor frame is positioned properly. The inside supports for
the crumb trays should rest firmly against the lower end
plugs, as shown in Figure 2-10.
8. When the conveyor is positioned properly, check for free-
dom of movement of the conveyor belt by pulling it for about
2-3 feet (60 to 90 cm) with your fingers. The conveyor must
move freely.
9. Install the drive chain between the conveyor drive sprocket
and the motor sprocket. To install the chain, it will be
necessary to lift the drive end of the conveyor slightly.
V. FINAL ASSEMBLY
1. Install the conveyor drive motor cover as shown in Figure
2-11.
2. Install the crumb trays as shown in Figure 2-11. First, place
the inside edge of each tray onto its support bracket. Then,
hook the outside edge of the tray over the end of the
conveyor frame.
Note that crumb trays for the lower (or a single) oven are
solid, while those for all upper ovens have perforated
openings, as shown in Figure 2-12.
3. Press the conveyor exit tray down over the edge of the
conveyor frame at the exit end of the oven. See Figure 2-11.
