BLDV7 Series Gas Fireplace
To Junction Box
In Fireplace
WHITE
BLACK WHITE
BLACK
BLACK
WHITE
GREEN
Connector
Pin To Contro l Box
{
{
Optional
Light
Optional
AUX
Blower (300w Max)
FP2684
BLOTSDVSC fan wiring
Blower (300w Max)

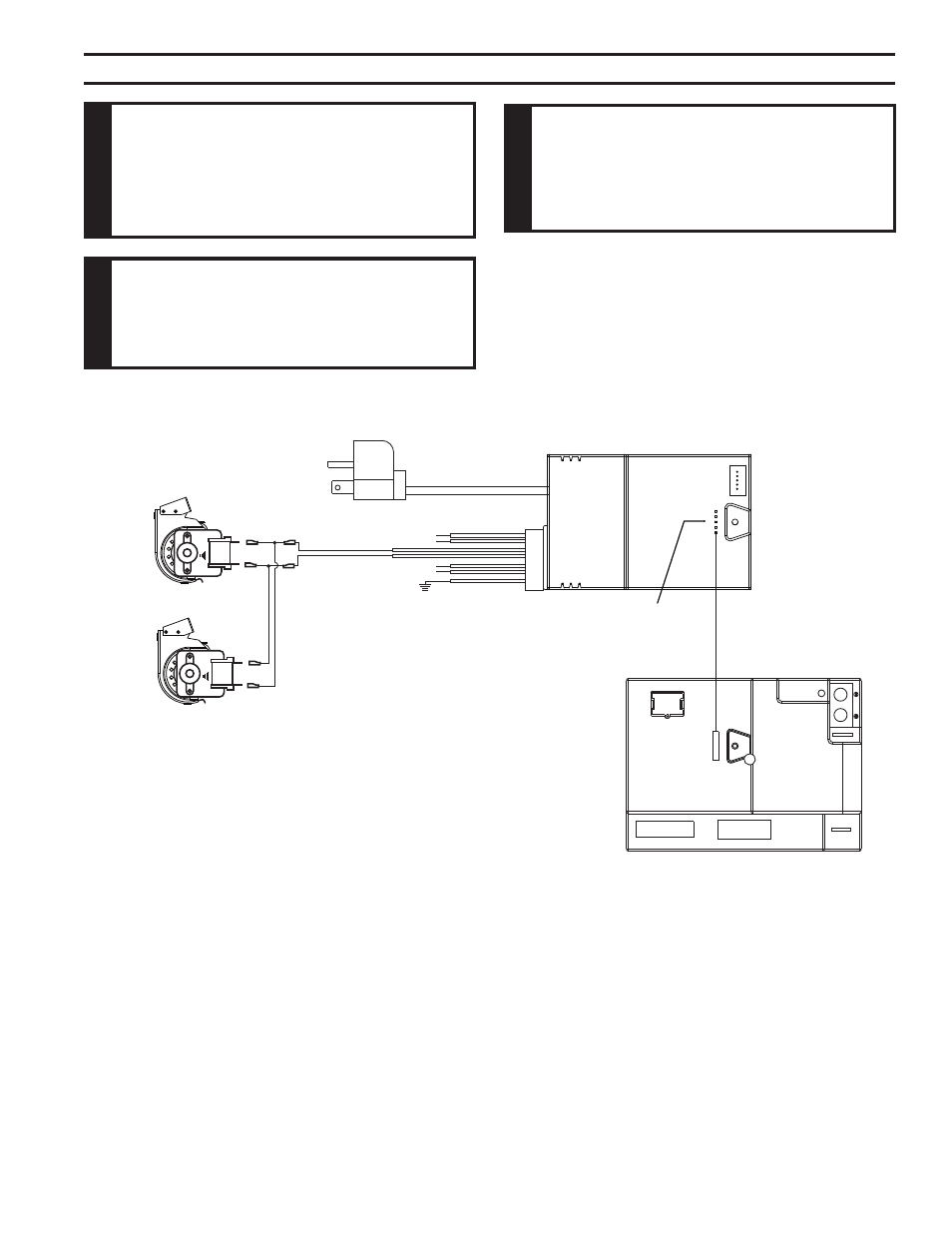

Figure 50 -
BLOTSDVSC Blower Wiring Diagram
FP684
Control Box
optional aC
Module
optIonaL Fan BLower SySteMS
note
the black and white wires on the aC box
wiring harness are marked ‘Blower’, ‘Light’
and ‘aux’. It is important to use the wires
marked ‘Blower’ or the control will not work
correctly.
w
arn
In
G
electrical connections should only be
performed by a qualified licensed electrician.
Main power supply must be turned off before
connecting the fan to the main electrical
power supply or performing service.
BLotSDVSC SIGnature CoMManD BLower
electrical Grounding Instructions: this
appliance is equipped with a three-prong
(grounding) plug for your protection against
shock hazard and should be plugged directly
into a properly grounded three-prong
receptacle.
w
arn
In
G
The BLOTSDVSC Blower Kit requires the SCSACM A/C
Module and the TSFSC remote to install and operate this
kit. Refer to blower instructions for installation.
