Chapter 6 - RouteFinder Monitor

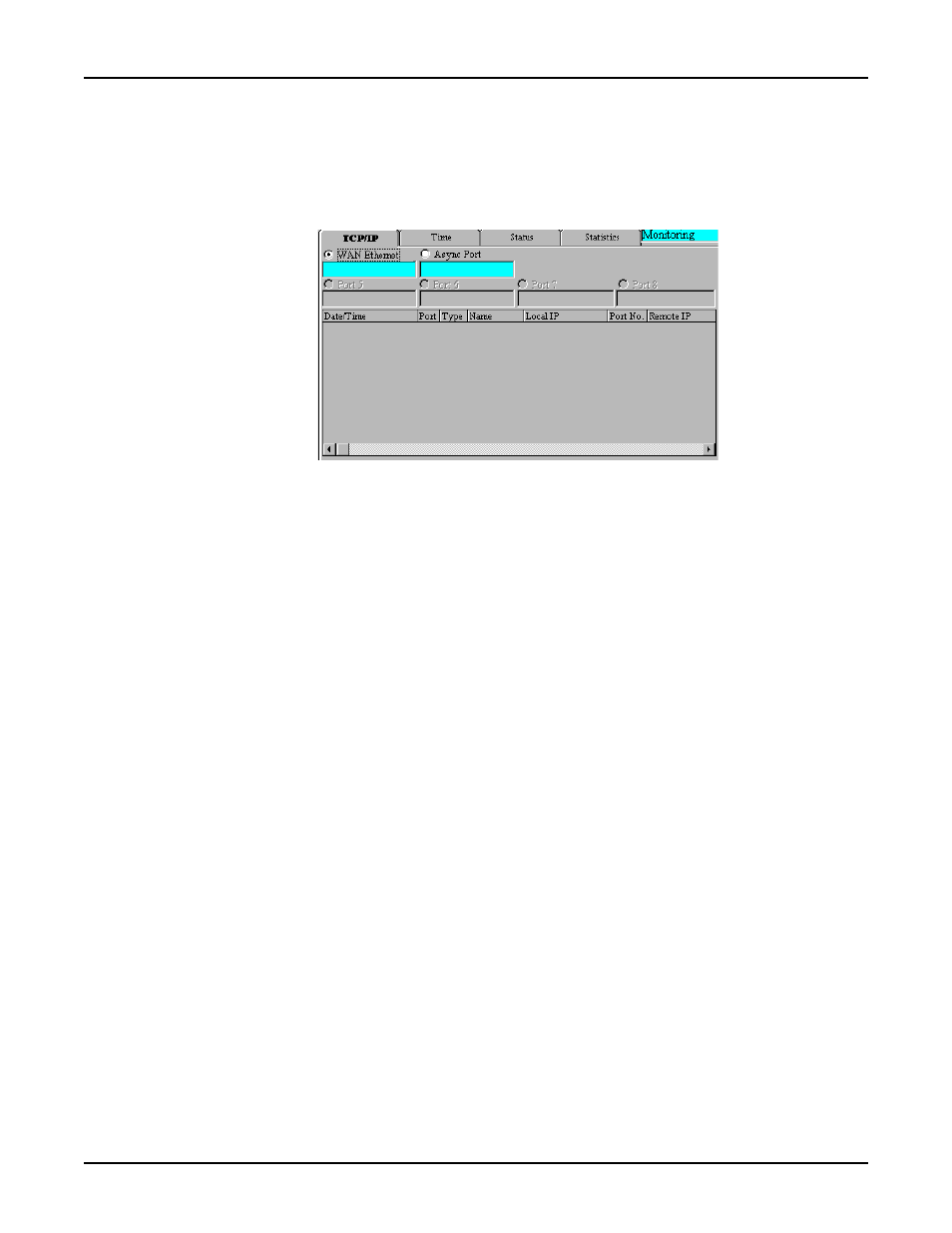

TCP/IP Tab

The TCP/IP tab displays all TCP/IP requests made by your network device. You may select to view
TCP/IP sessions for the

WAN Ethernet or the Async Port.

The

TCP/IP tab is the default tab displayed in the RouteFinder Monitor dialog box. If it is not

displayed, click the

TCP/IP tab.

Note: The TCP/IP sessions displays the history of the TCP/IP session through the selected port.
The TCP/IP information presented does not represent the current status of the TCP/IP session.

The TCP/IP tab displays the following information:

Date/Time:

Indicates the date the request was made.

Port:

Indicates the port you are viewing.

Type:

Displays the type of request being made.

Local IP:

Indicates which IP address you have requested information from.

Remote IP:

Indicates which IP address was requested.

Port Number:

Indicates which TCP/IP port was requested.

To Exit RouteFinder Monitor, close the window.
