Multi-Tech Systems RF500S - Manual (Page 40)

40
RouteFinder RF500S User Guide

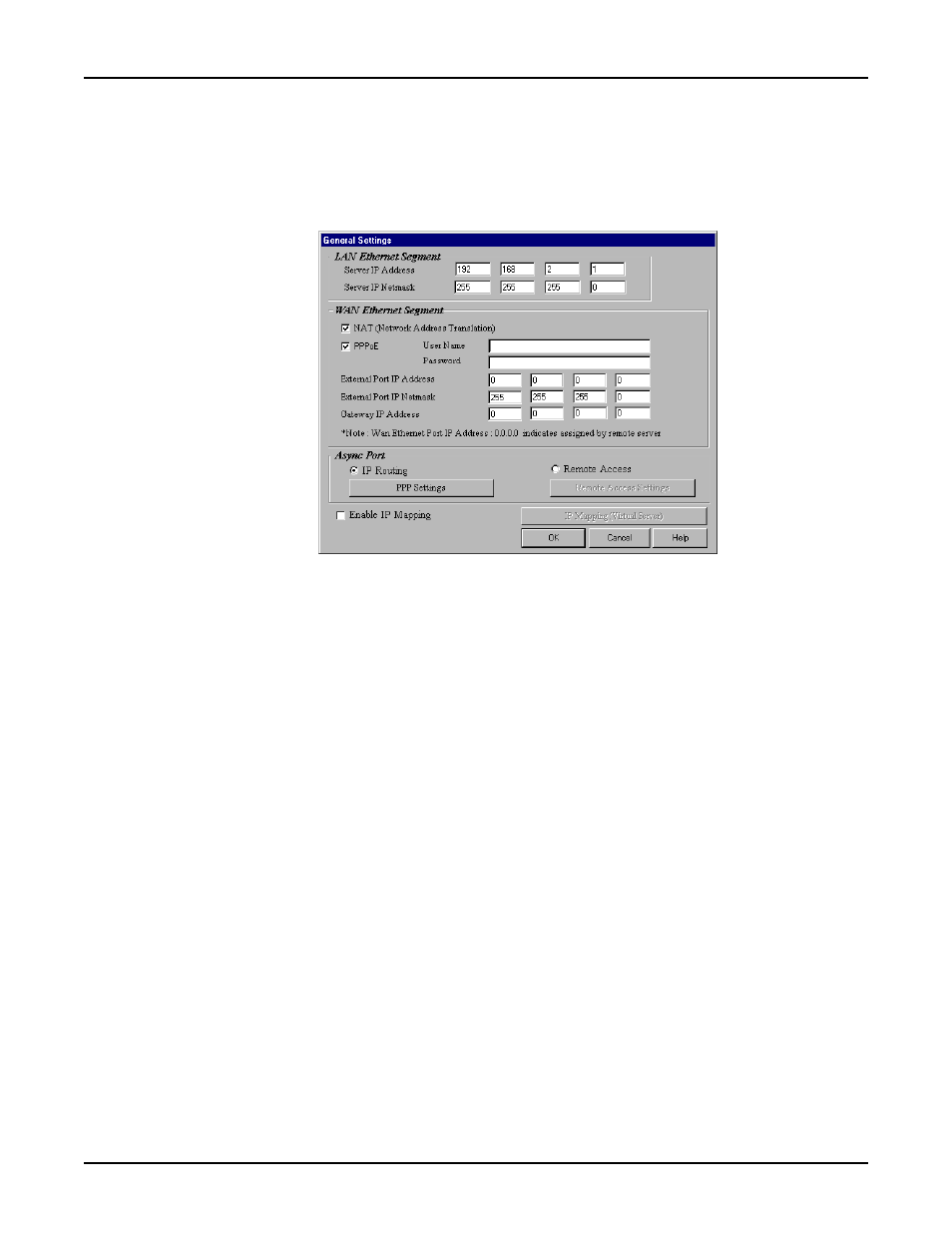

General Settings
After selecting your device from the Available Devices list, select General Settings to view or change
all of the major network settings for the RF500S including LAN and WAN Ethernet segment settings,
DNS information, IP Routing and Remote Access settings. Most of the settings on these screens
were entered in Setup Wizard; however, some important settings can be entered only in RouteFinder
Manager.
LAN Ethernet Segment
Server IP address:
This IP address is the internal LAN IP address of the RF500S. The address entered into the
Setup Wizard is displayed here (e.g., 192.168.2.1).
Server IP Netmask:
The RF500S subnet mask generally can be left at the default value of 255.255.255.0.
