T H E U N I N T E R R U P T I B L E P O W E R P R O V I D E R
Network Management Card – User Manual 34003991EN/GA - 16 -
•

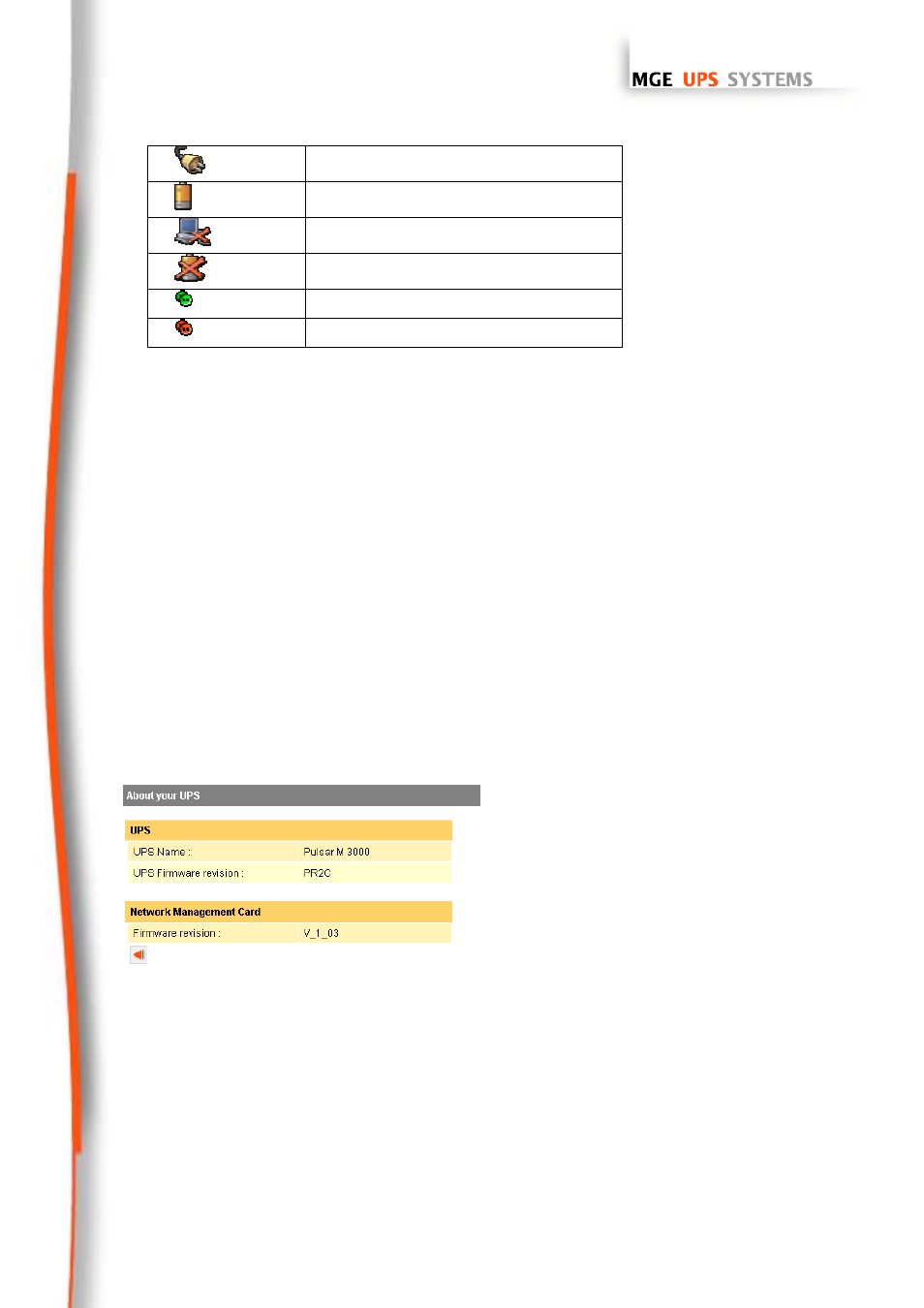

• Utility power present
•
• Battery operation
•
• Loss of communication with the UPS
•
• Battery fault
•
(green outlet)
• Outlet powered
•
(red outlet)
• Outlet not powered or not protected
"Communication": indicates the status of the communication between the card and the UPS
"Power source": indicates whether the power comes from the utility or from the UPS battery
"Batteries": indicates whether the battery is being charged, discharged, or is faulty
"Output load level": indicates the power percentage used at UPS output
"Master output": indicates if the UPS output is protected
"Controlled outlets": indicates if the controlled outlets (if available) are powered.
4.2.1.3 "Battery status" zone
Z "Bargraph": graph showing the remaining battery charge (in percent)
Z "Battery charge level": remaining battery charge (in percent)
Z "Remaining backup time": Estimation of the battery's maximum backup time remaining before UPS shutdown
Z "Last periodic test": Result of the last automatic battery test carried out by the UPS
Possible values are:
- OK: the test was completed correctly
– NOK: the battery needs to be checked
– Deactivated: the automatic battery test is not validated on the UPS
The "About your UPS" zone provides information on the UPS and the card, in particular, the model range and software version.
