3 Configuration
3.1.1 Configure IP parameters
Once the card has started:
Connect one end of the cable (34003918) to the Service port.
If the environment sensor was previously connected, the card must be restarted in order to access the configuration menu.
Connect the other end of the cable to the COM port (IOIOI) of a PC.
Launch a HyperTerminal™ type emulator with the following configuration:
Speed: 9600
Data bits: 8
Parity: none
Stop bits: 1
Flow control: none
"Locally reproduce the characters entered" option: deactivated.

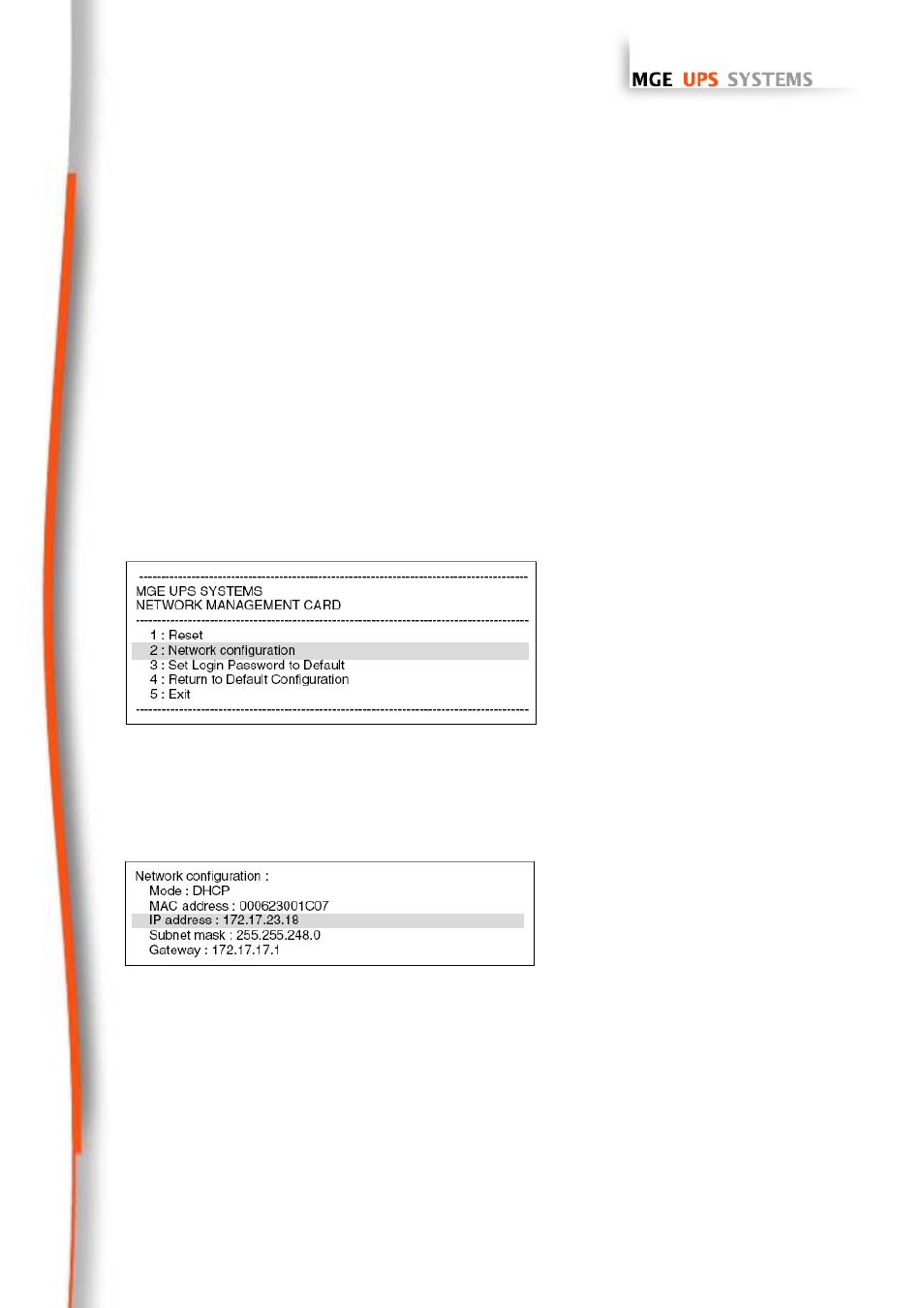

Enter MGEUPS or mgeups. The main menu is displayed:
3.1.1.1 Your network is equipped with a DHCP server
The card is configured by default with this service activated.
The card automatically collects IP parameters.
To know the IP parameters, type 2, then type 1. The menu is displayed:
Note the IP address.
To exit, enter 3 then 7. The card is operational.
Note: As long as the card is not connected to the network, it continuously attempts to make connection. Once the connection has been
established, the operational mode presented in the table above becomes effective.
3.1.1.2 Your network is not equipped with a DHCP server
In the main menu enter 2, then 2 again.
Follow the instructions and enter the static IP parameters.
