6
CFX Vent Free Fireplace System
20301726
FIREPLACE & SYSTEM DIMENSIONS

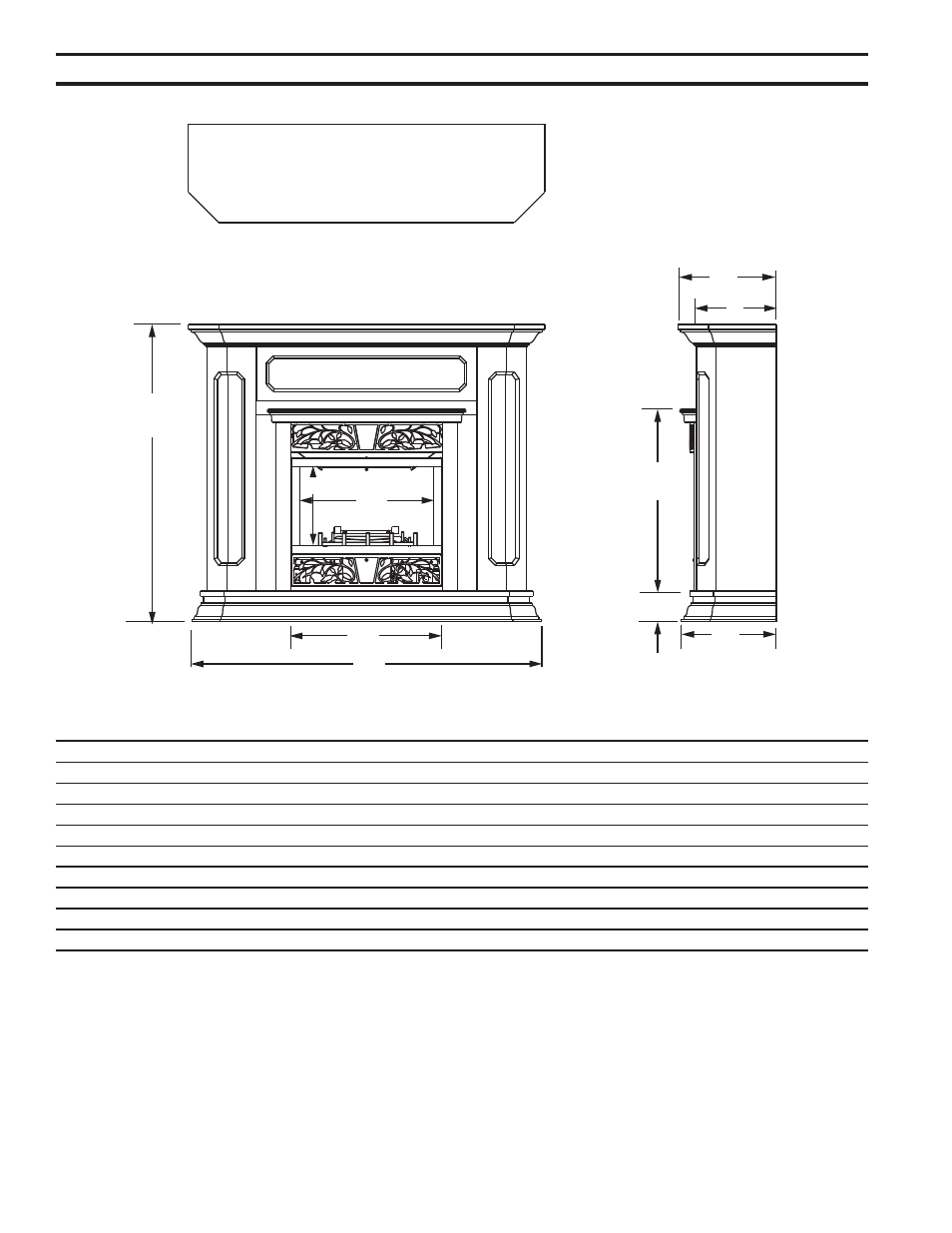

Figure 2 -
Firebox Dimensions
E
D
C
A
B
F
G
H
I
1726
CFX Barrington dims
H
Ref. CFX24 CFX32
A 11C\v" (299 mm) 15Z\v" (387 mm)
B 19C\v" (502 mm) 26" (660 mm)
C 26M\," (683 mm) 33" (838 mm)
D 52Z\x" (1334 mm) 61>\zn" (1564 mm)
E 44' (1118 mm) 50C\v" (1289 mm)
F 26B\," (676 mm) 30B\," (778 mm)
G 4Z\x" (114 mm) 4" (102 mm)
H 15" (381 mm) 18Z\v" (464 mm)
I 11Z\x" (292 mm) 14M\," (378 mm)
