LOG PLACEMENT
Before you begin — This unit is supplied with a set of three ceramic fiber logs. Do not handle these
logs with your bare hands. Always wear gloves to prevent skin irritation from ceramic fibers. After
handling logs, wash your hands gently with soap and water to remove any traces of fibers.
PROPER INSTALLATION SEQUENCE
(CFX24)

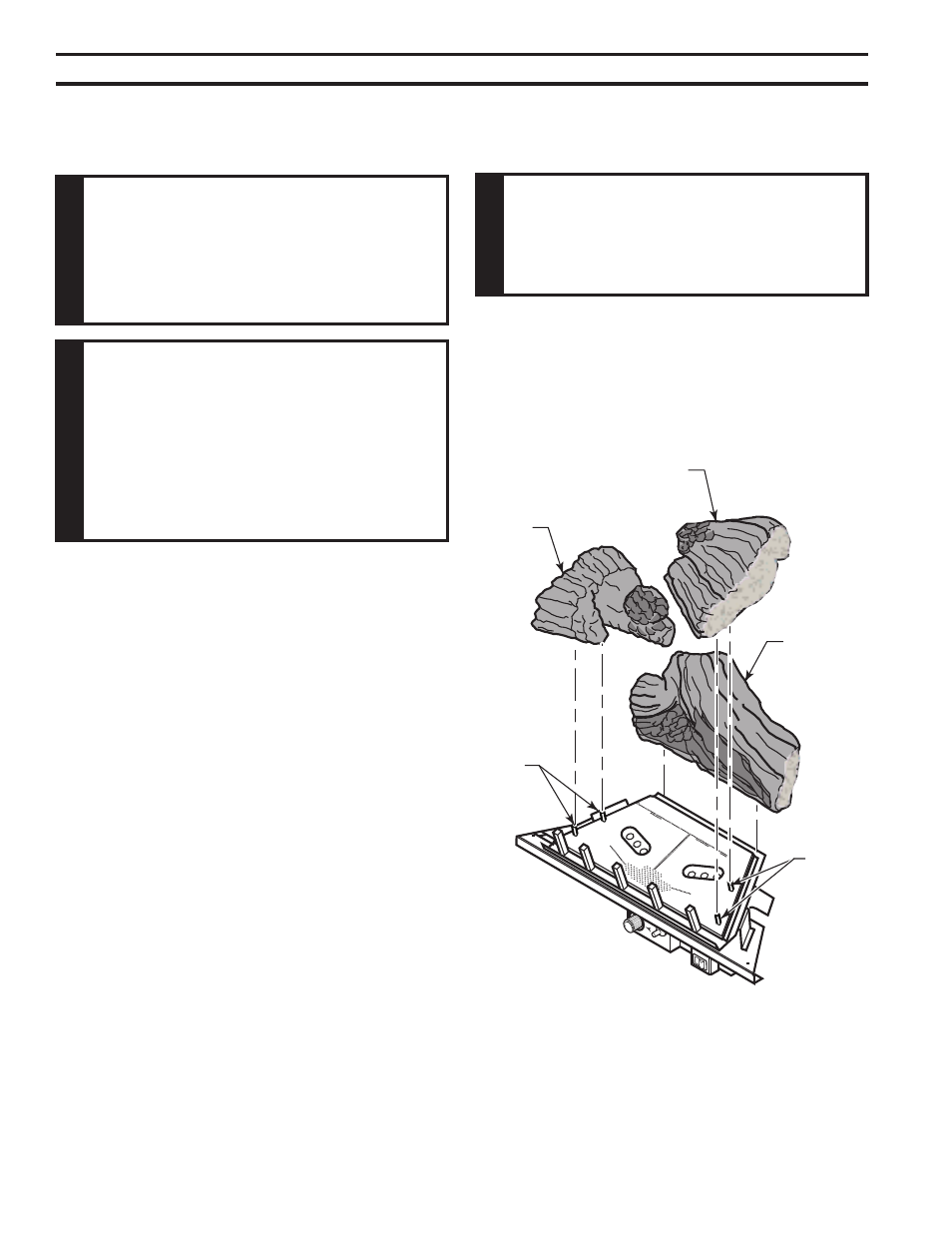

Figure 18
1. Install the rear log (#3) on back of burner.
2. Install the right log (#1) on burner pins on right side of
burner.
3. Install the left log (#2) on burner pins on left side of
burner.
LG588
CFX24 logs
Figure 18 -
Log Placement CFX24
Rear Log
#3
Left Log
#2
Right Log #1
Burner Pins
Burner
Pins
LG588
W
ARNING
The positioning of the logs is critical to
the safe and clean operation of this heater.
Sooting and other problems may result if the
logs are not properly and firmly positioned
in the appliance. Never add additional logs
or embellishments such as pine cones,
vermiculite or rock wool to the heater.
W
ARNING
Failure to position the parts in accordance
with these diagrams or failure to use only
parts specifically approved with this heater
may result in property damage or personal
injury.
CAUTION
DO NOT sprinkle volcanic rock on the logs
or around the pilot or the main burner. This
may cause sooting. Only place volcanic
rock on the floor of the fireplace.
During initial operation of the new heater,
burning logs will give off a paper burning
smell and orange flames will be present.
Simply open the windows for a few hours
to vent the odor.
