FIREPLACE INSTALLATION
FIREBOX TO MANTEL INSTALLATION
1. Slide fireplace into mantel.
2. Use the two (2) 'L' brackets provided to secure the fireplace to the mantel. Figure 9
3. When the fireplace is in the proper position, centered in mantel opening, remove the control
panel door and secure fireplace through holes provided in base to the floor of the mantel
using screws provided. Figure 10
FP2751
Mantel L brackets
'L'
Brackets
'L' Brackets
FP2751

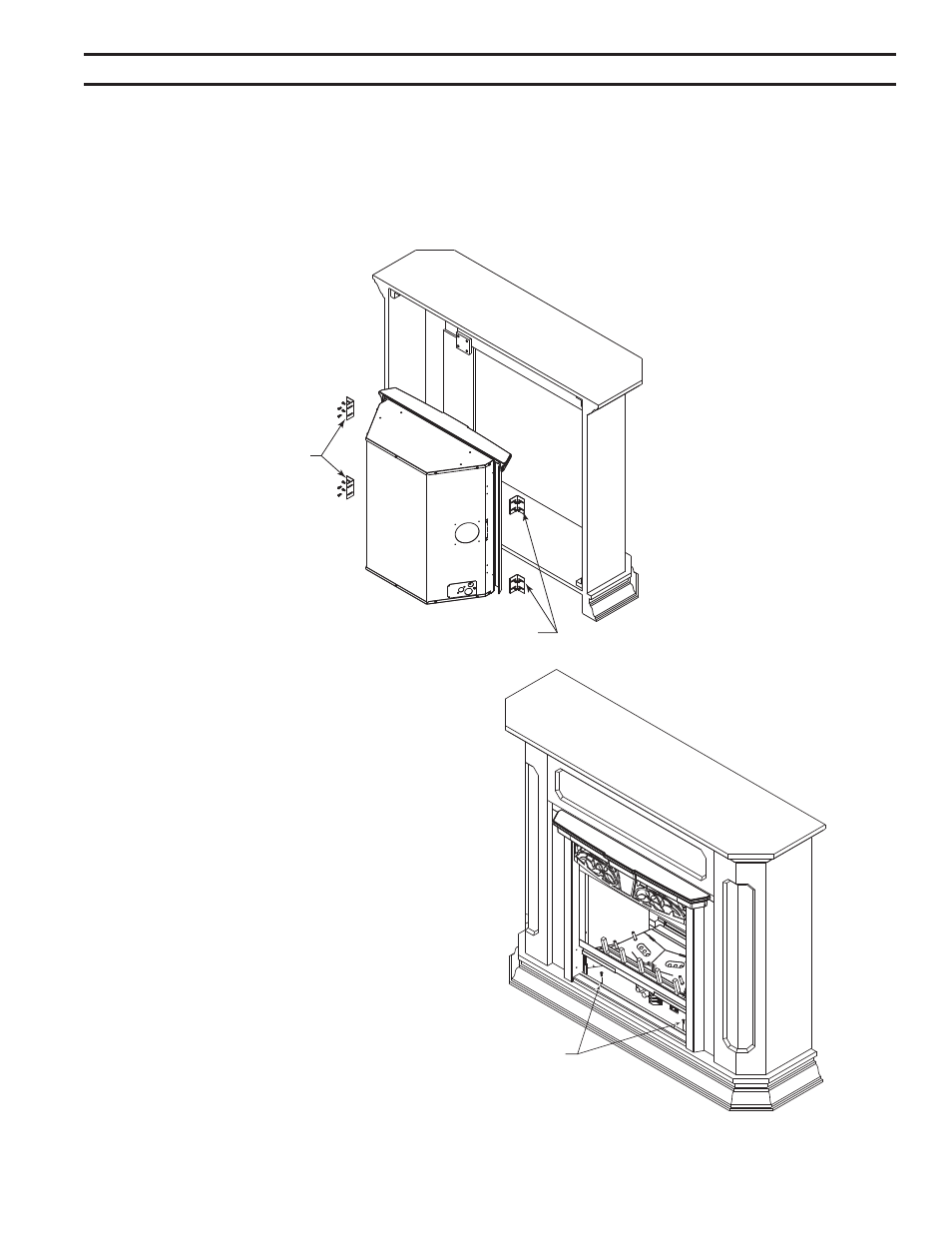

Figure 9 -
Secure Fireplace to Mantel with 'L' Brackets
FP2752
Secure fireplace to mantel
Screws
FP2752
Figure 10 -
Secure Fireplace to Mantel through Base
