5
CFX Vent Free Fireplace System
20301726
PRODUCT FEATURES & SPECIFICATIONS
OPERATION
This unvented gas heater requires no outside venting and
burns cleanly with high heating efficiency.
This zero-clearance unvented gas heater can be installed
against any wall that is accessible to a gas line.
FP2750
CFX controls
Piezo Ignition
Control Knob

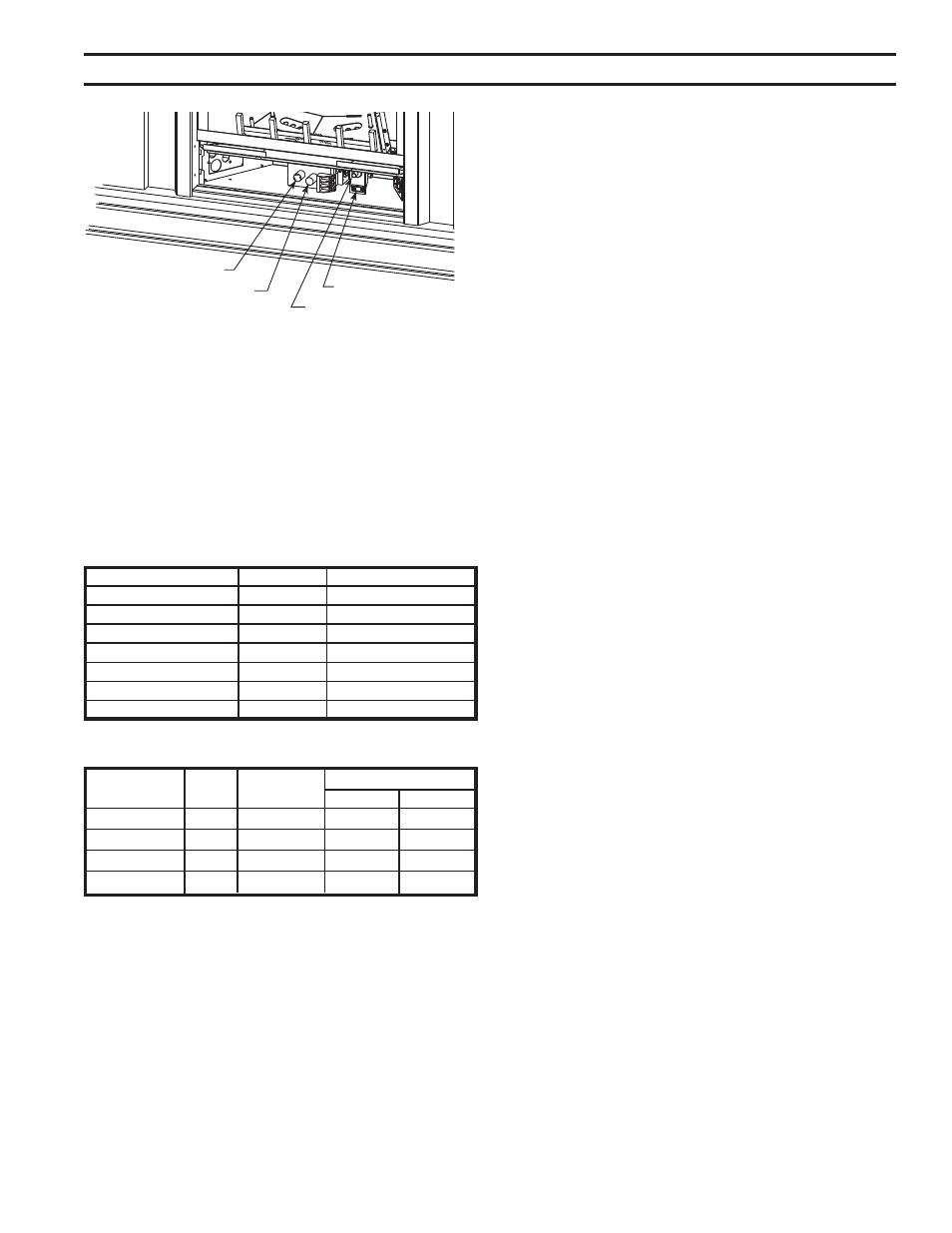

Figure 1 -
Unvented Gas Heater
(Control Access Door Shown Open)
On/Off Switch
HI/LO Control Knob
FP2750
GAS PRESSURES
Control Fuel Millivolt
Regulator Pressure Nat. 3.5” w.c.
Pilot Regulator Nat. 3.5” w.c.
Max. Inlet Pressure Nat. 10.5” w.c.
Min. Inlet Pressure Nat. 5.0” w.c.
Regulator Pressure LP 10.0” w.c.
Max. Inlet Pressure LP 13.0” w.c.
Min. Inlet Pressure LP 11.0” w.c.
Input BTU/hr
Model Fuel Control Max. Min.
CFX24NV Nat. Millivolt 22,000 17,000
CFX24PV LP Millivolt 22,000 17,000
CFX32NV Nat. Millivolt 26,000 20,000
CFX32PV LP Millivolt 26,000 20,000
GAS SPECIFICATIONS
NOTE: For LP models an external regulator is required
to reduce supply pressure to a maximum of 13" w.c.
IGNITION CONTROLS
Piezo ignitor allows ignition of the pilot without the use of
matches or batteries.
Milli-Volt control has four (4) positions:
OFF - All gas to the gas logs is shut off at the
valve.
IGN - Valve position to light/maintain a stand-
ing pilot.
ON - Valve position to turn ON/OFF log set
with remote switch/thermostat.
LOW/HI - Variable position to control flame height
(heat output). Both front and rear burn-
ers are in operation to provide realistic
glow and yellow flame.
PILOT
The gas log heater is fitted with a specially designed safety
pilot light which senses the amount of oxygen available in
the room and shuts the gas log heater off if the oxygen level
begins to drop below a satisfactory level. The pilot can only
be relit when adequate fresh air is available.
THERMAL GENERATOR
The milli-volt gas log pilot is fitted with a milli-volt generator
to provide power for remote activation.
