install firebrick
GENERAL INSTALLATION INFORMATION
INSTALL OPTIONAL FIREBRICK PANELS
1. Remove optional firebrick panels from packaging. Check to see that you have the following:
• Firebrick panels, 3
• Retainer brackets, 2
• B lack screws, 2
If any part or parts are missing, contact dealer where you bought fireplace.
2. Turn off fireplace and allow to cool.
3. Remove fireplace screen (Refer to Page 11, Figure 6) and logs.
4. Place rear firebrick panel on back wall of firebox. Set bottom of panel behind the bracket tabs of the
grate. Figure 11
5. Place one of the side firebrick panels in cabinet. Line up the hole in the retainer clip with the hole inside
the firebox. Using Phillips screwdriver, attach the retainer bracket to inside of firebox. Figure 12
6. Repeat step five for the other firebrick side panel.

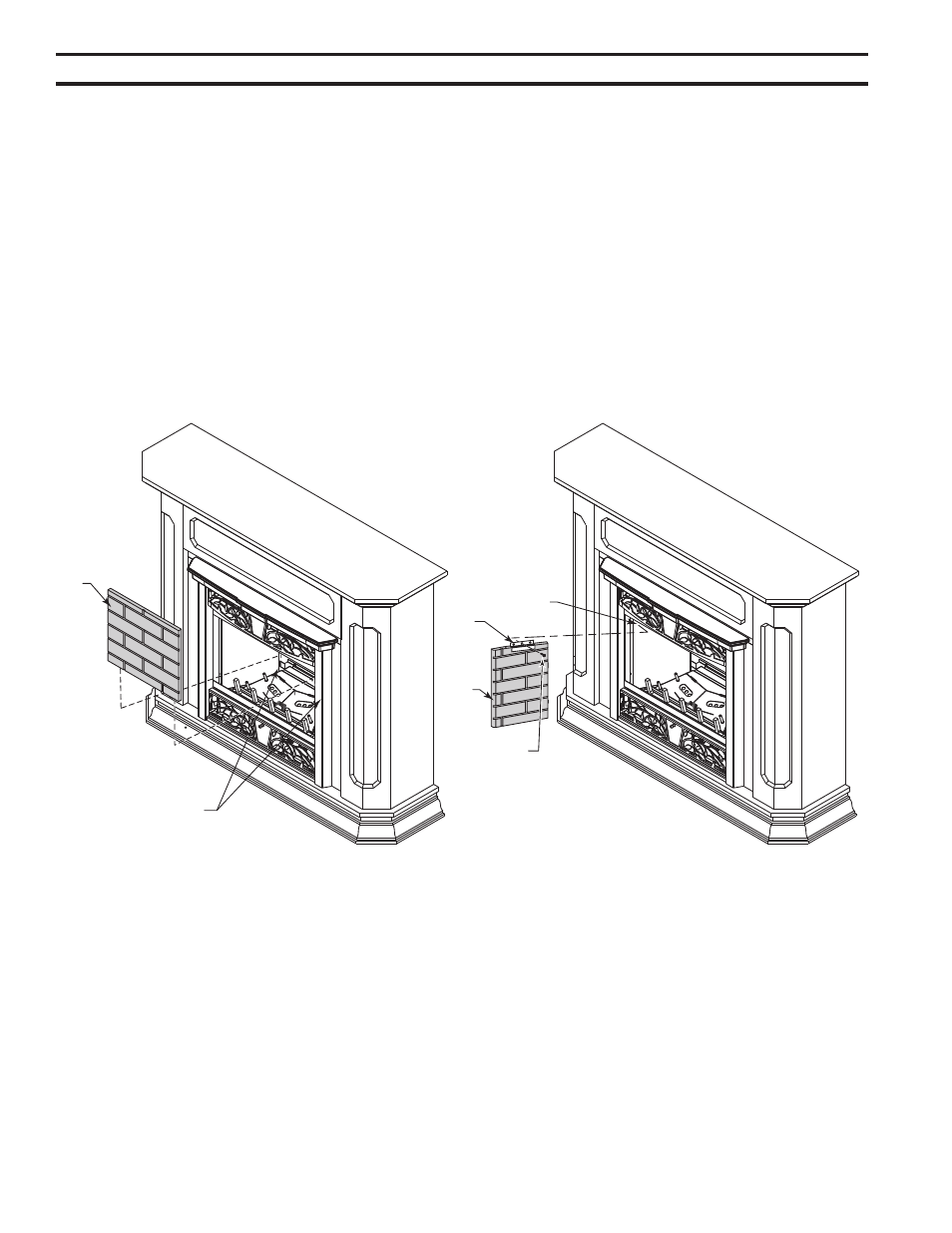

Figure 11 -
Install Back Firebrick Panel Figure 12 -
Install Side Firebrick Panel
Bracket Tabs
Rear Firebrick
Panel
Retainer
Clip
Side
Firebrick
Panel
Screw
Hole
