SECTION 2 - INSTALLATION

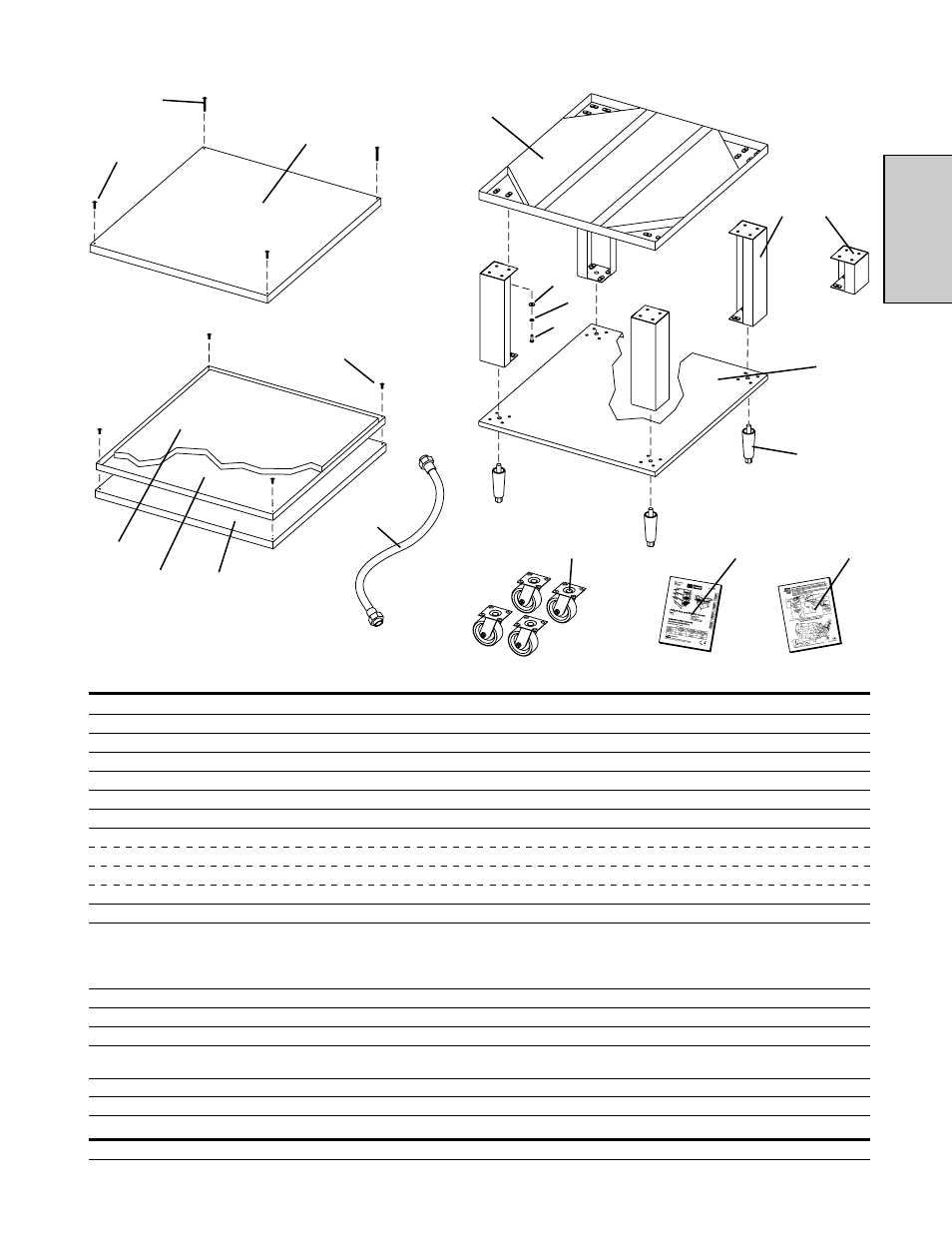

Figure 2-1 - Installation Kit
1
I. INSTALLATION KIT - see Figure 2-1
Qty. Qty. Qty.
Item Single Oven Double Oven Triple Oven Part No. Description
1 1 2 3 42882 Top panel
2 2 2 2 220352 Screw, pan head #10 x 1" (top panel - front)
3 2 2 2 3A80A8801 Screw, pan head #10 x 2" (top panel - rear)
4 -- 1 2 44837 Stacking panel
5 -- 1 2 44918 Insulation, stacking panel, pre-cut
6 -- 4 8 4111A8815 Screw, hex head #10-32 x 1/2" (stacking panels)
7 1 1 1 42893 Base pad
8a 4 4 -- 42890 445mm leg extension (standard), for single and double ovens
8b 4 -- -- 45329 597mm leg extension (custom), for single ovens
8c 4 4 -- 45360 521mm leg extension (custom), for single and double ovens
8b -- -- 4 44799 152mm leg extension (standard), for triple ovens
9 4 4 4 22450-0028 Leg, adjustable, 152mm
10 4 4 4 22290-0010 Caster, with flat plate (no brake)
NOTE: These casters are provided to allow the oven to be more easily
moved to the installation location, and are NOT suitable for use as part
of the oven installation. Refer to the notice on the preceding page.
11 32 32 32 220373 Hex bolt, 3/8"-16 x 1"
12 32 32 32 21416-0001 Flat washer, 3/8"
13 32 32 32 21422-0001 Lockwasher, 3/8"
14 1 1 1 46525 Owner's Operating Manual, PS536 Gas and Electric Ovens (European
Export models), English/German/French/Spanish
15 1 1 1 1002040 Middleby Marshall Authorized Service Agency Listing
16 1 2 3 22361-0001 Gas hose (gas ovens only)
Optional components (available separately):
17 1 1 1 46393 Lower shelf
3
2
4 1
5
6
7
8a 8b
9
11
13
12
10
16
14
15
17
