29
ENGLISH
D. Split Belt Disassembly and Cleaning
For split belt ovens ONLY, disassemble, clean and lubricate the
conveyor shaft components as described in this Section.
PS536 ovens may be equipped with either of two different
conveyor designs. Both designs are available in split belt
configurations. Refer to Figures 4-4 and 4-5 to determine which
conveyor was shipped with your oven.

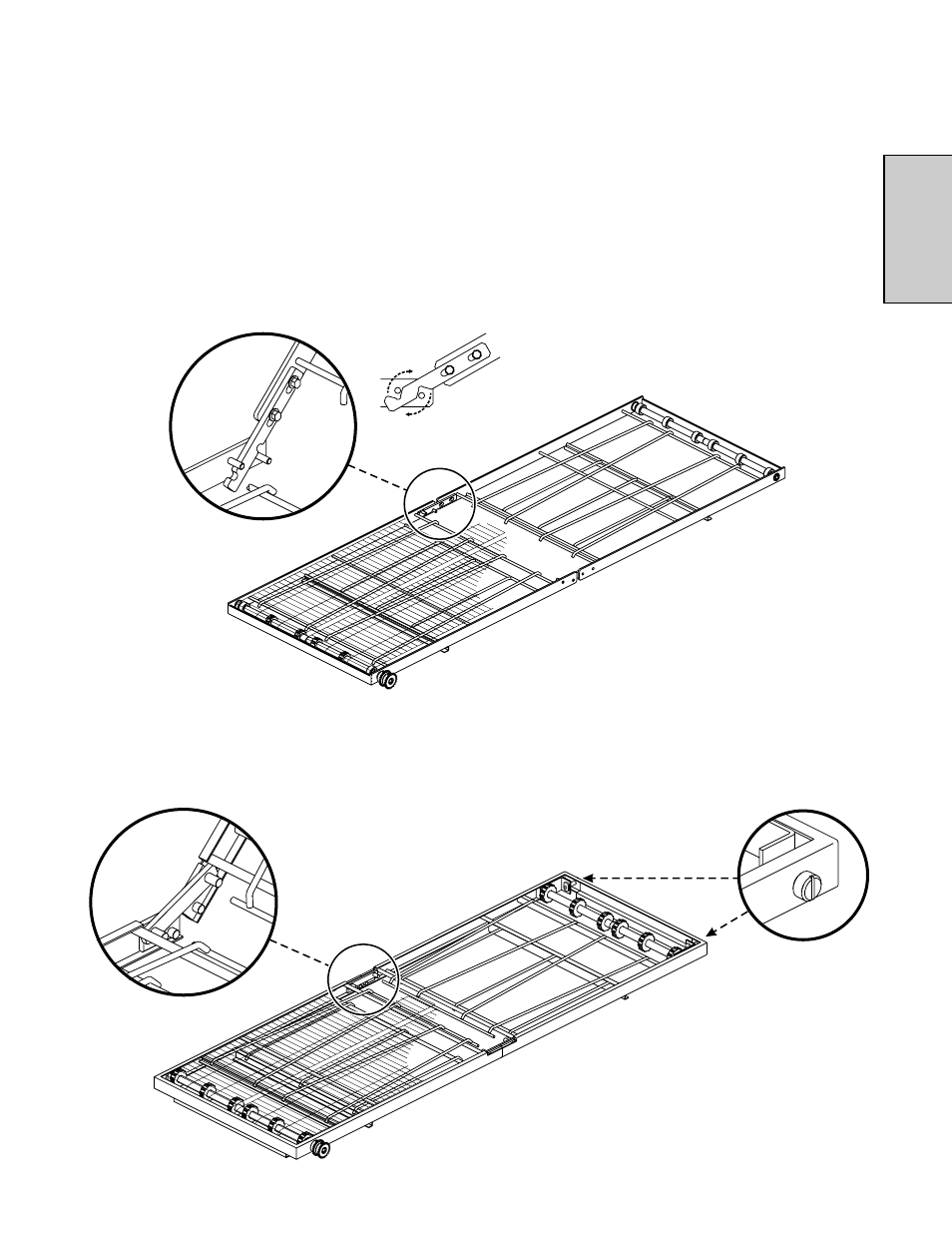

Figure 4-4 - Identifying the Type 1 split belt conveyor
Figure 4-5 - Identifying the Type 2 split belt conveyor
Tensioning screws
(2 per side)
Pins on frame
fit into slots
on bracket
Tension adjustment
screws (2) on idler
end of conveyor
Conveyor frame made of
rectangular steel sections
Conveyor frame made of
"C"-section stainless steel
Hinge plates at
center of conveyor
frame
• If your oven uses the Type 1 Conveyor, continue on to Step
1 in this section, "Type 1 Conveyor Split Belt Cleaning."
• If your oven uses the Type 2 Conveyor, skip ahead to Step
2 in this section, "Type 2 Conveyor Split Belt Cleaning."
SECTION 4 - MAINTENANCE
